Crash Safety Module

The crash safety module in US vehicles is identical to vehicles for the rest of the world. It is adapted to the law and country-specific requirements by programming and coding.

With ACSM3 Crash Safety Module is now integrated into the PT-CAN.

There are no sensors located in the crash safety module.

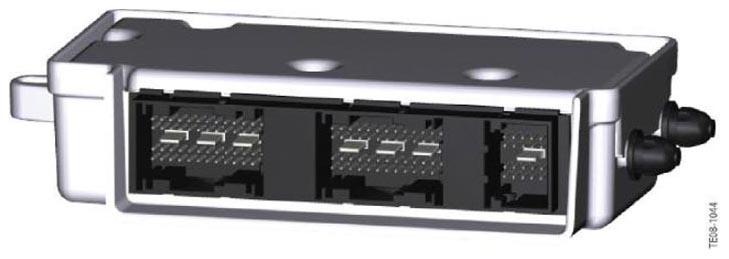

Fig 1: Identifying Crash Safety Module

Courtesy of BMW OF NORTH AMERICA, INC.

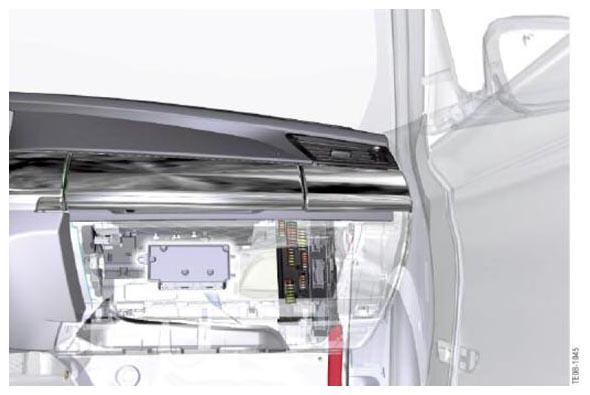

The crash safety module has a new installation location for the F01/F02 is behind the glove compartment.

Fig 2: Crash Safety Module Installing Location

Courtesy of BMW OF NORTH AMERICA, INC.
