24 34... Notes on mechatronics

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completing work:

Load specific data status with the BMW diagnosis system
Check TRANSMISSION OIL LEVEL
Use only approved transmission oil: ATF oil Shell L12108 ; BMW part number 83 22 2 152 426 ; 20 liters

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

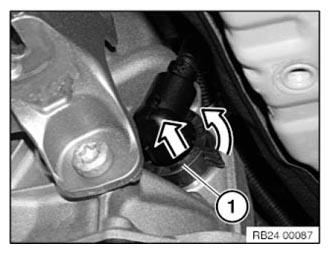

Unscrew connector (1) and disconnect.

Fig 1: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

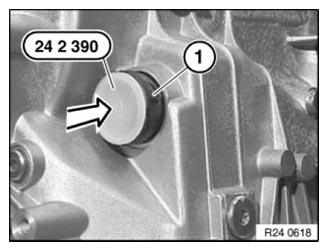

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
