23... Universal BMW transmission take-up: Notes

NOTE:

• The universal transmission bracket is introduced for the E60 AWD
• Suitable for manual and automatic transmissions

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

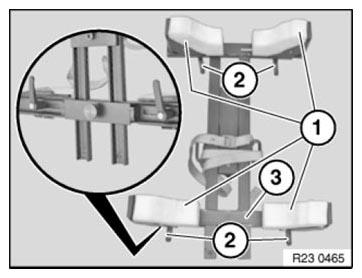

Fig 1: Identifying Rear Supports, Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
