11 00 050 Removing and installing engine (S65)

Special tools required:

11 0 000
13 5 280
17 2 050

Necessary preliminary tasks:

Engine hood/bonnet in assembly position.
Drain ENGINE OIL .
Remove SUCTION FILTER HOUSING .
Remove INTAKE AIR MANIFOLD .
Remove underbody protection . See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION at front and rear.
Remove TRANSMISSION (Important observe repair instructions).
Remove ELECTRIC FAN .
Remove RADIATOR with coolant hoses.
Drain coolant.
Remove EXPANSION TANK with coolant hose.
Draw off A/C SYSTEM .
Remove all lines . See 64 53 670 REPLACING LINE FROM COMPRESSOR TO EVAPORATOR (S85) , 64 53 660 REPLACING LINE FROM CONDENSER TO EVAPORATOR (S65) or 64 53 642 REPLACING LINE FROM COMPRESSOR TO CONDENSER (S65) from A/C compressor.
Remove SECONDARY-AIR PUMP .
Detach B+ LEAD in engine compartment.
Detach VACUUM HOSE from brake booster.
Release SUSPENSION CROSS-BRACE in engine compartment.
Release grounding strap on engine support arm.

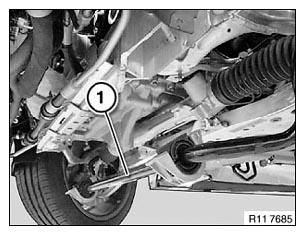

Release stabilizer (1) on front axle carrier at front.

Allow stabilizer (1) to hang loose.

Fig 1: Identifying Front Axle Stabilizer

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete STEERING SPINDLE .

Remove heat shield.

Release screws (1).

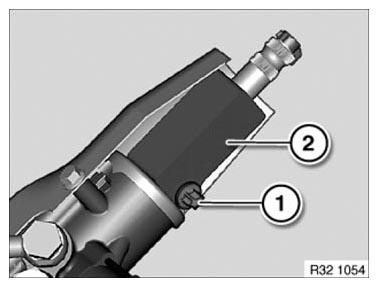

Detach steering spindle extension (2).

Tightening torque: 32 31 1AZ .

Fig 2: Identifying Steering Spindle Extension Screw

Courtesy of BMW OF NORTH AMERICA, INC.

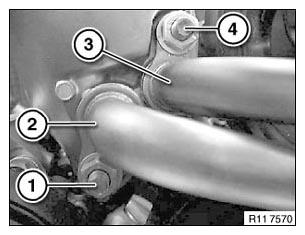

Release nuts (1 and 4).

Detach oil lines (2 and 3).

Recycling:

Have a cloth ready to catch a residual amount of engine oil.

Fig 3: Identifying Oil Lines Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Secure oil lines (1) with a cable tie (2) to front panel.

Fig 4: Securing Oil Lines Using Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

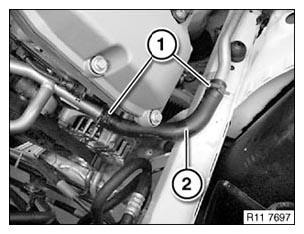

Unclip heater hose (1) and set down with heating valve on engine.

Disconnect both hoses (2) from secondary-air valves.

Fig 5: Identifying Heater Hose

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to steering gear and oil sump.

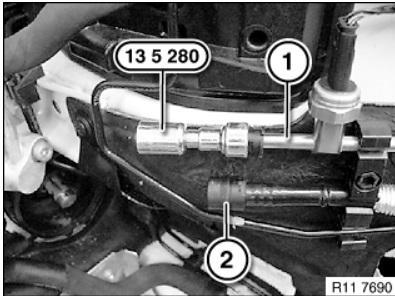

Disconnect fuel line (1) and lock with special tool 13 5 280.

Disconnect flushing line (2).

Fig 6: Disconnecting Fuel Line

Courtesy of BMW OF NORTH AMERICA, INC.

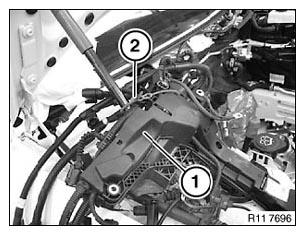

Unfasten engine wiring harness (1) on engine completely.

Secure engine wiring harness (1) with a cable tie (2) to engine hood/bonnet damper.

Fig 7: Securing Engine Wiring Harness Using Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Release both clamps (1) with special tool 17 2 050.

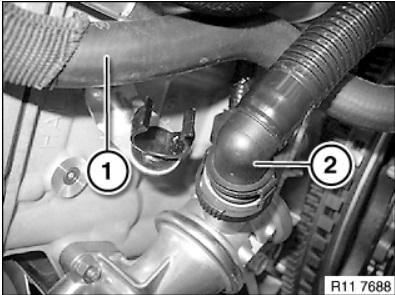

Remove coolant hose (2).

Fig 8: Identifying Coolant Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not release any hydraulic lines on the power steering pump.

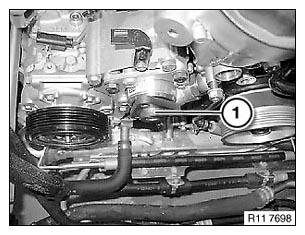

Release power steering pump (1) on engine block.

Set down power steering pump (1) on front axle carrier.

Fig 9: Identifying Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew left and right engine mounts . See 22 11 001 REPLACING RIGHT ENGINE MOUNT (S65) or 22 11 011 REPLACING LEFT ENGINE MOUNT (S65) .

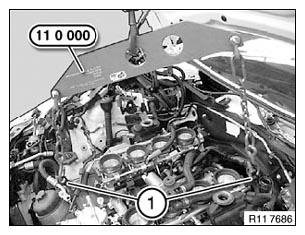

Secure special tool 11 0 000 to suspension eyes (1).

Remove engine with 2 persons.

Fig 10: Securing Special Tool (11 0 000) To Suspension Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Top up COOLANT and vent cooling system.

Pour in engine oil.

Install REPLACEMENT ENGINE .

Correct CBS data status.
