11 31... Checking/reworking intake camshaft (N20)

Necessary preliminary tasks:

IMPORTANT: Work may only be carried out on the appropriate intake camshaft variant.
Determined INTAKE CAMSHAFT VARIANT .

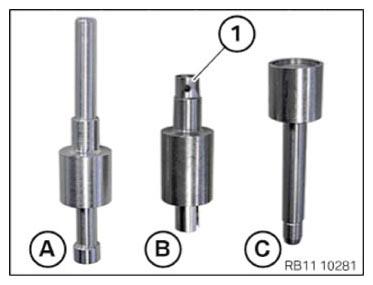

Repair kit components:

A Test sleeve with test pin
B Pretensioning sleeve with spring sheet tube (1)
C Press-in stamp

Fig 1: Identifying Repair Kit Components

Courtesy of BMW OF NORTH AMERICA, INC.

Checking position of end cover in intake camshaft:

NOTE: For clarification, the following operations show the intake camshaft removed.

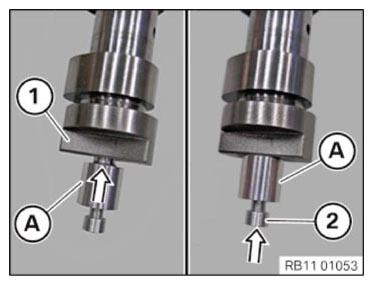

Insert test sleeve (A) in drive flange for vacuum pump of intake camshaft (1) and move into position.

Slide in test pin (2) in direction of arrow up to stop.

Determine position of test pin (2).

Fig 2: Inserting Test Sleeve And Sliding Test Pin Up To Stop

Courtesy of BMW OF NORTH AMERICA, INC.

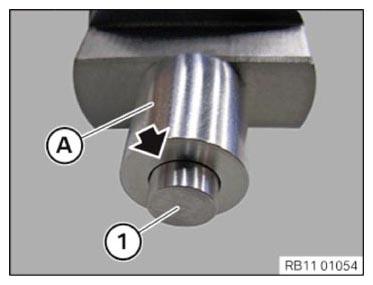

Clear protrusion of test pin (1) in relation to test sleeve (A):

(End cover already moved. Installation depth not sufficient.)

Remove test sleeve with test pin.

Replace intake camshaft.

IMPORTANT: Replace INTAKE CAMSHAFT in accordance with altered procedure.

Fig 3: Identifying Test Pin In Relation To Test Sleeve (Pronounced Protrusion)

Courtesy of BMW OF NORTH AMERICA, INC.

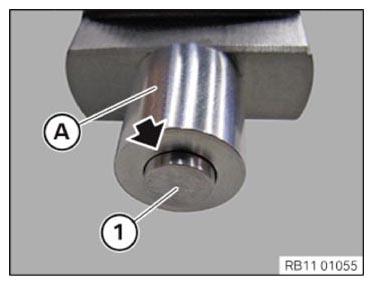

Slight protrusion of test pin (1) in relation to test sleeve (A):

(End cover already moved. Installation depth not sufficient.)

Remove test sleeve with test pin.

Replace intake camshaft.

IMPORTANT: Replace INTAKE CAMSHAFT in accordance with altered procedure.

Fig 4: Identifying Test Pin In Relation To Test Sleeve (Slight Protrusion)

Courtesy of BMW OF NORTH AMERICA, INC.

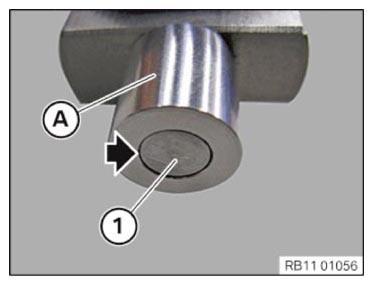

No protrusion or slight negative protrusion of test pin (1) in relation to test sleeve (A):

(End cover not moved. Installation depth sufficient.)

Remove test sleeve with test pin.

Retrofit spring sheet tube.

Fig 5: Identifying Pin Of Sleeve In Relation To Test Sleeve (No Protrusion Or Slight Negative Protrusion)

Courtesy of BMW OF NORTH AMERICA, INC.

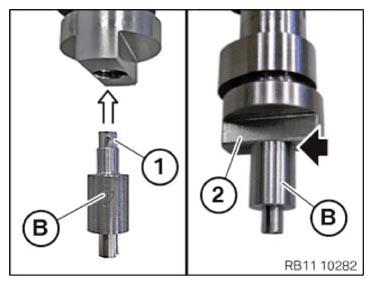

Retrofitting spring sheet tube:

IMPORTANT: The bore holes in the spring sheet tube (1) must be in the forward push-in direction.

Insert pretensioning sleeve (B) with spring sheet tube (1) as shown in intake camshaft (2) and bring into position.

Fig 6: Inserting Pretensioning Sleeve With Spring Sheet Tube In Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

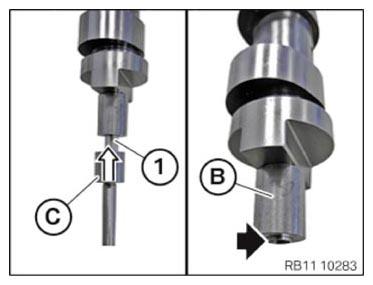

IMPORTANT: Bring press-in stamp (C) into position.

Press spring sheet tube (1) in direction of arrow with press-in stamp (C) into pretensioning sleeve (B) until spring sheet tube is virtually flush.

Fig 7: Pressing Spring Sheet Tube Into Pretensioning Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

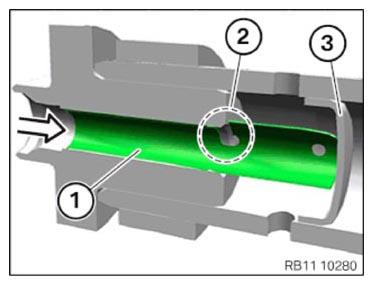

IMPORTANT: In the next step the spring sheet tube (1) must engage in intake camshaft (2). This prevents the end cover (3) from moving.

Fig 8: Engaging Spring Sheet Tube In Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

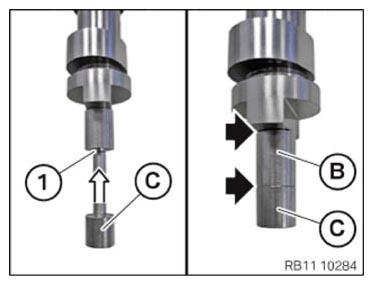

IMPORTANT: Pretensioning sleeve (B) and press-in stamp (C) must be moved into position so that spring sheet tube locks in intake camshaft.

Turn press-in stamp over. Insert tip of press-in stamp into spring sheet tube (1).

Press spring sheet tube (1) in direction of arrow fully into camshaft until press-in stamp (C) and pretensioning sleeve (B) are in contact.

Remove pretensioning sleeve (B) and press-in stamp (C) together.

Fig 9: Pressing Spring Sheet Tube Into Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install VACUUM PUMP
