11 00 039 Checking compression of all cylinders (N20)

Special tools required:

11 0 222
11 8 732
11 8 731
0 490 615
0 496 107
2 410 242

IMPORTANT: High energy - risk of serious injury or death. Interrupt power supply to ignition coils.

Necessary preliminary tasks:

Remove SPARK PLUGS

Unscrew tip (1) from special tool 11 0 222 .

IMPORTANT: Then check the Schrader valve that is now visible for secure seating.
Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731 .

Order number: 0 490 615/0 496 107.

Fig 1: Identifying Special Tool (11 0 222) And (11 8 731)

G05501554

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731 .

Fig 2: Preparing Special Tools

G05501555

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm.

IMPORTANT: Oil screw thread on special tool 11 8 731 .

Fig 3: Screwing Special Tool (11 0 222) Into Special Tool (11 8 731)

G05528128

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in 100 bar pressure sensor (81 38 0 431 592) hand-tight using special tool 2 410 242.

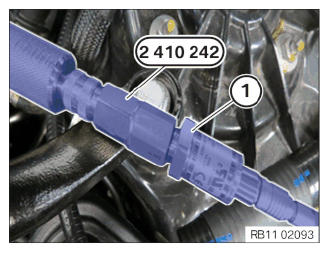

Fig 4: Identifying Special Tool (2 410 242) And 100-Bar Sensor

G10992201

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 0 222 by hand into the spark plug thread.

Illustration: N74.

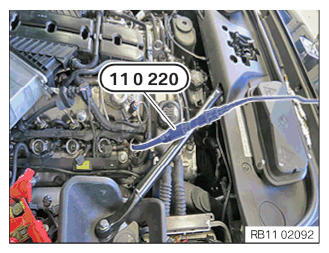

Fig 5: Screwing Special Tool (11 0 222) Into Spark Plug Thread

G10992202

Courtesy of BMW OF NORTH AMERICA, INC.

Unplug connector A223*6B.

For L6 and L7 vehicles, connector A46*6B

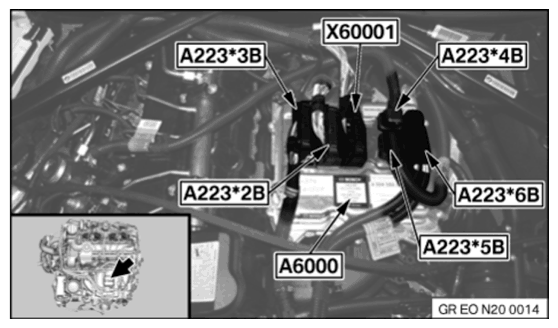

Fig 6: Identifying Connectors

G11087698

Courtesy of BMW OF NORTH AMERICA, INC.

Compression check, electronic .

Connect ISID and IMIB (Integrated Measurement Interface Box) (1) or IMIB R2.

Follow diagnosis instruction.

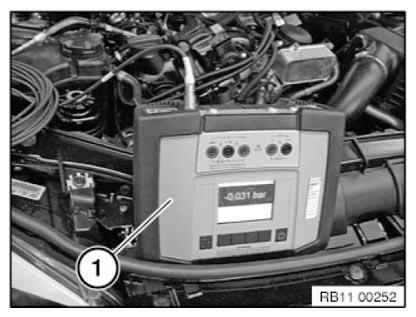

Fig 7: Identifying ISID And IMIB Box

G09918874

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check fault memory.
