11 00 Mounting engine on assembly stand (N20)

Special tools required:

IMPORTANT: Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks:

Attach engine or engine block to the fixture (2) using bolts (1).

Use special tool (2) to attach the engine to special tool 00 2 300 .

Order number, assembly block: 83 30 0 495 187

Order number, fixture: 83 30 2 212 832

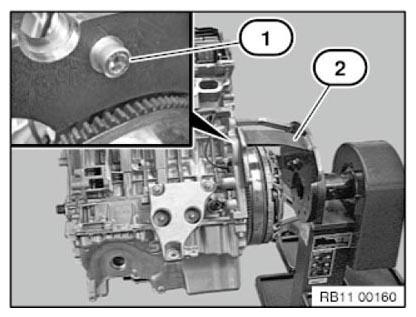

Fig 1: Attaching Engine Block To Fixture Using Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
