11 00 Mounting engine on assembly stand (M57T2)

Special tools required:

• 00 1 450
• 00 2 300
• 11 6 090

Necessary preliminary tasks:

• Remove engine. See 11 00 050 REMOVING AND INSTALLING ENGINE (M57T2) .

Secure special tool 11 6 090 to crankcase.

Tighten screws uniformly.

Secure engine with special tool 11 6 090 to assembly stand 00 2 300 /00 1 450 .

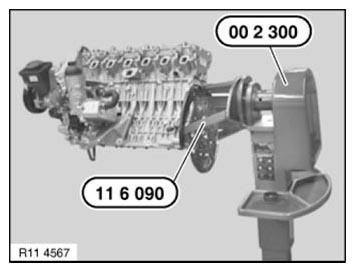

Fig 1: Securing Engine With Special Tool (11 6 090) To Assembly Stand (00 2 300)

Courtesy of BMW OF NORTH AMERICA, INC.
