61 13... Repair wiring harness, DSC section

IMPORTANT: Repair wiring harness represents the highest vehicle specification. Secure cables that are not needed to avoid noises.
Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Installation note:

Use suitable TOOL FOR REPAIR WIRING HARNESS .

Necessary preliminary tasks:

Perform repair wiring harness DSC (1) in area (2) as specified in wiring diagram.

Installation note:

Make sure repair wiring harness DSC (1) is routed without possibility of abrasions.

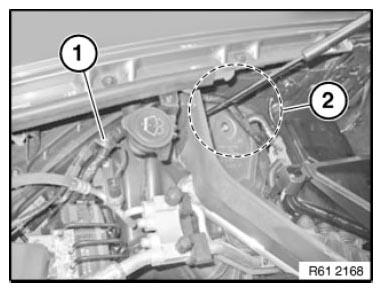

Fig 1: Identifying Wiring Harness DSC Repair Area
G08530418Courtesy of BMW OF NORTH AMERICA, INC.
