52 26... Removing and installing/replacing CF microswitch

Necessary preliminary tasks

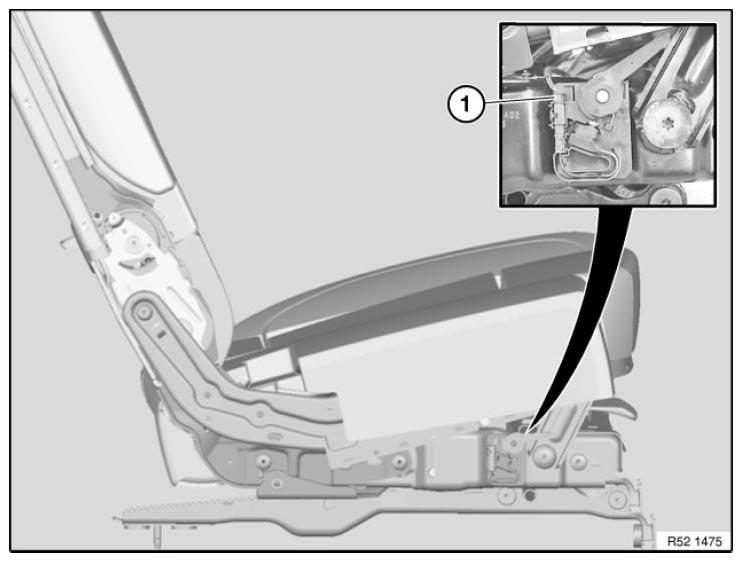

Fig 1: Identifying Plug Connection
G08530493Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

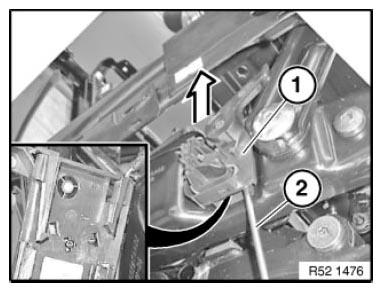

Unlock microswitch (1) with screwdriver (2) and remove towards top.

Fig 2: Unlocking Microswitch With Screwdriver
G08530494Courtesy of BMW OF NORTH AMERICA, INC.
