52 26... Removing and installing/replacing FOLD microswitch

Necessary preliminary tasks

• Remove backrest cover  See 52 26 411 REPLACING BACKREST COVER FOR LEFT REAR SEAT or 52 26 412 REPLACING BACKREST COVER FOR RIGHT REAR SEAT .
• Remove TRIMS FROM BACKREST FRAME, OUTER .

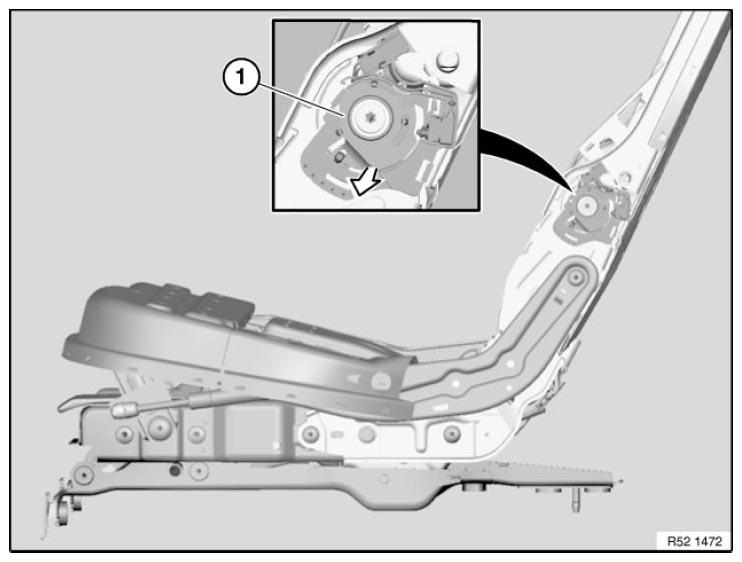

  Fig 1: Uncliping Microswitch From Seat Backrest Frame

  Courtesy of BMW OF NORTH AMERICA, INC.

Unclip microswitch (1) from seat backrest frame.

Installation:

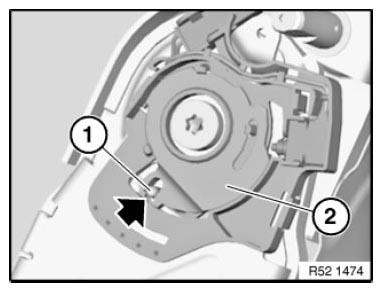

Make sure contact sensor (2) is fitted correctly on pin (1).

Fig 2: Identifying Contact Sensor And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

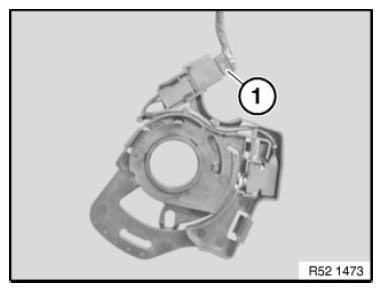

Unfasten plug connection (1) and disconnect.

Fig 3: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
