41 00... Replacing blind rivets

Special tools required:

2 348 128
72 1 210

IMPORTANT: Lay out protective mats to protect the interior against swarf from the drilled-out rivets and damage.
Lay out protective mats in the relevant working area:

Dashboard
Entrance area
Passenger compartment

Fig 1: Identifying Protective Mats

Courtesy of BMW OF NORTH AMERICA, INC.

Schematic diagram of folding pack holder for head airbag:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

Fig 2: Drilling Off Rivet Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Described for grab handle holder:

Drill off rivet plate down to rivet shank with a 10 mm twist drill bit.

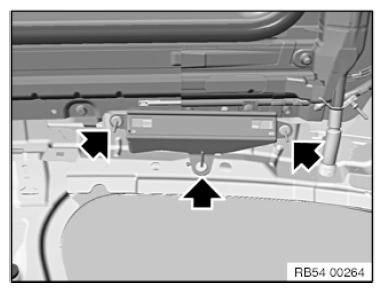

Fig 3: Locating Handle Holder Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Cut off blind rivet shanks down to sheet metal as level as possible.

Fig 4: Cutting Blind Rivet Shanks

Courtesy of BMW OF NORTH AMERICA, INC.

Deburr remaining rivets with nipper pliers.

Fig 5: Removing Remaining Rivets With Nipper Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply primer to paintwork damages on side frame.

NOTE: Depending on accessibility, the rivet heads will have to be removed using special tool 2 348 128 or 72 1 210 .

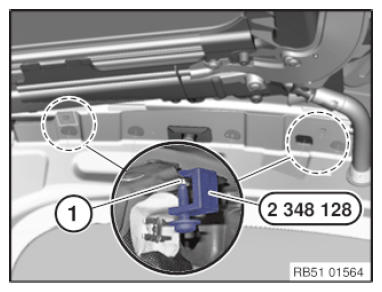

Press off rivet heads (1) using special tool 2 348 128 and remove.

Fig 6: Pressing Rivet Heads Using Special Tool (2 348 128)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 72 1 210 for collecting rivet heads.

Shank (1) of special tool is flexible and can be adapted to the relevant body contours.

NOTE: Insert butyl in the collecting tray (2) to secure rivet heads and prevent them from falling out.

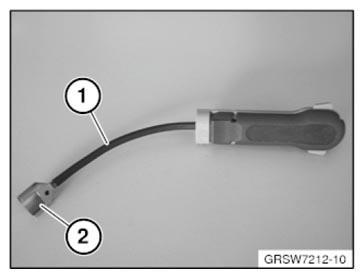

Fig 7: Identifying Shank And Collecting Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 72 1 210 through bore hole in body next to attachment points.

Position special tool from rear on rivet head in cavity.

NOTE: A second person will be needed to help hold the special tool on the rivet head during the driving-out operation.

Make sure collecting tray is correctly fitted on rivet head.

Drive out stem with hammer and 6 mm punch.

Carefully feed special tool out of body so that rivet head does not fall out of collecting tray.

Fig 8: Driving Out Stem With Hammer

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the rivet falls out of the collecting tray into the side frame when the special tool is fed out, this area must be generously filled with foam.
For details of procedure for filling cavities with foam, see further operations.
Cavity foam can also be used if necessary.

Fit tube to foam can.

Push the hose in through the pillar holes.

Fill cavity with a filling material.

WARNING: Empty foam can completely onto cardboard and after hardening dispose of foam and can in residual waste.
Can may burst if not completely emptied.

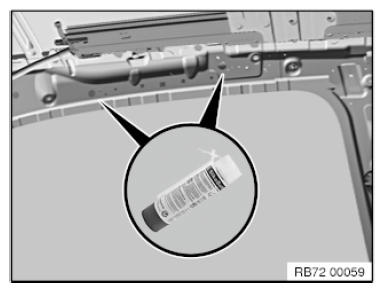

Fig 9: Identifying Cavity Filling Material Tube

Courtesy of BMW OF NORTH AMERICA, INC.
