11 00... Engine oil change (S55)

Special tools required:

11 9 240

WARNING: Risk of scalding!
When carrying out repair on vehicle, always wear oil- and heat-resistant protective gloves including forearm protection, face protection and protective apron.

CAUTION: Always change the engine oil at operating temperature.
Observe the exact engine oil filling capacity.
Vehicles equipped with a gasoline particulate filter must be operated using low-ash engine oil only.
Overfilling the engine with engine oil will result in engine damage.

CAUTION: Risk of damage!
Protect belt drive against dirt.
Cover with suitable materials.

Recycling:

Catch and dispose of drained engine oil in a suitable collecting vessel.

Observe country-specific waste disposal regulations.

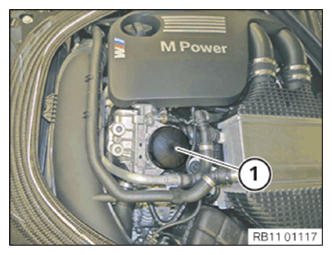

Release oil filter cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

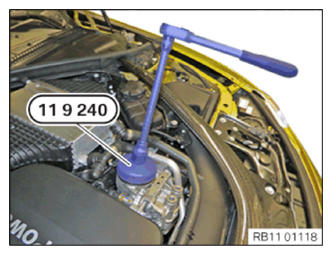

Release oil filter cover with special tool 11 9 240.

NOTE: Engine oil flows out of the oil filter housing and back into the oil sump.

Courtesy of BMW OF NORTH AMERICA, INC.

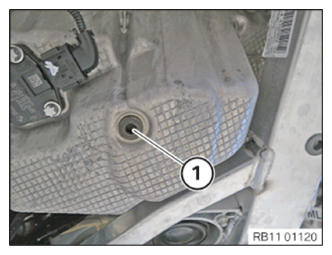

Open oil drain plug (1) on oil sump.

Drain engine oil.

Installation note:

Magnesium - oil sump to 31.08.14 replace oil drain plug (1).

Aluminium - Oil sump from 01.09.14 replace only the gasket of oil drain plug (1).

Tightening torque: 11 13 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

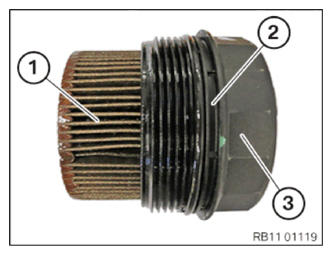

Remove the filter element (1) from the housing (3) and re-insert.

Installation note:

Replace filter element (1) and sealing ring (2).

NOTE: Coat sealing rings (2) with engine oil.
Check the center pipe is firmly seated the filter cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Secure oil filter cover with special tool 11 9 240.

Tightening torque: 11 42 1AZ .

NOTE: Pour in ENGINE OIL .
Check oil filter cover and oil drain plug of the oil sump for tightness.
Assemble engine.

Courtesy of BMW OF NORTH AMERICA, INC.

Checking oil level:

Park vehicle on a horizontal surface.
Start the oil level measurement at the control display.
Top up engine oil if necessary.
