Functional description of Oil supply: Notes

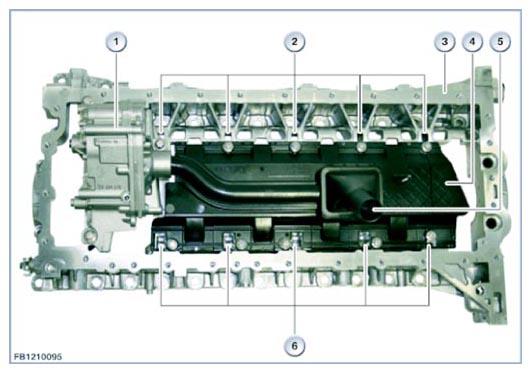

Oil is supplied according to requirements which means that only the amount of engine oil actually used is supplied. The following illustration shows the components for the oil supply on the N55 engine.
| Index | Explanation |
|---|---|
| 1 | Volume-flow-controlled oil pump |
| 2 | Oil return ducts, intake side |
| 3 | Bedplate |
| 4 | Oil deflector |
| 5 | Intake pipe with oil strainer |
| 6 | Oil return ducts, intake side, exhaust gas side |
