11 00 670 Secure engine in installation position
Special tools required:
WARNING:
Danger of injury!
Observe following instructions relating to special tool:
Observe following instructions relating to special tool:
- Prior to each use, check the special tools for defects, modifications and operational reliability.
- Damaged/modified special tools must not be used!
- No changes or modifications may be made to the special tools!
- Keep special tools dry, clean and free of grease.
NOTE:
- NUMBERING SYSTEM FOR SPECIAL TOOLS has been re-encoded.
Necessary preliminary tasks:
- Secure the engine compartment lid in the SERVICE POSITION .
- Remove acoustic cover . See 11 12 090 REMOVING AND INSTALLING/RENEWING ACOUSTIC COVER (N20) or 11 12 090 REMOVING AND INSTALLING/RENEWING ACOUSTIC COVER (N26) .
Only for F23 and F33:
- Remove FRONT END STRUTS .

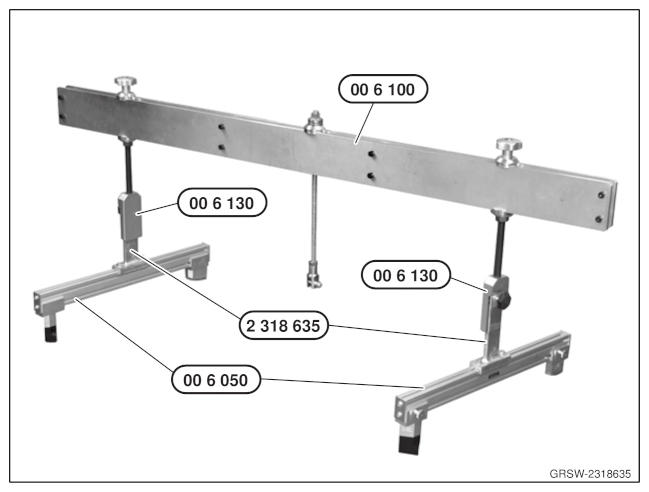

Complete the cross-member 00 6 100 with adapters 00 6 130 , T-pieces 2 318 635 and facings 00 6 050, 00 6 070-072, 00 6 070-071, 00 6 050-053.

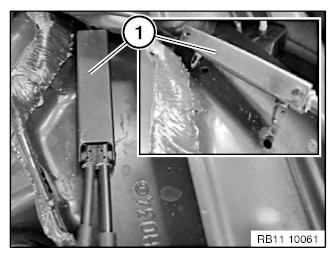

Unclip Bowden cable (1) for hood opening.
IMPORTANT:
Risk of damage!

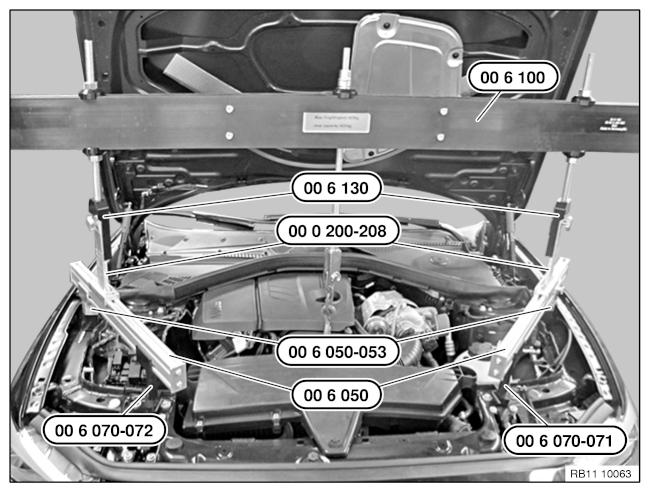

Position transverse member 00 6 100 on contact points with a second person helping.
Position transverse member 00 6 100 on contact points with a second person helping.
WARNING:
Danger of injury!
Align all struts and feet.
Tighten down all screws and nuts on cross-member 00 6 100 .
Align all struts and feet.
Tighten down all screws and nuts on cross-member 00 6 100 .

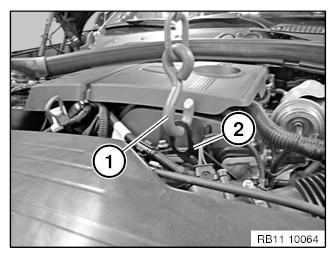

Attach chain with hook (1) into lifting lug or towing hook (2), depending on the engine.
WARNING:
Danger of injury!
Tighten down all screws and nuts on transverse member 00 6 100 .
Tighten down all screws and nuts on transverse member 00 6 100 .
IMPORTANT:
Before lifting the engine, check the lifting lugs for damage (cracks) and to ensure they are seated securely.
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.
Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.

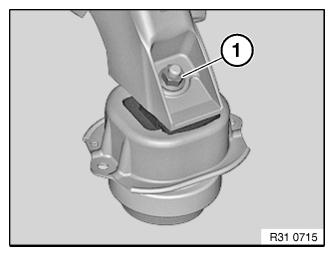

Release bolts (1) on engine mount.
Raise engine approx. 10 mm with cross member.
IMPORTANT:
Observe installation note!
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque: 22 11 2AZ .
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque: 22 11 2AZ .
