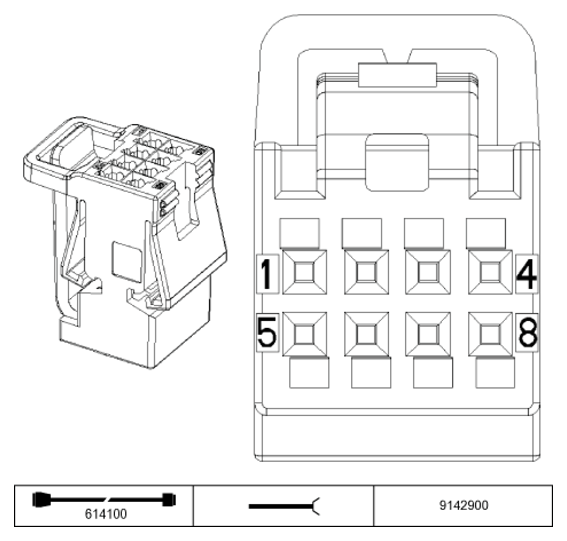

Seat Module, Driver A245*8B Connector End View
Pin Assignments At Plug Connector A245*8B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Switch signal | Seat adjustment switch cluster, driver's side |
| 2 | E | Switch signal | Seat adjustment switch cluster, driver's side |
| 3 | E | Switch signal | Seat adjustment switch cluster, driver's side |
| 4 | -- | Not used | |
| 5 | E | LED activation | Seat adjustment switch cluster, driver's side |
| 6 | E | Ground Seat adjustment switch cluster, driver's side | Seat adjustment switch cluster, driver's side |
| 7 | A | Voltage supply Seat adjustment switch cluster, driver's side | Seat adjustment switch cluster, driver's side |
| 8 | -- | Not used |
