11 00 670 Secure engine in installation position
Special tools required:
- 00 6 100
- 00 6 130
- 2 365 070
- 00 6 052
- 11 0 000
- 00 0 490
WARNING:
Danger of injury!
Observe following instructions relating to special tool:
Observe following instructions relating to special tool:
- Prior to each use, check the special tools for defects, modifications and operational reliability.
- Damaged/modified special tools must not be used!
- No changes or modifications may be made to the special tools!
- Keep special tools dry, clean and free of grease.

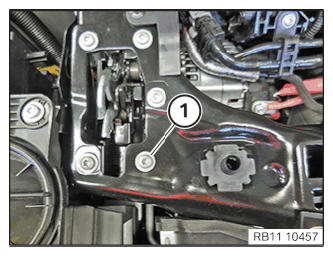

Release screw (1) from left engine compartment lock.

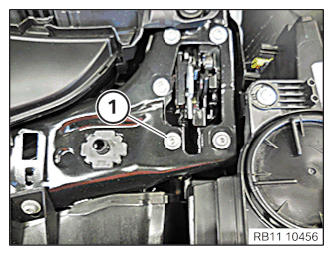

Release screw (1) from right engine compartment lock.

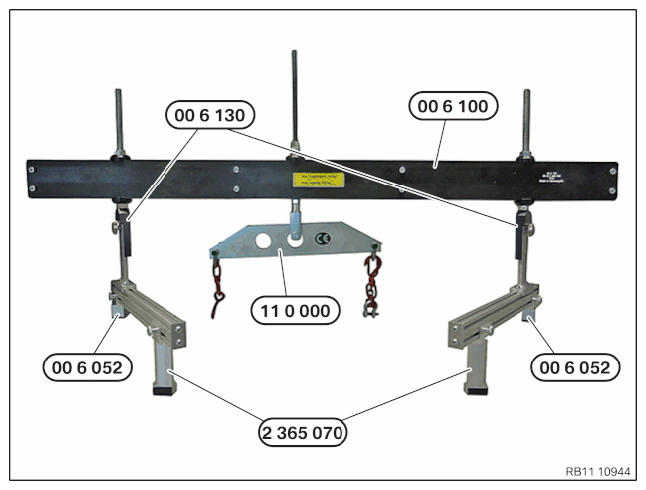

Modify the engine bridge 00 6 100 using special tools 00 6 130, 2 365 070, 00 6 052 and 11 0 000 to match the motor vehicle.
With the help of an assistant, fit the entire cross-member 00 6 100 onto the vehicle.

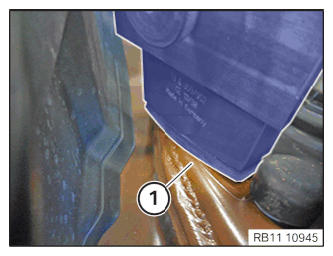

(1) = rear right support point.

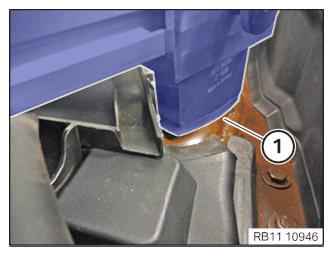

(1) = rear left support point.

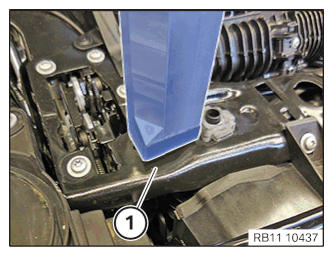

(1) = front right support point.

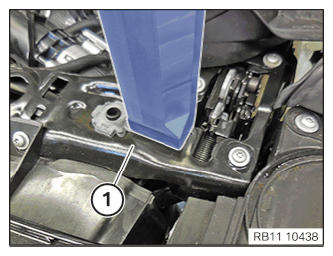

(1) = front left support point.

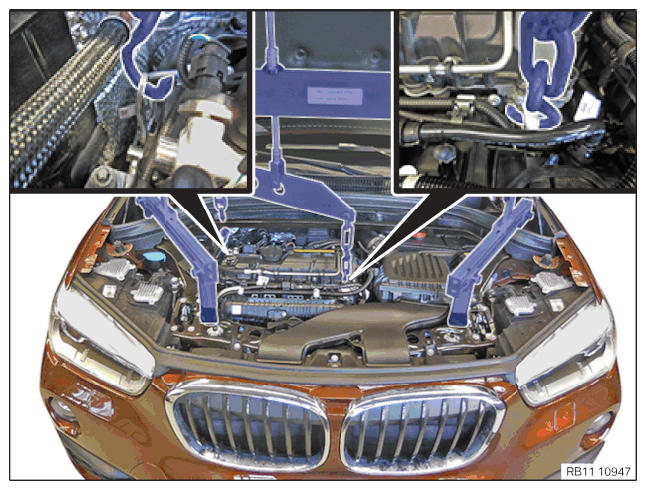

Attach the chains to the engine.
Slightly pretension the spindle (1) of the engine support beam.
WARNING:
Danger of injury!
Tighten down all adjusting screws, knurled screws and nuts on cross-member 00 6 100 and on special tool 00 0 490.
IMPORTANT:
Avoid a change of engine position in the transverse or longitudinal direction!
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.
