11 00 050 Removing and installing engine (N20)

Special tools required:

11 0 000
72 15 8 108 670
13 5 160
00 9 030

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY LEAD .
MOVE engine compartment lid into service position.
REMOVE both trailing links.
Remove TRANSMISSION .
Remove EXHAUST SYSTEM .
Remove both front DRIVE SHAFTS (all-wheel drive vehicles only).
Drain ENGINE OIL .
Remove ACOUSTIC COVER
Remove INTAKE SILENCER HOUSING .
REMOVE bottom clean air pipe.
REMOVE LEFT CHARGE AIR DUCT .
Remove RIGHT CHARGE-AIR DUCT .
Detach all coolant hoses from engine.
Remove COOLANT THERMOSTAT .
Evacuate HEATING AND AIR CONDITIONING SYSTEM .

For removing and installing the engine, the towing hook 72 15 8 108 670 is required.

Fig 1: Identifying Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover (1).

Release nut underneath. Remove positive battery cable from positive battery connection point.

Tightening torque: 12 42 3AZ .

Fig 2: Identifying Back Cover

Courtesy of BMW OF NORTH AMERICA, INC.

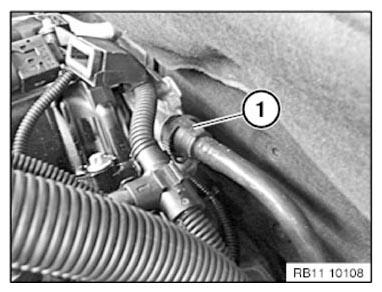

Release vacuum line (1) to vacuum pump.

Fig 3: Identifying Vacuum Line To Vacuum Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Detach the fuel line at the snap fastener (1).

Fig 4: Identifying Fuel Line And Snap Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

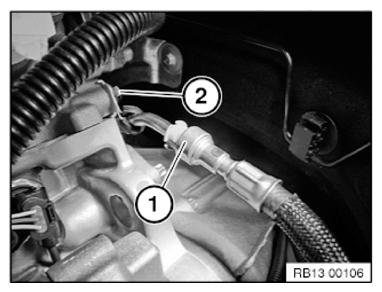

Seal fuel lines with seals (1) and (2) from set of special tools 13 5 160 .

Fig 5: Identifying Fuel Lines With Seals

Courtesy of BMW OF NORTH AMERICA, INC.

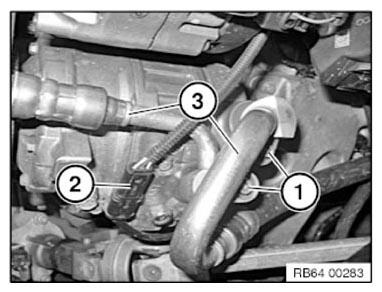

Release and disconnect plug connection (2) at A/C compressor.

Release screws (1).

Tightening torque: 64 52 1AZ .

Remove refrigerant lines (3).

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Fig 6: Identifying A/C Compressor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

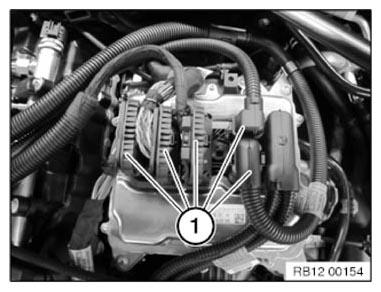

Unlock all connectors (1) from control unit and disconnect.

Place engine wiring harness to one side.

Installation note:

Make sure grommets are correctly fitted (watertightness).

Fig 7: Identifying Control Unit Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

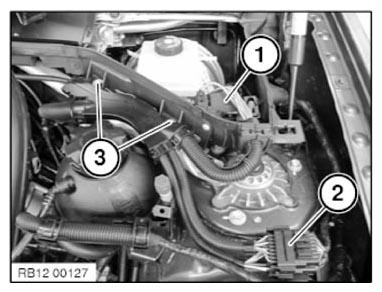

Detach all connectors from Power

Distribution Module (1). Release wiring harness from bulkhead.

Disconnect plug connection (2).

Release screws (3) and lay wiring harness to one side.

Fig 8: Identifying Power Distribution Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine mount on left and right.

Tightening torque: 22 11 2AZ .

Fig 9: Identifying Screws On Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Schematic diagram:

Screw towing eye (1) into cylinder head.

Tightening torque: 11 12 5AZ .

Attach special tool 11 0 000 to engine crane.

Suspend special tool 11 0 000 only from designated mounting eyelets (2).

The installation eye is in close proximity to starter motor.

Fig 10: Attaching Special Tool (11 0 000) To Engine Crane

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note restrictions on steering shaft and bulkhead.

Lift engine out with engine crane.

Assemble engine.

Check function of DME.
