SI number

01 12 93 (701)

Consisting of:

1 = 0490638 Strip

NOTE: (Sealing strip) Engine: M43 Only available as part of complete set

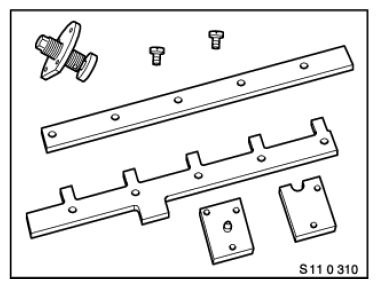

Fig 1: Identifying Device (110310)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0490639 Strip

NOTE: (Sealing strip) Replaced by 11 0 318 (0 490 645)

3 = 0490640 Upholstery

NOTE: (Rubber padding (2 pieces)) Engine: M43 Only available as part of complete set

4 = 0490641 Cover

NOTE: (Cover for water pump connection) Engine: M43 Only available as part of complete set

5 = 0490642 Cover

NOTE: (Cover for radiator connection with valve) Engine: M43 Only available as part of complete set

6 = 0490643 Cover

NOTE: (Cover for heater connection) available as part of complete set only

7 = 0490644 Screw

NOTE: (Screw plug (2 pieces)) Engine: M43 Only available as part of complete set

8 = 0490645 Strip

NOTE: (Sealing strip) Engine: M43 Only available as part of complete set
