111020 Device AM

NOTE: (Tool for pressure-testing cylinder head)

Consisting of:

1 = 0490664 Strip

NOTE: (sealing strips (2 pieces))

2 = 0490665 Upholstery

NOTE: (Rubber padding (2 pieces))

3 = 0490666 Adapter

NOTE: (Adapter) Engine: M20

4 = 0490667 Cover

NOTE: (cover for branch flange) Engine: M20

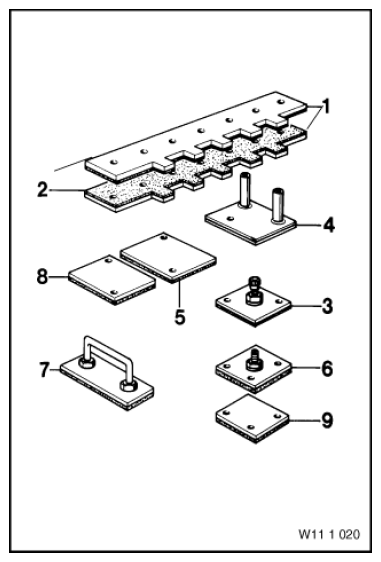

Fig 1: Identifying Device (111020)

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 0490668 Adapter

NOTE: (Adapter) Engine: M20

6 = 0490669 Adapter

NOTE: (Adapter) Engine: M40

7 = 0490670 Plate

NOTE: (Cover plate) For connection duct to water pump - Engine: M40

8 = 0490671 Plate

NOTE: (Cover plate for radiator flange connection) Engine: M40

9 = 0490672 Plate

NOTE: (Cover plate for heater connection) Engine: M40
