112110 Device AM

NOTE: For retightening the connecting rod and cylinder head bolts - Replaced by 00 9 120 (0 490 504)

Consisting of:

1 = 0490827 Extension

NOTE: (Extension 1/1") Replaced by 00 9 120 (0 490 504)

2 = 0490828 Washer

NOTE: (Graduated disc 180°) Replaced by 00 9 120 (0 490 504)

3 = 0490829 Holding sleeve

NOTE: (Guide sleeve) Replaced by 00 9 120 (0 490 504)

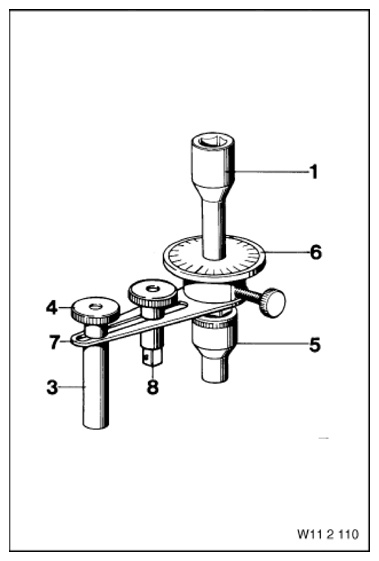

Fig 1: Identifying Device (112110)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0490830 Nut

NOTE: (Knurled nut) Replaced by 00 9 120 (0 490 504)

5 = 0490831 Socket wrench insert

NOTE: (Socket wrench insert WAF 10) Replaced by 00 9 120 (0 490 504)

6 = 0490832 Washer

NOTE: (Graduated disc up to 270°) Replaced by 00 9 120 (0 490 504)

7 = 0490833 Tab

NOTE: For counter-holding on the cylinder head Replaced by 00 9 120 (0 490 504)

8 = 0490834 Adapter

NOTE: (Adapter) Replaced by 00 9 120 (0 490 504)
