114310 Adapter Minimum set: Mechanical tools AM: Notes

In conjunction with: 11 5 360 = 0495130

NOTE: For fuel pressure check. For variable camshaft timing control VANOS with Integrated Measurement Interface Box IMIB (100 bar sensor in delivery specification). In combination with 11 5 360.

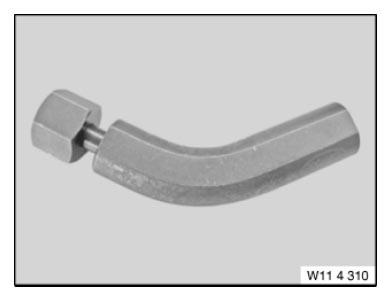

Fig 1: Identifying Adapter (114310)

Courtesy of BMW OF NORTH AMERICA, INC.
