2409248 Device AM: Notes

In conjunction with: 2359333

NOTE: For pressing down the second cylinder and current less (dis) assembly of the exhaust camshaft. Contour-graphic silhouette foil is included in delivery specification.

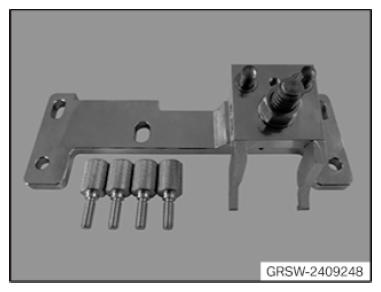

Fig 1: Identifying Device (2409248)

Courtesy of BMW OF NORTH AMERICA, INC.
