11 00 Mounting engine on assembly stand (W20)

Special tools required:

• 00 2 320
• 00 2 300
• 2 286 313
• 11 0 020

Necessary preliminary tasks:

• Remove COMPLETE DRIVE UNIT (RANGE EXTENDER)
• Remove ENGINE FROM DRIVE UNIT .

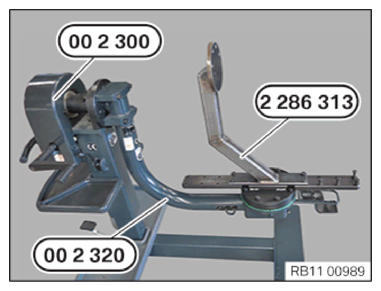

Mount special tool 00 2 320 on special tool 00 2 300.

Mount special tool 2 286 313 on special tool 2 286 313 .

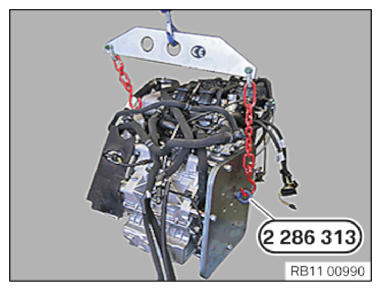

Mount special tool 2 286 313 on engine with range extender electrical machine.

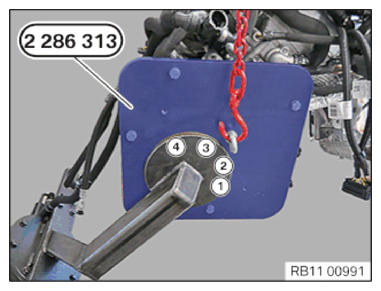

Secure the engine with the special tool 2 286 313 on the support arm with the screws (1 to 4).

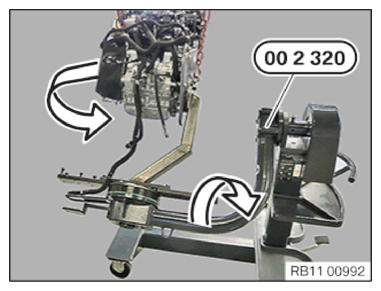

Swivel the engine with the range extender electrical machine in the direction of the arrow.

The range extender electrical machine must point upward for installation and disassembly.

Detach the RANGE EXTENDER ELECTRICAL MACHINE .

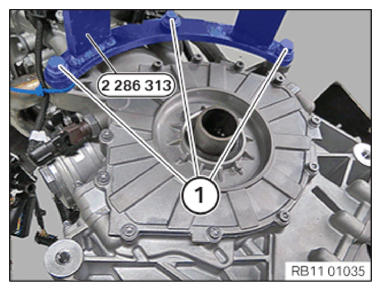

Secure special tool 2 286 313 on the alternator side with screws (1).

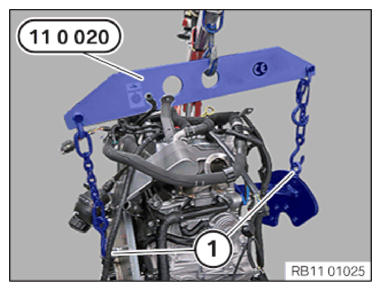

Attach the stand to the securing eye (1) with special tool 11 0 020.

Remove screws (1 to 4).

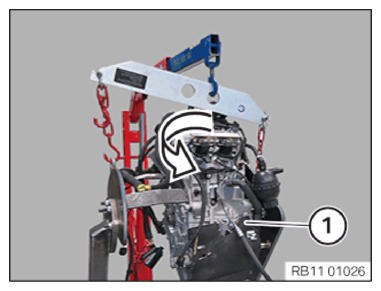

Swivel the engine (1) by 180°.

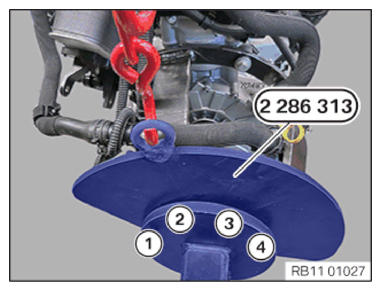

Secure the engine with the special tool 2 286 313 on the support arm with the screws (1 to 4).

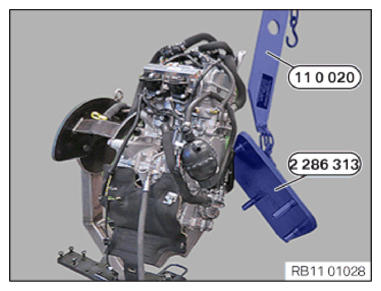

Detach the special tool 2 286 313 with a workshop crane and special tool 11 0 020.

Assemble engine.

Checking oil level:

• Park vehicle on a horizontal surface.

Service Function:

1. 01 Drive.
2. Range extender digital engine electronics.
3. Range extender service start.

Carry out leakage test for 20 min.
