31 00 General Front Axle

3100 TECHNICAL DATA OVERVIEW

Front axle ride height G20 hybrid sports suspension settings without lowered

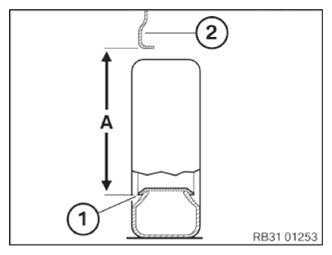

Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	17" wheel rim	612 mm
	18" wheel rim	625 mm
	19" wheel rim	637 mm
	20" wheel rim	650 mm
Front axle ride height G20 Sports suspension settings with lowered
Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	16" wheel rim	579 mm
	17" wheel rim	594 mm
	18" wheel rim	607 mm
	19" wheel rim	620 mm
	20" wheel rim	632 mm
Front axle ride height G20 Standard suspension
Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	16" wheel rim	590 mm
	17" wheel rim	606 mm
	18" wheel rim	618 mm
	19" wheel rim	631 mm
	20" wheel rim	643 mm
G20/G21/G28 rear-wheel drive, standard suspension
Measured from center of wheel hub to lower edge of wheel well	Dimension A	371 ⁺¹⁰_-10 mm
G20 Rear wheel drive, sport suspension settings with low-slung
Measured from center of wheel hub to lower edge of wheel well	Dimension A	360 ⁺¹⁰_-10 mm
Ride height of front axle G08 LCI for standard suspension, rear-wheel drive
Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	18" wheel rim	669 mm
	19" wheel rim	682 mm
	20" wheel rim	694 mm
	21" wheel rim	707 mm
Ride height of front axle G08 Standard suspension of rear wheel drive
Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	18" wheel rim	669 mm
	19" wheel rim	682 mm
	20" wheel rim	694 mm
	21" wheel rim	707 mm
Ride height on front axle, G20 hybrid standard suspension
Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	17" wheel rim	613 mm
	18" wheel rim	625 mm
	19" wheel rim	638 mm
	20" wheel rim	650 mm
Ride height on front axle G20 for rough road package
Ride height (A): Measured from bottom center of rim flange (1) to lower edge of wheel arch (2). Courtesy of BMW OF NORTH AMERICA, INC.	17" wheel rim	626 mm
	18" wheel rim	639 mm
	19" wheel rim	651 mm
	20" wheel rim	664 mm
Track width of front axle G20 for rear wheel drive
	Rim offset 22	1589 mm
	Rim offset 25	1583 mm
	Rim offset 27	1579 mm
	Rim offset 30	1573 mm
Track width on front axle G08 of standard suspension for rear-wheel drive
	Rim offset 22	1620 mm
	Rim offset 27	1610 mm
	Rim offset 30	1604 mm
	Rim offset 32	1600 mm
Wheelbase
		2851 mm
