41 00 Body
4100 TECHNICAL DATA OVERVIEW
| Air drying time after the order | ||
| Betawipe 4800 | 2 min | |
| Filler S1 | ||
| Processing time 20°C |
90 min | |
| Processing time 30°C |
60 min | |
| Curing time 60°C |
60 min | |
| Storage | 15°C... 25°C | |
| Shelf life (observe expiration date on the cartridge) | 12 Months | |
| Gap dimension front door to door sill trim panel | ||
| 1 front door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| b | 3.2 +1.2-1.2 mm | |
| Gap dimension front door to door sill trim panel | ||
| 1 front door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| b | 3.5 +1.2-1.2 mm | |
| Gap dimension front door to rear door | ||
| 1 front door; 2 rear door | a | 4.5 +1.1-1.1 mm |
| b | 0 +1.3-0.3 mm | |
| Gap dimension glass slide/tilt sunroof panel to roof outer skin | ||
| 1 glass slide/tilt sunroof panel; 2 roof outer skin | a | 0.7 +0.75-0.75 mm |
| Gap dimension hood to headlight | ||
| 1 hood; 2 headlight | a | 5.1 +2.1-2.1 mm |
| Gap dimension hood to headlight | ||
| 1 hood; 2 headlight | a | 7.2 +1.8-1.8 mm |
| Gap dimension hood to ornamental grille surround | ||
| 1 hood; 2 ornamental grille surround | a | 4.6 +1.2-1.2 mm |
| b | 1.5 +1.5-1.5 mm | |
| Gap dimension hood to side panel | ||
| 1 hood; 2 side panel | a | 3.3 +1-1 mm |
| b | 0.6 +1.6-1.6 mm | |
| Gap dimension rear door to door sill trim panel | ||
| 1 Rear door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| 3.3 +1.5-1.5 mm | ||
| Gap dimension rear door to door sill trim panel | ||
| 1 Rear door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| 0.2 +1.5-1.5 mm | ||
| Gap dimension rear door to rear quarter panel | ||
| 1 rear door; 2 rear quarter panel | a | 3.8 +0.9-0.9 mm |
| 0 +1.3-0.3 mm | ||
| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 3.5 +1-1 mm |
| b | 3.2 +1.4-1.4 mm | |
| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 3.5 +1-1 mm |
| b | 1.1 +1.4-1.4 mm | |
| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 4.2 +1-1 mm |
| b | 0 +1-1 mm | |
| Gap dimension rear window to roof outer skin | ||
| 1 rear window; 2 roof outer skin | a | 3.2 +1.3-1.3 mm |
| b | 2.8 +1.3-1.3 mm | |
| Gap dimension rear window to roof outer skin | ||
| 1 rear window; 2 roof outer skin | a | 3.2 +1.3-1.3 mm |
| b | 2.6 +1.3-1.3 mm | |
| Gap dimension roof outer skin to glass slide/tilt sunroof panel | ||
| 1 roof outer skin; 2 glass slide/tilt sunroof panel | a | 0.7 +0.75-0.75 mm |
| Gap dimension side panel to A-pillar | ||
| 1 side panel; 2 A-pillar | a | 2.6 +1.1-1.1 mm |
| b | 1 +1.3-1.3 mm | |
| Gap dimension side panel to front door | ||
| 1 Side panel; 2 front door | a | 3.8 +1-1 mm |
| b | 0.5 +1.1-1.1 mm | |
| Gap dimension trunk lid to rear bumper panel | ||
| 1 trunk lid; 2 rear bumper panel | a | 5.1 +1.8-1.8 mm |

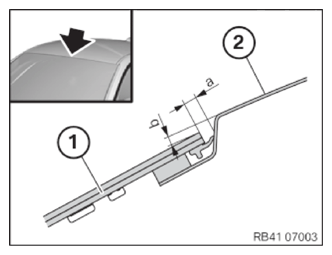

| Gap dimension windshield to roof outer skin | ||
| 1 windshield; 2 roof outer skin | a | 4.3 +1.2-1.2 mm |
| b | 3.0 +1.4-1.4 mm | |
| b (with HUD) | 2.5 +1.4-1.4 mm | |
| Gap dimension windshield to roof outer skin | ||
| 1 windshield; 2 roof outer skin | a | 4.3 +1.2-1.2 mm |
| b | 2.7 +1.4-1.4 mm | |
| b (with HUD) | 2.2 +1.4-1.4 mm | |
