Function Change After Programming (TRI B09 02 21)
Publication date: 2023-06-14Reference number: TRI B09 02 21
Supersedes refnos: SI B09 02 21
FUNCTION CHANGE AFTER PROGRAMMING
SERVICE CAMPAIGN BULLETIN
| BMW: | F44 2 Series Gran Coupe All; F90 M5 Sedan As of July 2020; F91 M8 Convertible All; F92 M8 Coupe All; F93 M8 Gran Coupe All; F95 X5 M Sport Activity Vehicle All; F96 X6 M Sport Activity Coupe All; G01 X3 (LCI) As of July 2021; G02 X4 (LCI) As of July 2021; G05 X5 Sport Activity Vehicle All; G06 X6 Sport Activity Coupe All; G07 X7 Sport Activity Vehicle All; G12 7 Series Sedan (LCI) As of March 2019; G14 8 Series Convertible All; G15 8 Series Coupe All; G16 8 Series Gran Coupe All; G20 3 Series Sedan All; G22 4 Series Coupe All; G23 4 Series Convertible All; G29 Z4 Roadster All; G30 5 Series Sedan (LCI) As of July 2020; G42 2 Series Coupe All |
SERVICE INFORMATION
This Service Information Bulletin replaces SI B09 02 21 (Revision 1) dated October 2021 .
This bulletin is information only, no claim information intended.
What's New (Specific text highlighted):
- Correction: I-level additions
- Procedure: Remote Software Upgrade release notes for 22-03 Rollout; updated public Release notes link
SITUATION
With the introduction of BMW Remote Software Upgrade, all Service Pack 18 vehicles and partial Service Pack 15 vehicles may receive new functionalities or modifications in their features with a new Software Update. These are performed either via-
- ISTA
- Remote Software Upgrade
This bulletin summarizes the changes per Software Update and shall providing support for informing the customer about the intended functional changes.
After vehicle programming via ISTA or Remote Software Upgrade (RSU) with the model-dependent I-Level S18A-21-03-5xx or S15A-21-03-5xx, the customer complains that some functions have changed in their vehicle.
All vehicles with some of the following optional equipment are affected:
Option Code 6U3 - BMW LIVE COCKPIT PROFESSIONAL
OR
Option Code 6U2 - BMW LIVE COCKPIT PLUS
OR
Option Code 6U1 - BMW LIVE COCKPIT
CAUSE
Future integration of new functions or operating concepts in the vehicles to maintain the vehicles at the current state-of-the-art.
CORRECTION
In case of a customer complaint, inform the customer about the intended function changes.

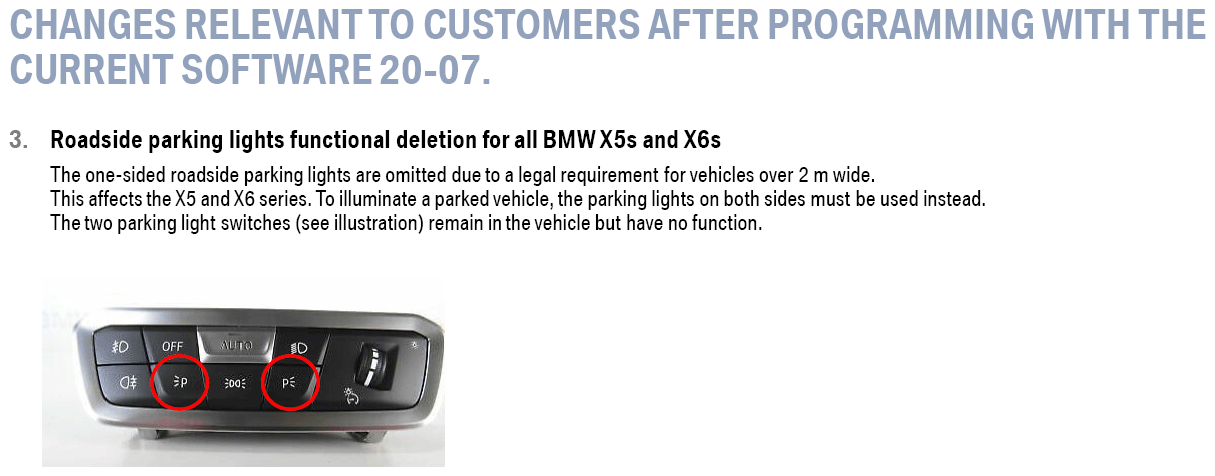

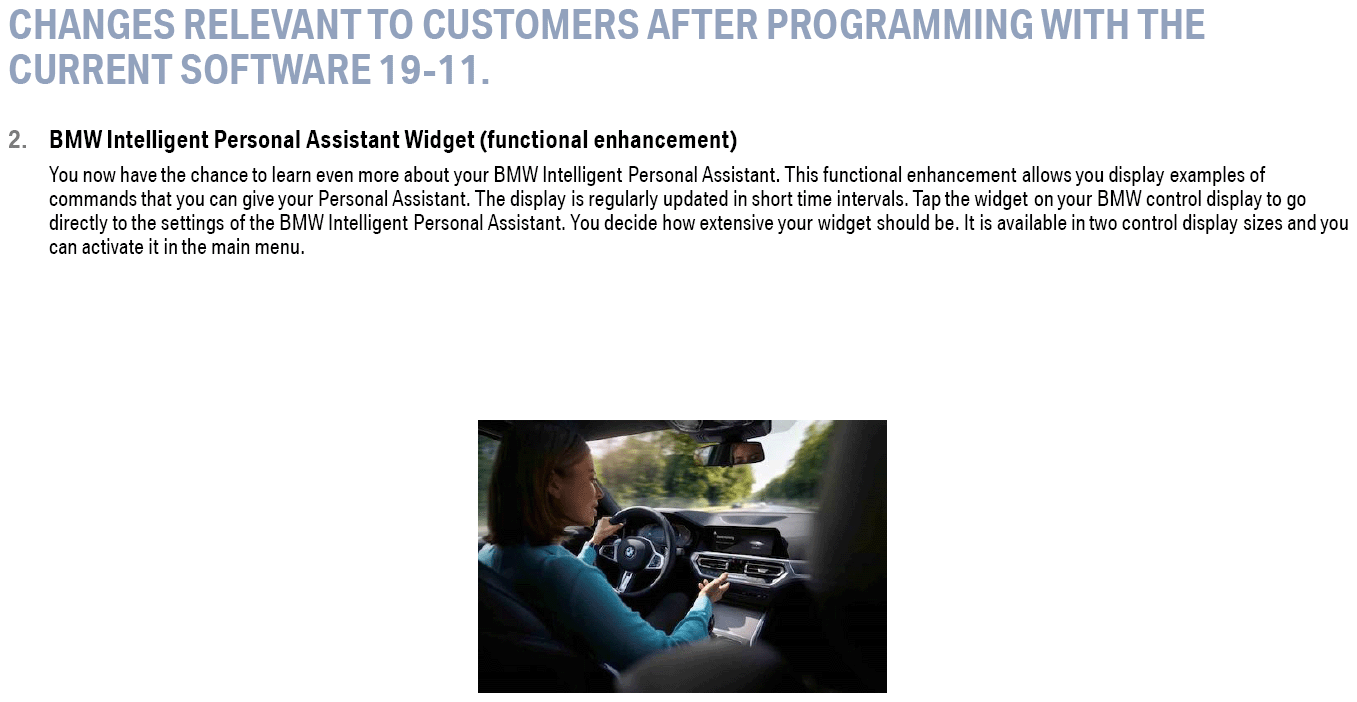

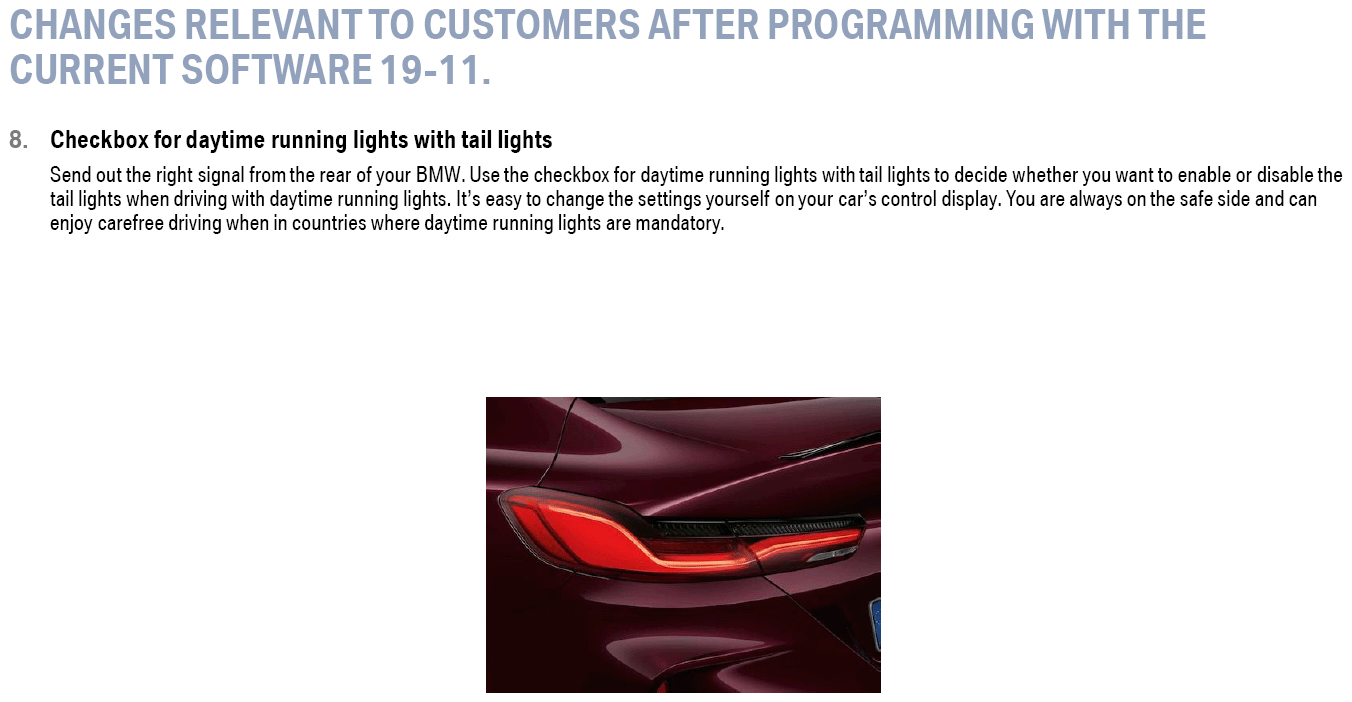

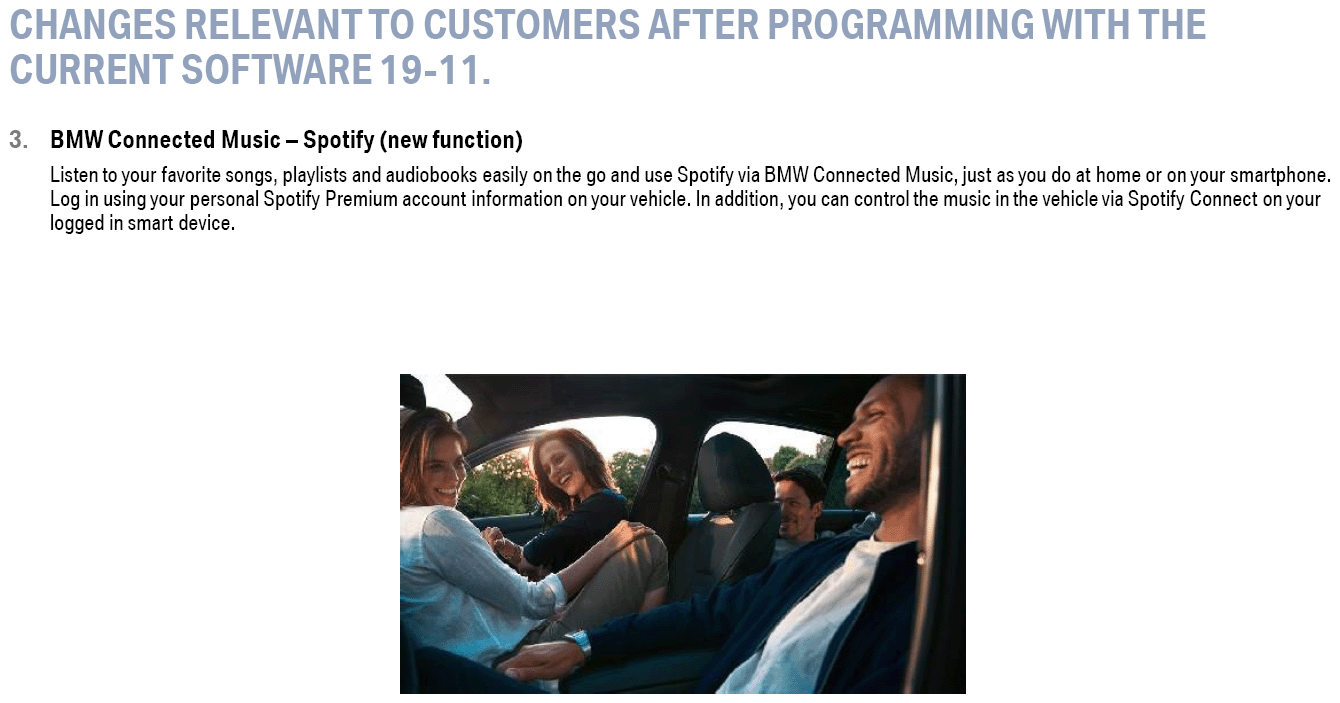

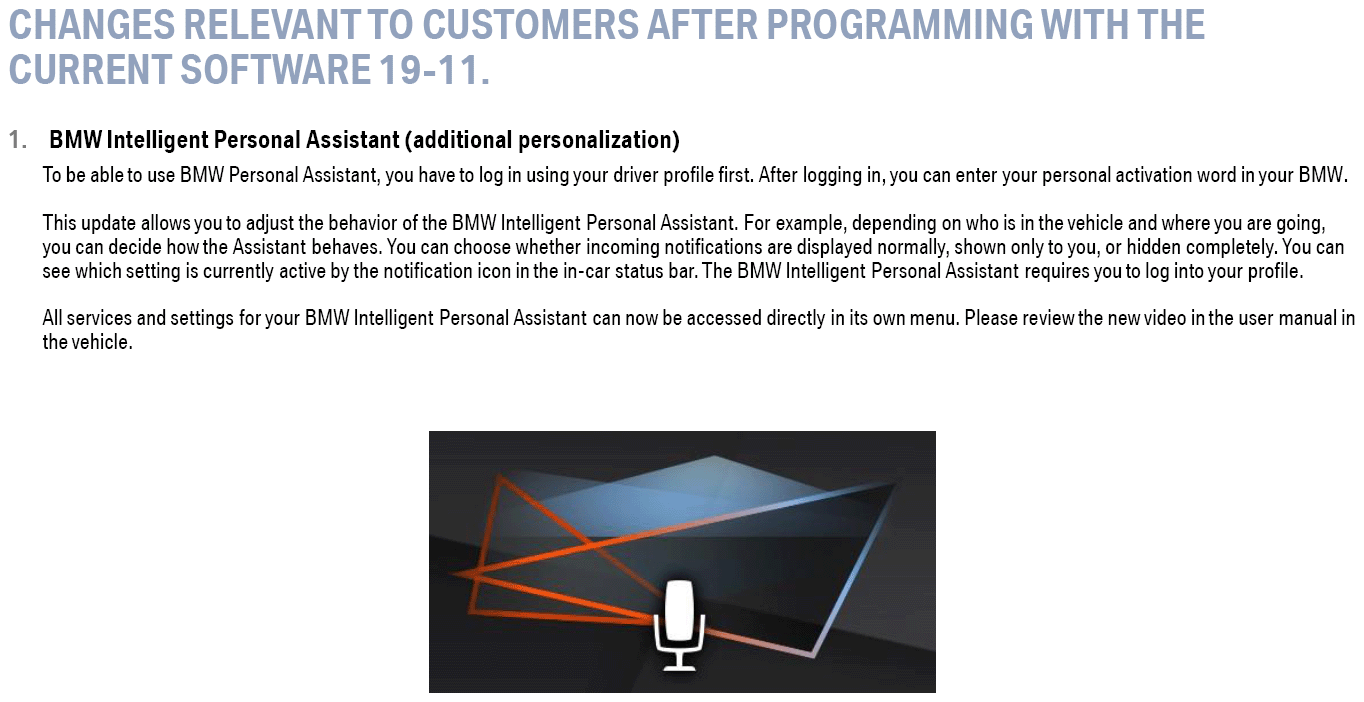

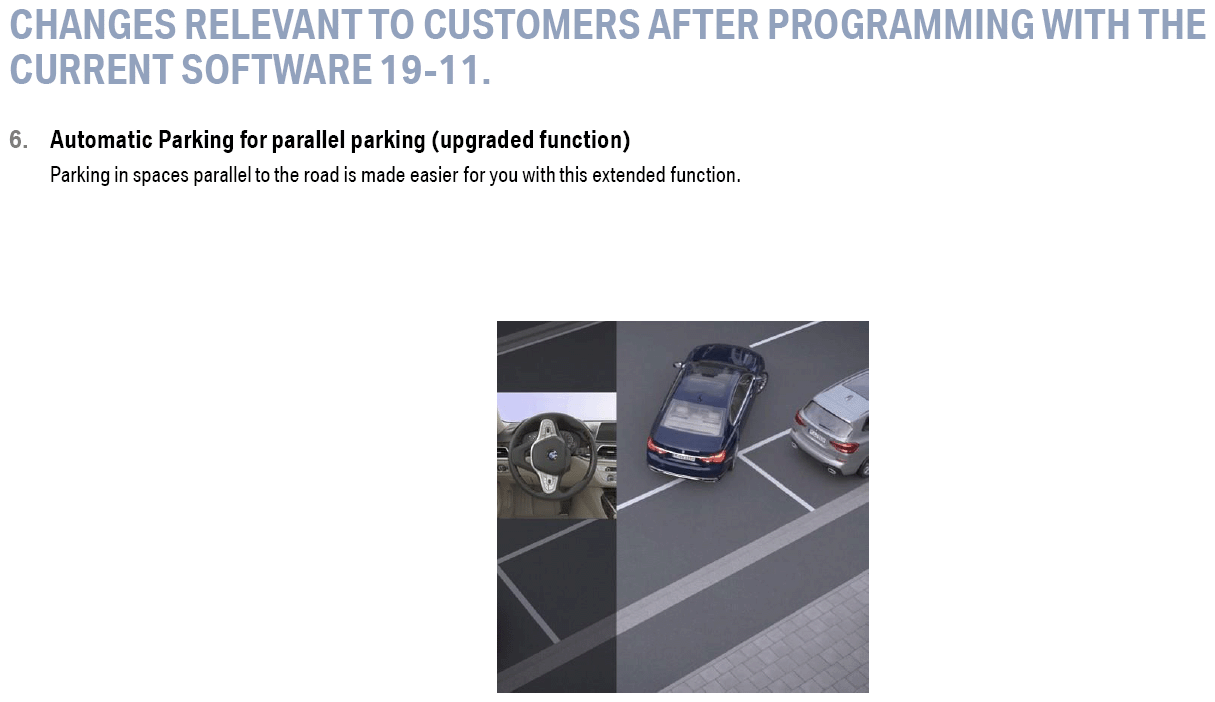

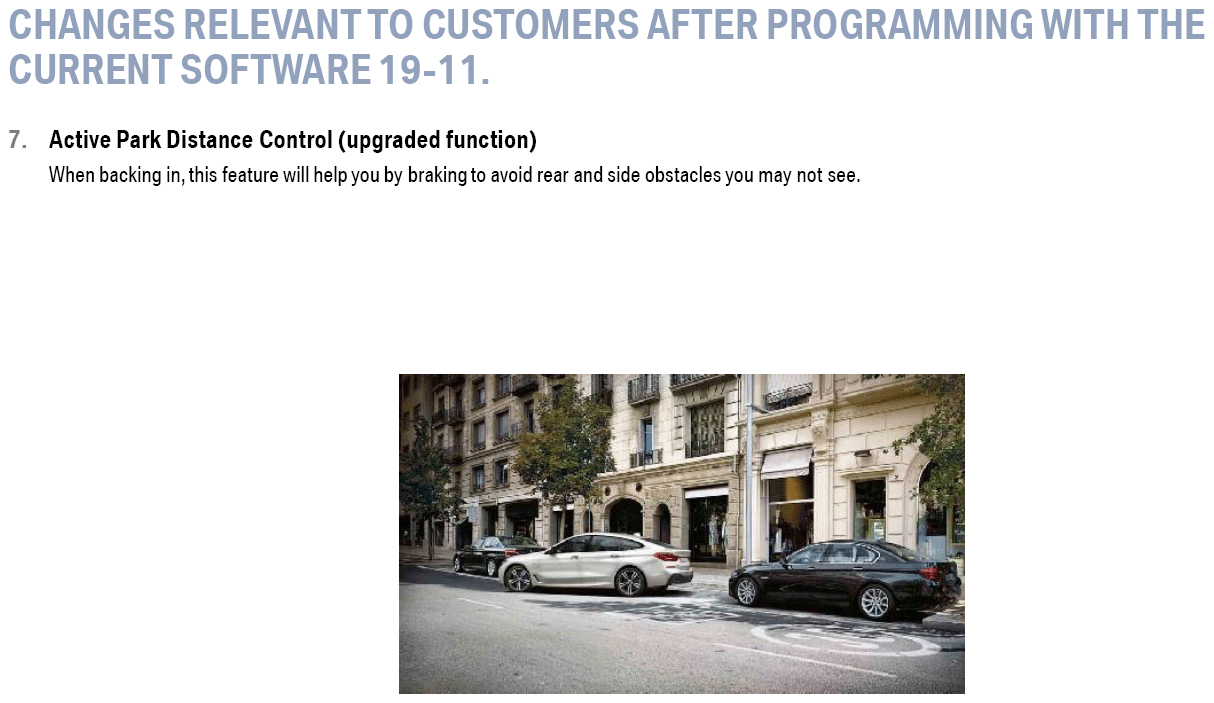

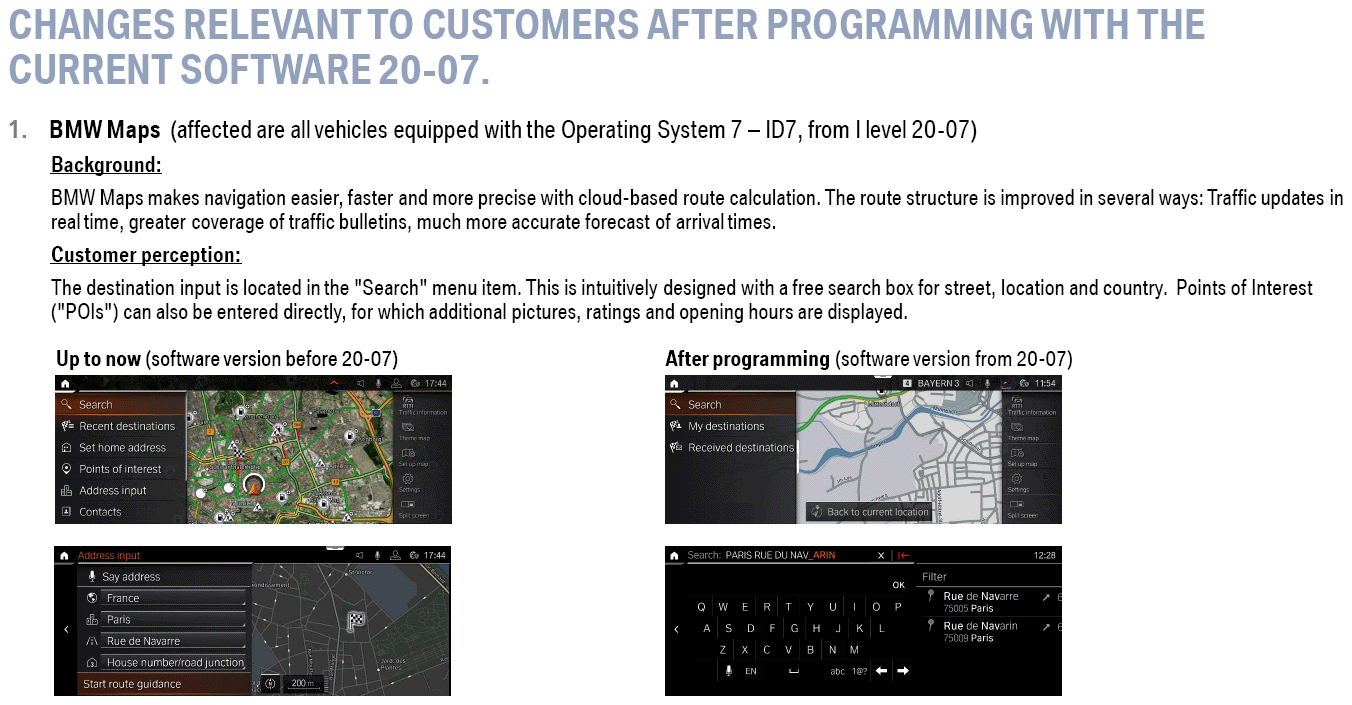

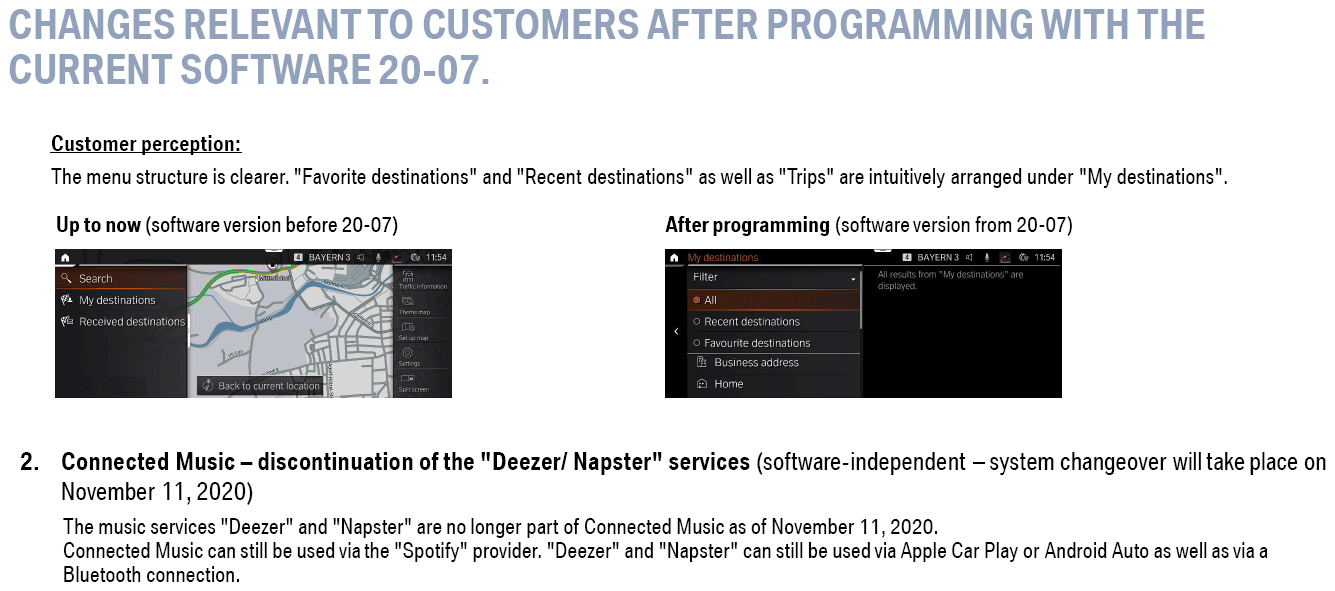

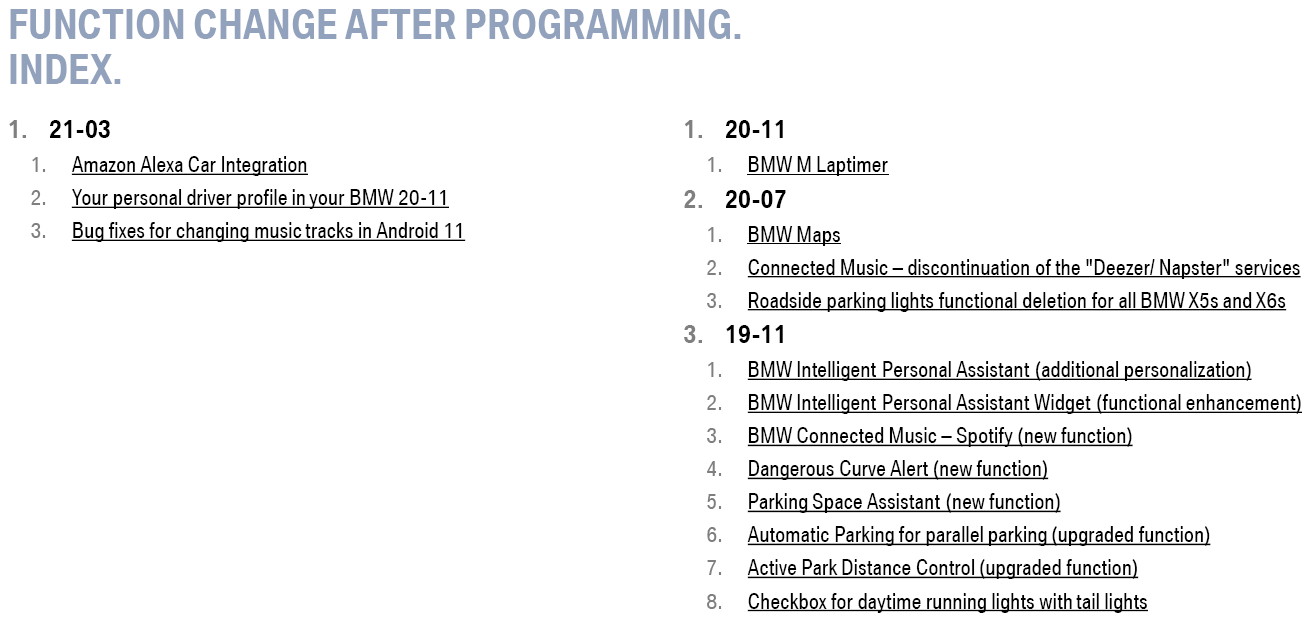

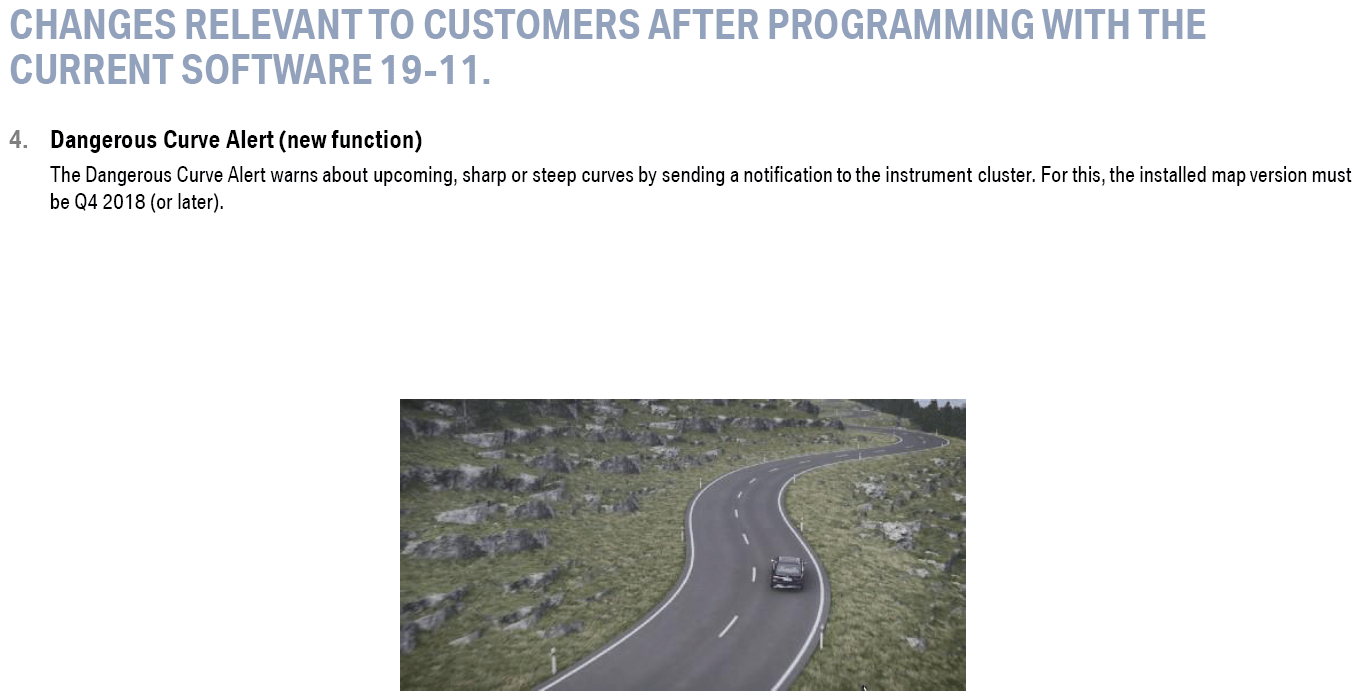

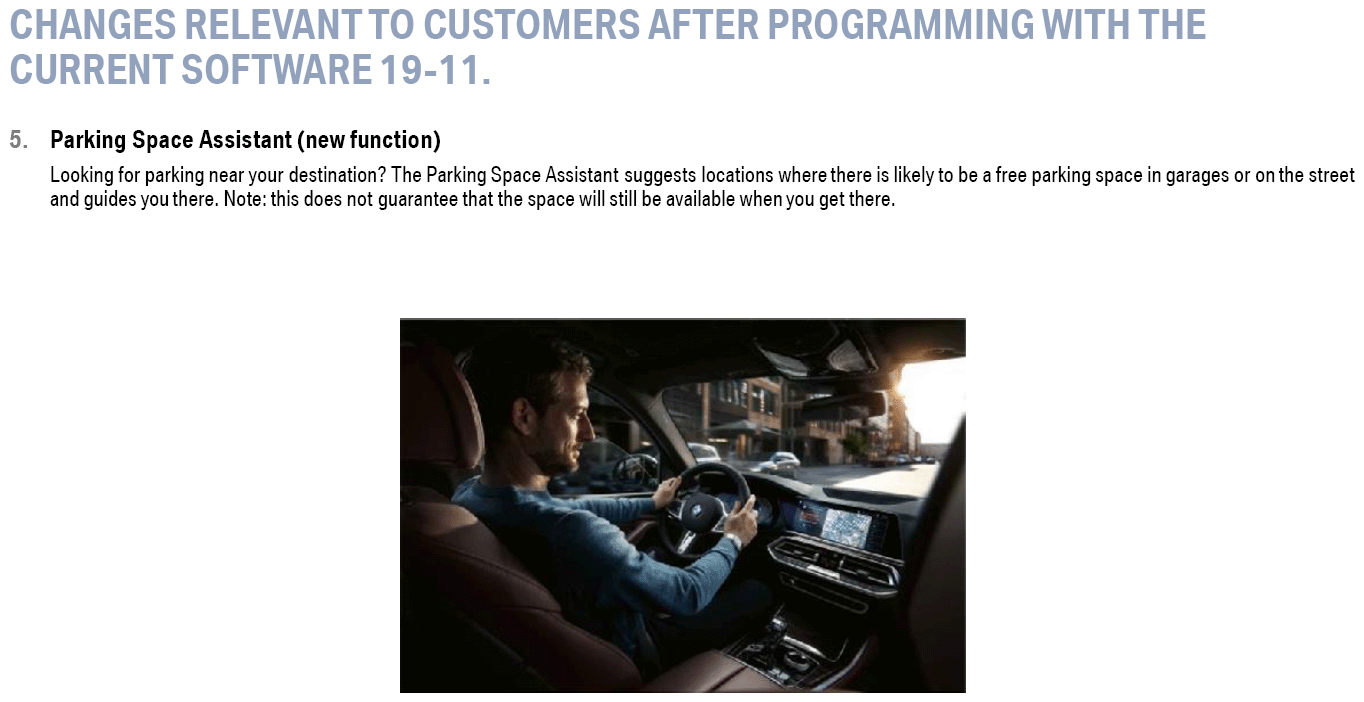

Refer to the attached overview of the I-Levels:
S18A-20-07-5xx/S15A-20-07-5xx
OR
S18A-20-11-5xx/S15A-20-11-5xx
OR
S18A-21-03-5xx/S15A-21-03-5xx
OR
S18A-21-07-5xx/S15A-21-07-5xx
OR
S18A-22-03-5xx/S15A-22-03-5xx/I020-22-03-5xx/G070-22-03-5xx/U006-22-03-5xx
PROCEDURE
Note that the information on new and upgraded features are available as soon as a new Remote Software Upgrade Rollout is started. The release notes are made available via the ConnectedDrive.
The information can be found at: https://www.bmwusa.com/explore/connecteddrive.html , in the chapter BMW Remote Software Upgrade
Direct link: https://www.bmwusa.com/explore/connecteddrive/remote-software-upgrade.html#latest-release-notes

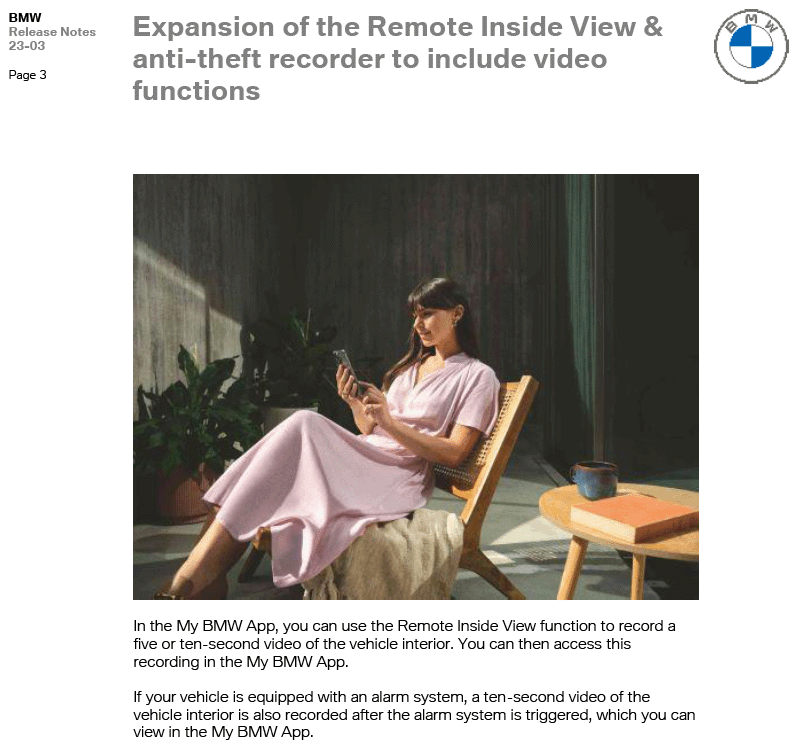

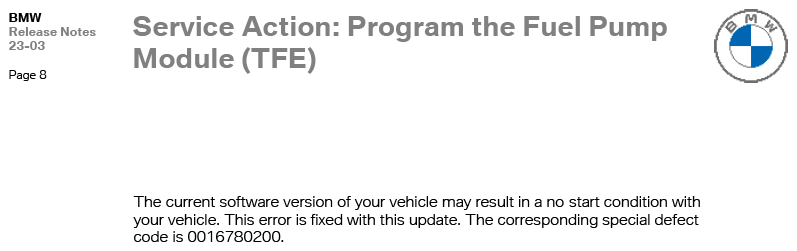

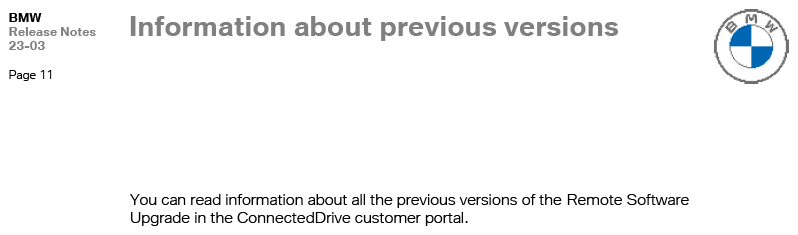

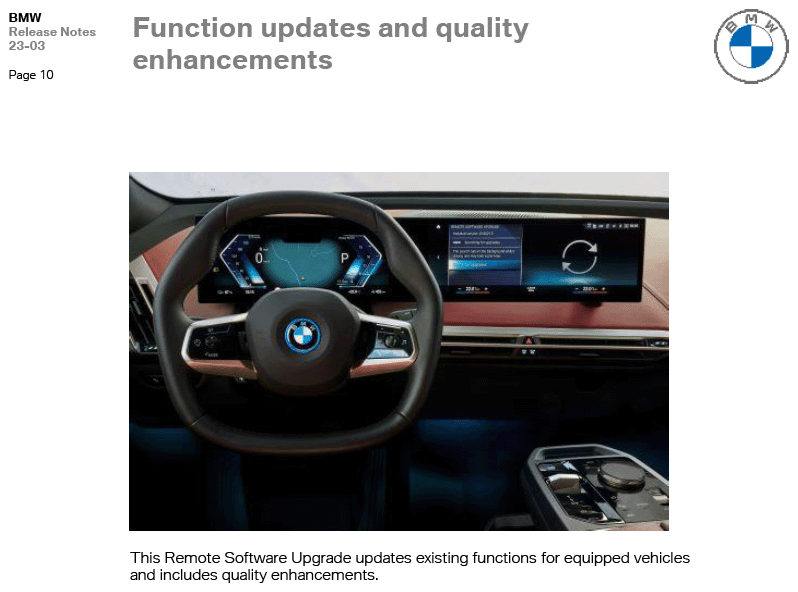

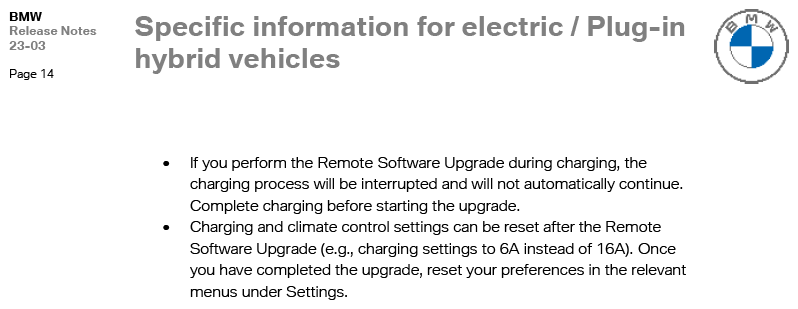

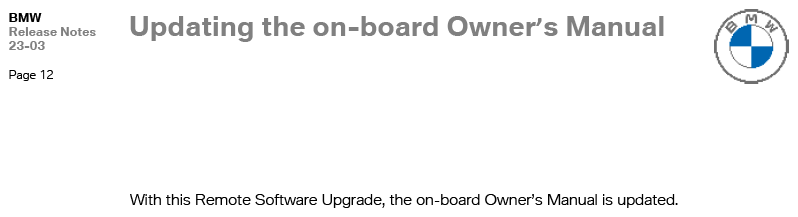

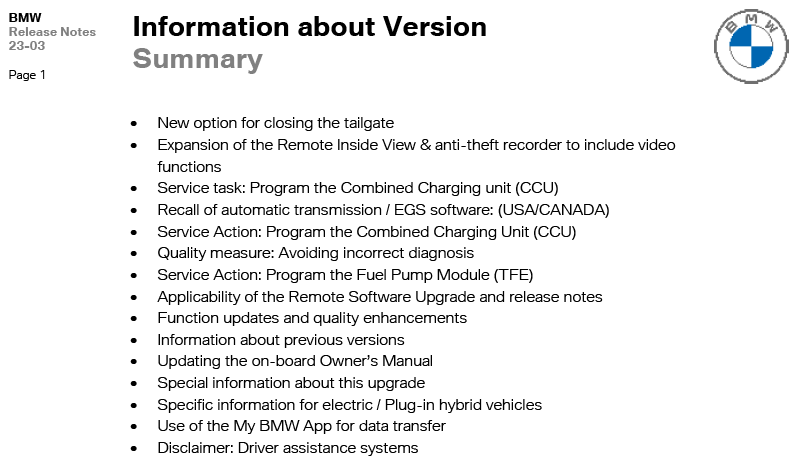

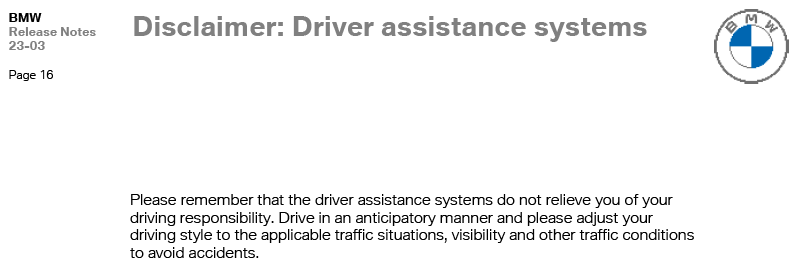

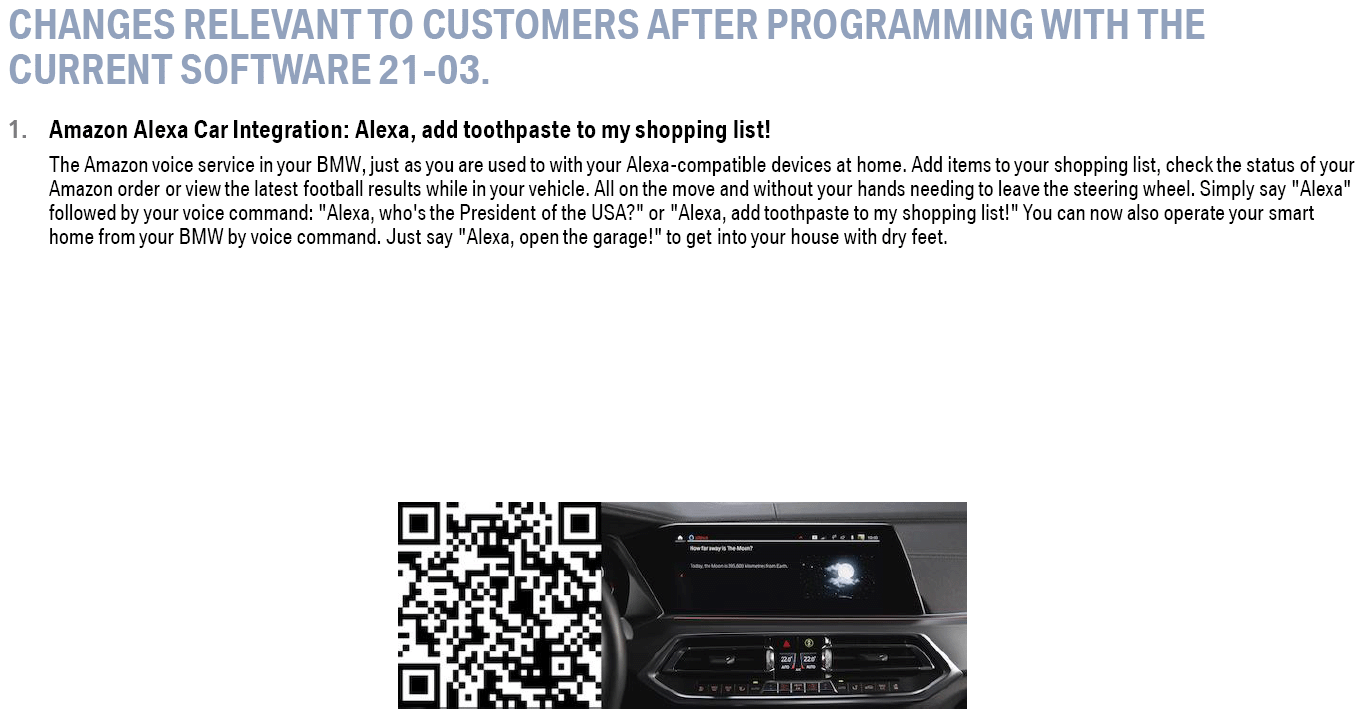

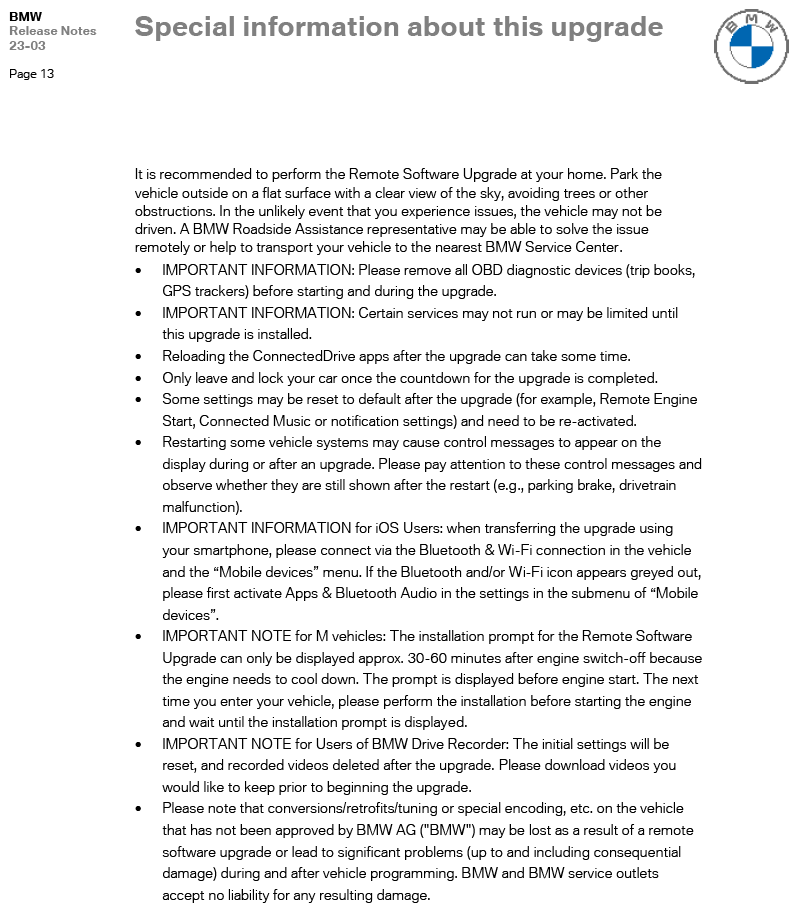

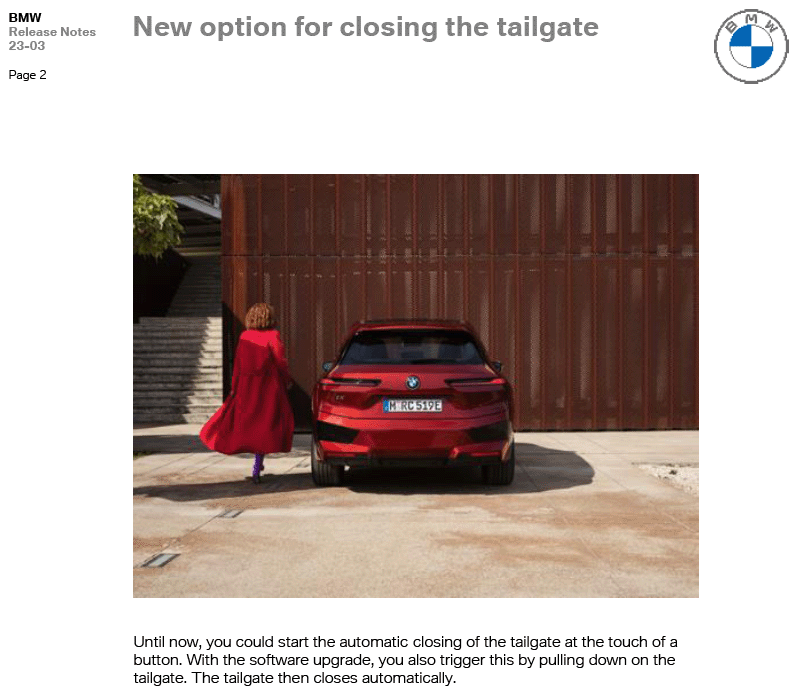

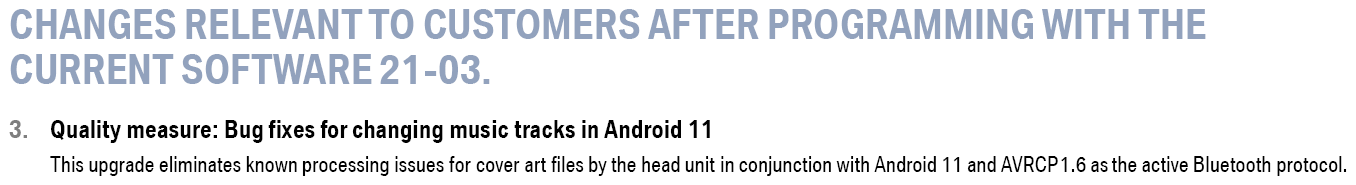

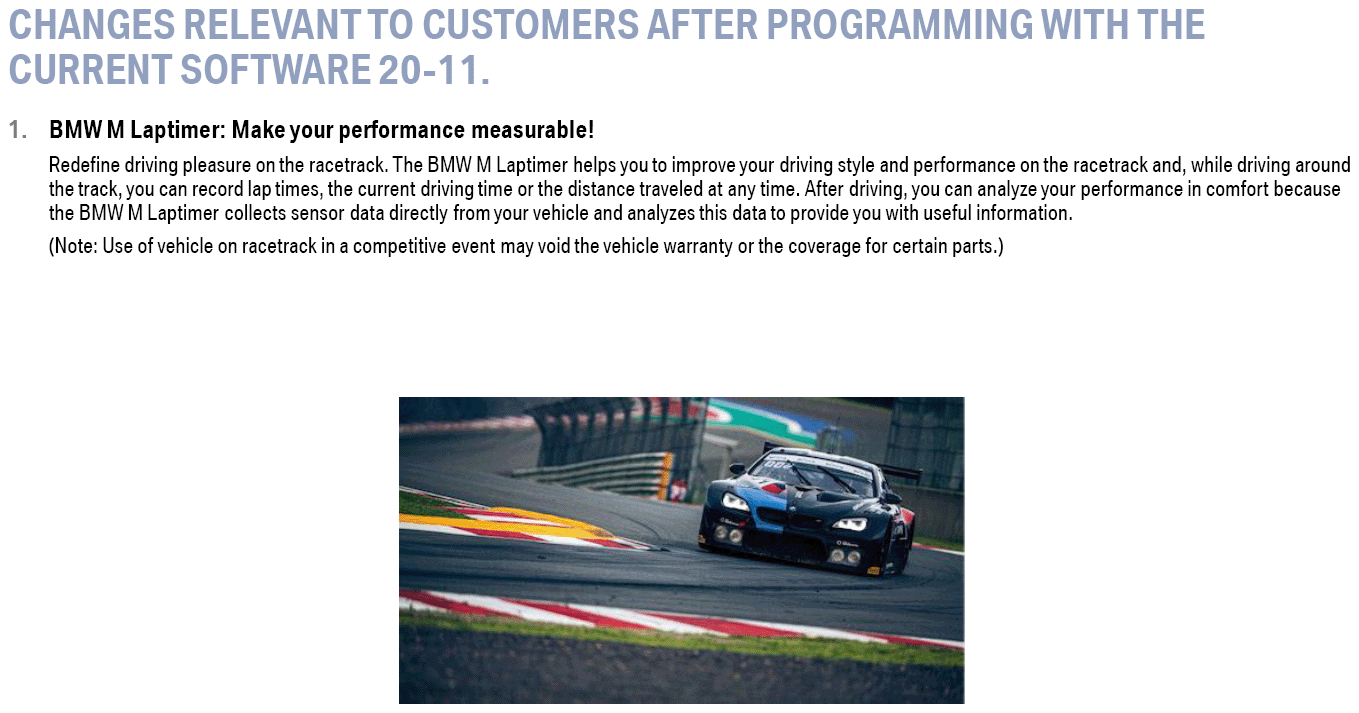

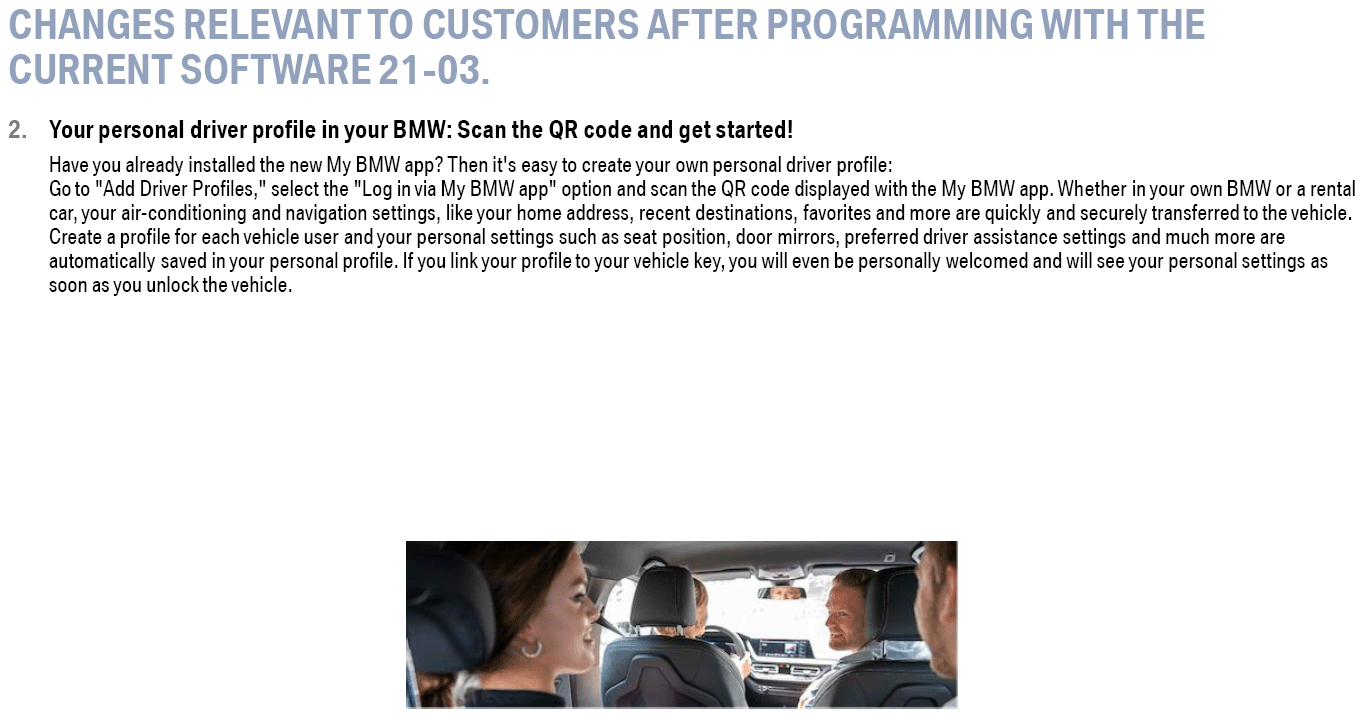

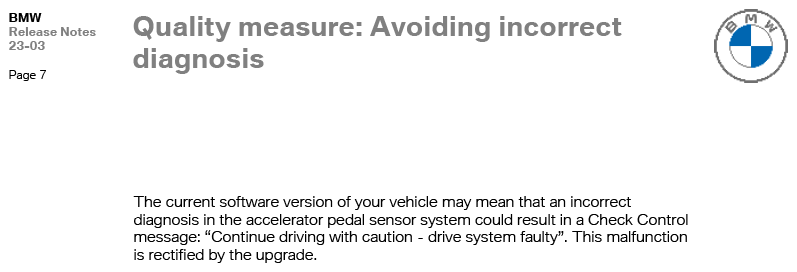

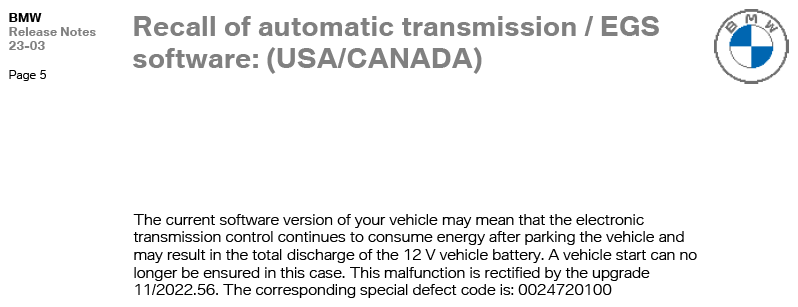

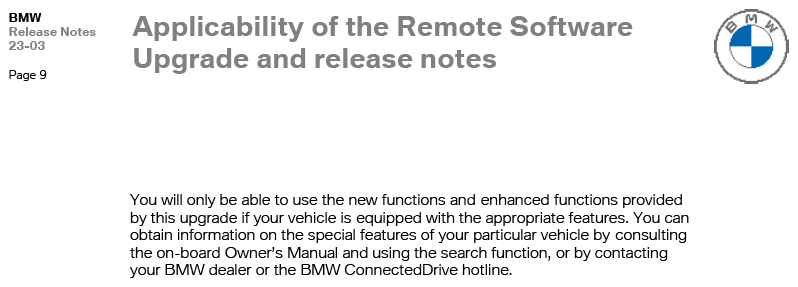

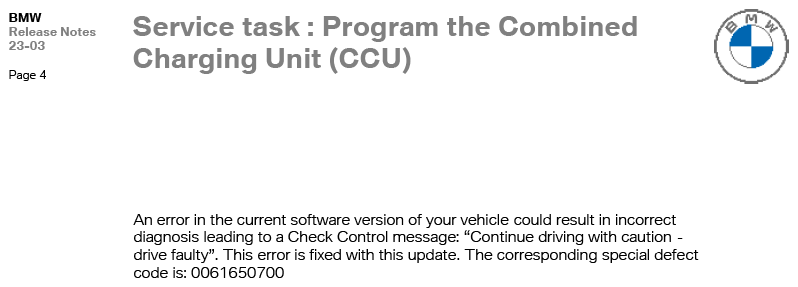

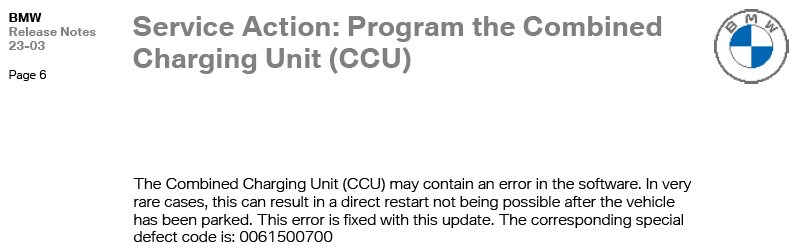

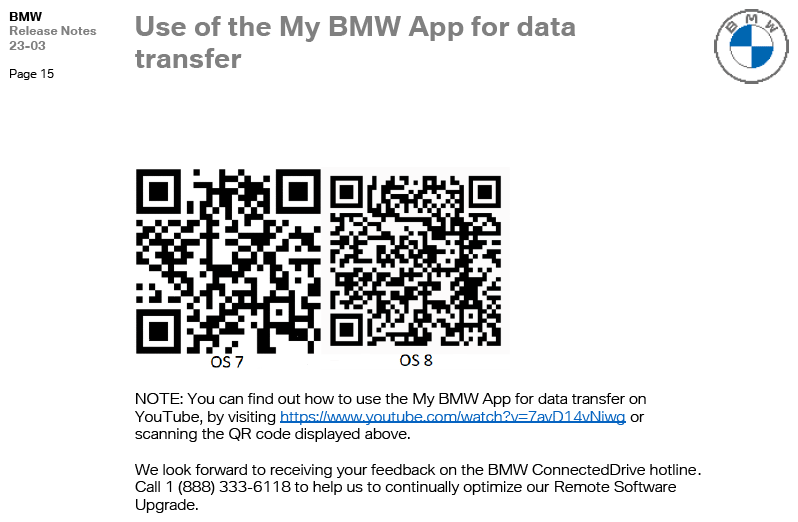

The release notes, showing all potential features per RSU Rollout:
- Are also published in the BMW TIS for workshop access
- Are attached to this Bulletin
- Include enhanced information-The "control criteria" describing which vehicle configuration (E-Series, I-Level, option code, etc.) criteria are required per described feature
The release notes version with control criteria is not intended to be handed over to customers.
INFORMATION
This overview is for internal use only and is not intended to be circulated to customers. Moreover, it only contains the most important changes and is therefore incomplete.
QUESTIONS REGARDING THIS BULLETIN
| Technical inquiries | Submit feedback at the top of this bulletin |
| Warranty inquiries | Submit an IDS ticket to the Warranty Department or use the chat available in the Warranty Documentation Portal |
| Parts inquiries | Submit an IDS ticket to the Parts Department |
Supporting Materials
picture_as_pdf B09 02 21 Attachment 1.pdf
