Creating Ground Connection On Drive Module Rep-Rep-RAI0141-4105503 - V.5
Protective measures!
- Wear safety goggles
- Wear protective gloves
Overview of parts:
| Material | BMW part number | Remarks |
|---|---|---|
| Blind rivet nut M8 | 39 20 6 869 531 | Clamping area 3 to 4.5 mm |
| M8 screw | 07 12 9 904 655 | M8x12 |
| Seam sealing | Refer to the list CONSUMABLE . |

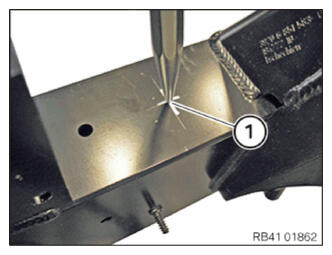

Mark position of the hole (1) according to repair instructions and punch-mark component.
IMPORTANT:
If the specified drill bit diameter is not observed:
- the knurling on the blind rivet nut is rendered useless
- the component will be damaged when the blind rivet nut is set
Drill a hole (1) with the specified diameter and deburr it; predrill with a smaller drill if necessary.

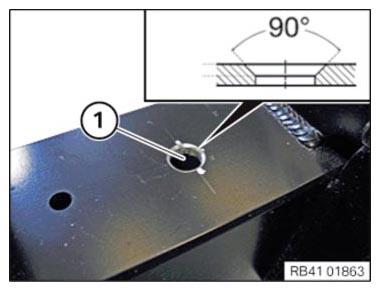

Countersink hole (1).
Countersink depth 2 mm.
| Blind rivet nut | Drill diameter in mm |
|---|---|
| M8 | 11.0 |

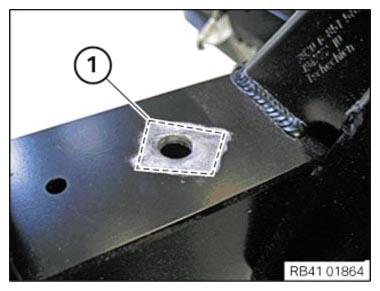

Grind area (1) to the bare metal.
Hand-held riveting device MB512 (sourcing reference BMW WORKSHOP EQUIPMENT CATALOG )
IMPORTANT:
Follow manufacturer's operating instructions.
Make sure blind rivet nut correctly contacts component.
Make sure blind rivet nut correctly contacts component.

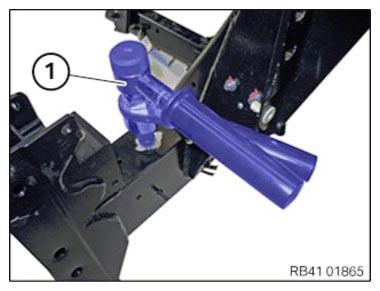

Set blind rivet nut with hand-held rivet device (1).

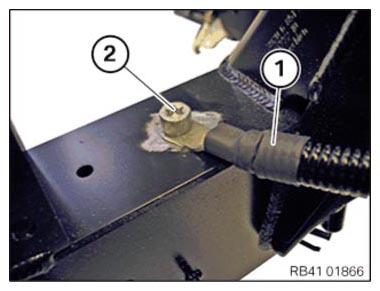

Secure grounding cable (1) with screw (2).
Screws M8 tightening torque 41 11 6AZ .
Complete seal of screw (2) and cable head of ground cable (1) with seam sealing.
