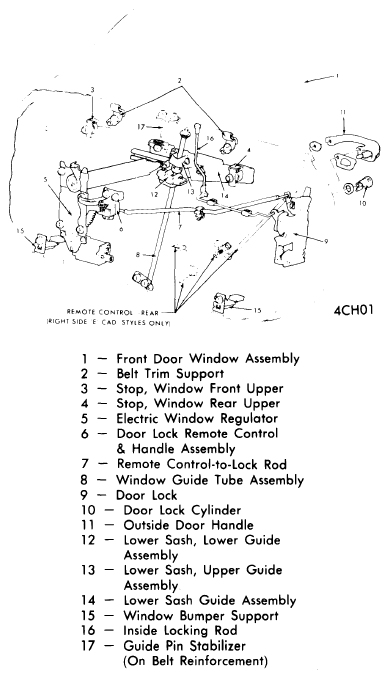

Front Door Window Regulator Removal & Installation: Notes
NOTE:
For body identification see Model Identification Chart.
SAFETY NOTE - After removing regulator and motor assembly, lock sector gear to back plate before removing motor as follows: Drill a 1/8" hole through sector gear and back plate. Do not drill closer than 1/2" to edge of sector gear. Install a suitable metal screw (3/4" in length) to lock gear, then remove motor. This must be done to prevent personal injury.
