Window Motor

Check power feed wire to motor terminals, if power is available, check motor ground. Inspect window regulator and channels for possible binding. Connect a jumper wire to power source and one of the motor terminals, then connect to other motor terminal. Motor should operate window up and down, if not, replace motor.

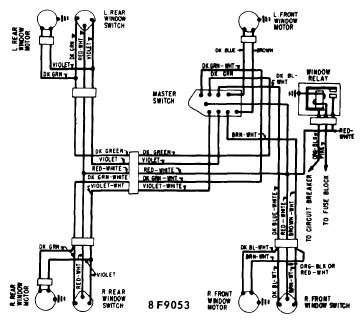

Fig 1: "C" "E" Body Power Window Wiring Diagram (Typical)

Courtesy of GENERAL MOTORS COMPANY

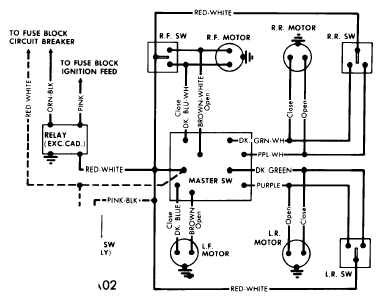

Fig 2: "A" Body 4 Dr. Power Window Wiring Diagram

Courtesy of GENERAL MOTORS COMPANY
