Electronic Level Control: Adjustment

Attach link to arm and loosen lock nut. See Fig 1.

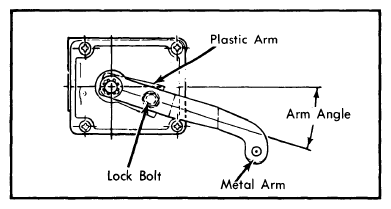

Fig 1: Height Sensor Adjustment
Courtesy of GENERAL MOTORS COMPANY
To increase vehicle riding height, move plastic arm upward and tighten lock nut.
NOTE: If adjustment is used up, check riding height.
To lower riding height, loosen lock nut and move plastic arm down. Tighten lock nut.
If adjustment can not be made, check for incorrect sensor being installed.

HEIGHT SENSOR IDENTIFICATION

Application

Code

American Motors

⁽¹⁾

Buick

Century

Century Wagon

Electra, LeSabre

Estate Wagon

Riviera

Cadillac

Eldorado

Seville

DeVille

Limousine

Oldsmobile

Cutlass Salon & Brougham

Cutlass Supreme & Brougham

Cutlass Wagon

88 & 98

88 Wagon

Toronado

Pontiac

LeMans Wagon

Catalina & Bonneville

Catalina & Bonneville Wagon

Grand Prix

⁽¹⁾	Not Available
