Diagnostic Procedures

Follow the sequence given in the following "Diagnostic Charts" until proper problem identification and correction can be made. Refer to appropriate wiring diagrams in this article and other illustrations to assist in diagnosis.

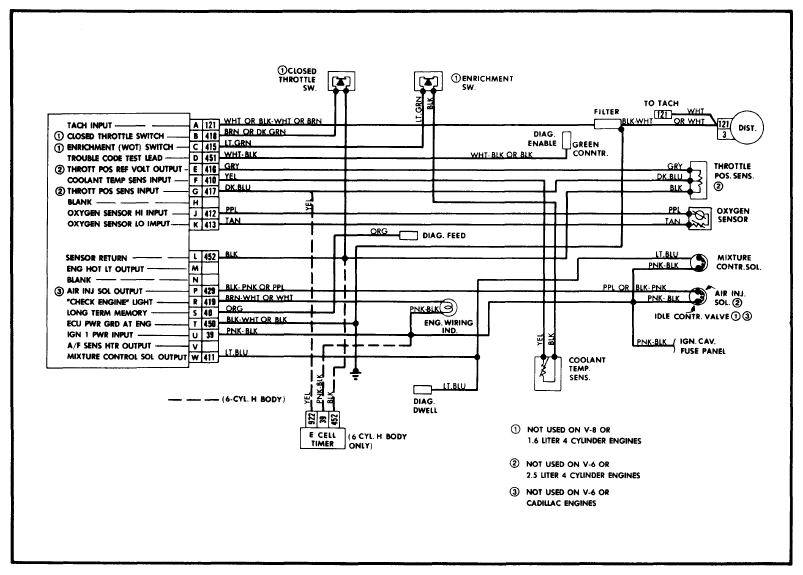

Fig 1: C-4 Wiring Diagram for 1980 4-Cyl., V-6 ("H" Body) and V8 Models

G09339827

Courtesy of GENERAL MOTORS COMPANY

Fig 2: C-4 Wiring Diagram for 1980 V-6 Models - Except "H" Body

G09339828

Courtesy of GENERAL MOTORS COMPANY

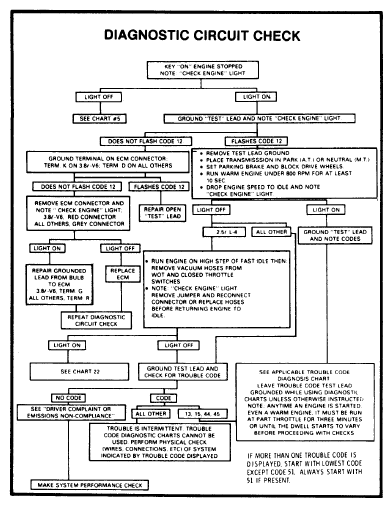

Fig 3: DIAGNOSTIC CIRCUIT CHECK

G09339829

Courtesy of GENERAL MOTORS COMPANY

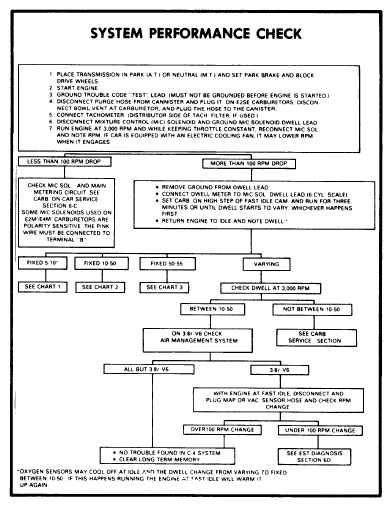

Fig 4: SYSTEM PERFORMANCE CHECK

G09339830

Courtesy of GENERAL MOTORS COMPANY

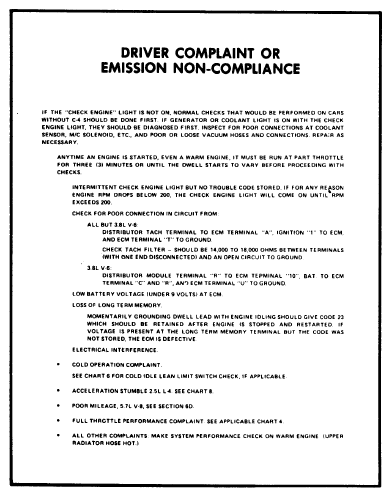

Fig 5: DRIVER COMPLAINT OR EMISSION NON-COMPLIANCE

G09339831

Courtesy of GENERAL MOTORS COMPANY

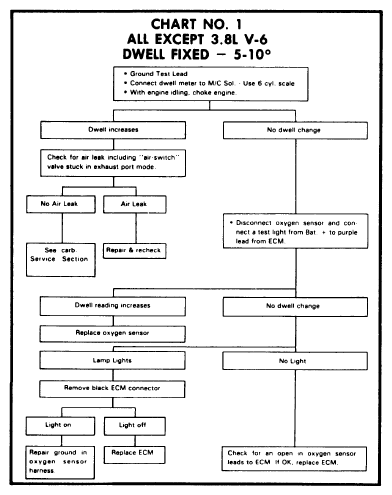

Fig 6: CHART NO. 1 ALL EXCEPT 3.8L V-6 DWELL FIXED - 5-10°

G09339832

Courtesy of GENERAL MOTORS COMPANY

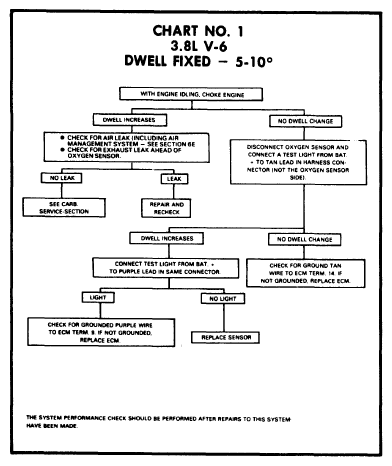

Fig 7: CHART NO. 1 3.8L V-6 DWELL FIXED - 5-10°

G09339833

Courtesy of GENERAL MOTORS COMPANY

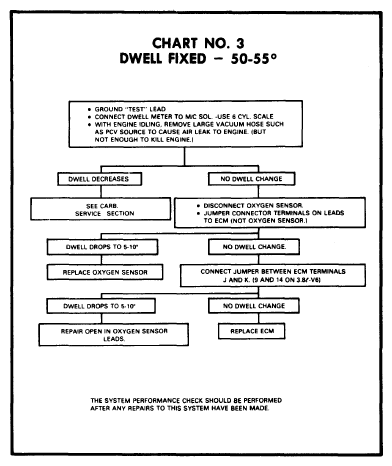

Fig 8: CHART NO. 3 DWELL FIXED - 50-55°

G09339834

Courtesy of GENERAL MOTORS COMPANY

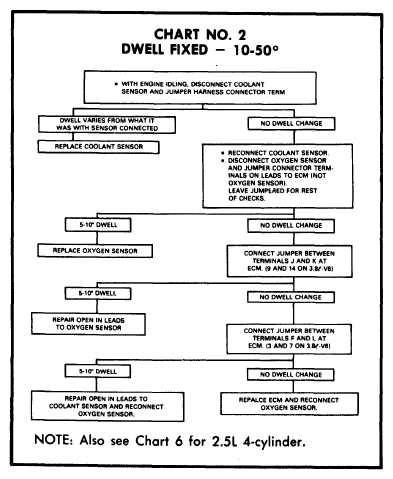

Fig 9: CHART NO. 2 DWELL FIXED - 10-50°

G09339835

Courtesy of GENERAL MOTORS COMPANY

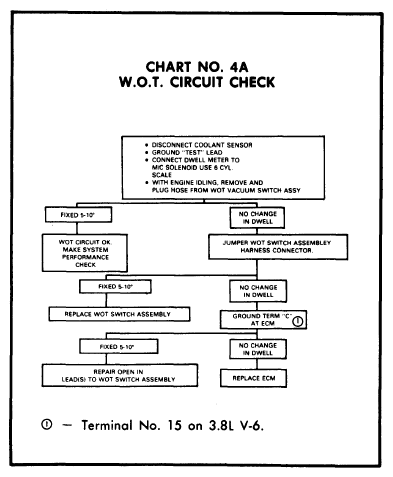

Fig 10: CHART NO. 4A W.O.T. CIRCUIT CHECK

G09339836

Courtesy of GENERAL MOTORS COMPANY

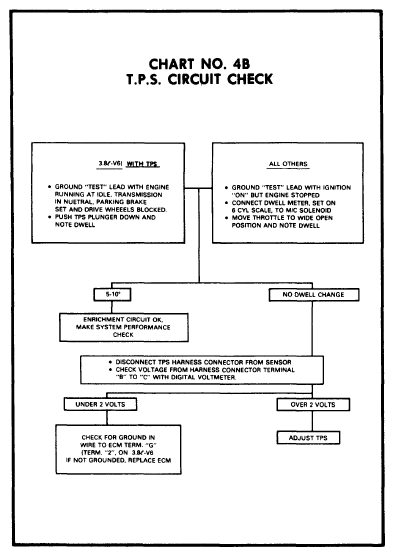

Fig 11: CHART NO. 48 T.P.S. CIRCUIT CHECK

G09339837

Courtesy of GENERAL MOTORS COMPANY

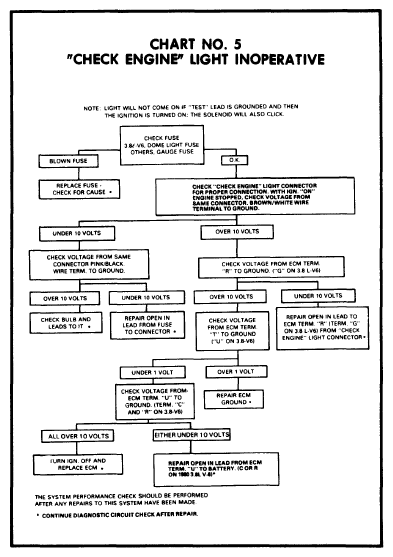

Fig 12: CHART O. 5 "CHECK ENGINE" LIGHT INOPERATIVE

G09339838

Courtesy of GENERAL MOTORS COMPANY

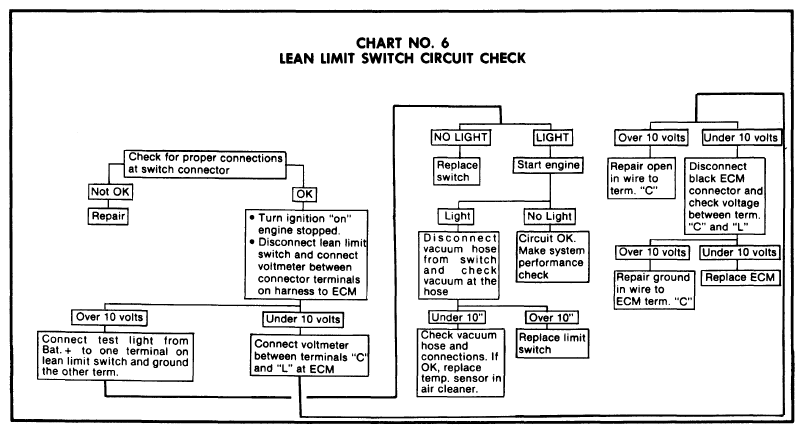

Fig 13: CHART NO. 6 LEAN LIMIT SWITCH CIRCUIT CHECK

G09339839

Courtesy of GENERAL MOTORS COMPANY

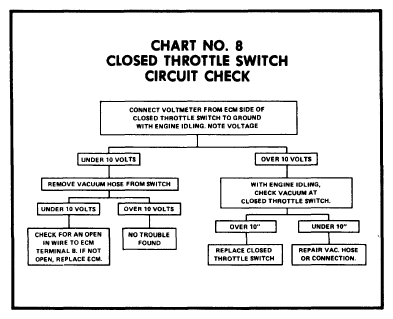

Fig 14: CHART NO. 8 CLOSED THROTTLE SWITCH CIRCUIT CHECK

G09339840

Courtesy of GENERAL MOTORS COMPANY

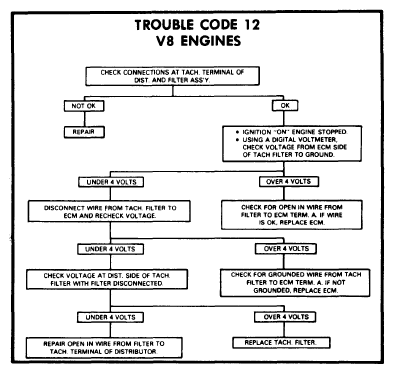

Fig 15: TROUBLE CODE 12 V8 ENGINES

G09339841

Courtesy of GENERAL MOTORS COMPANY

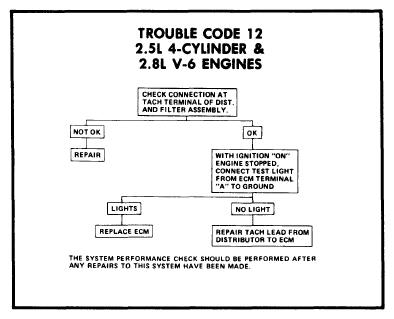

Fig 16: TROUBLE CODE 12 2.5L 4-CYLINDER & 2.8L V-6 ENGINES

G09339842

Courtesy of GENERAL MOTORS COMPANY

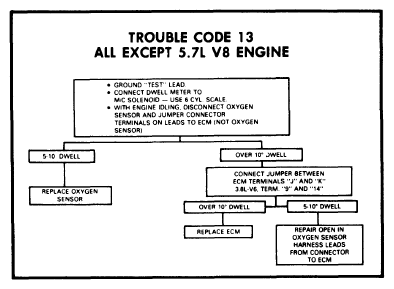

Fig 17: TROUBLE CODE 13 ALL EXCEPT 5.7L V8 ENGINE

G09339843

Courtesy of GENERAL MOTORS COMPANY

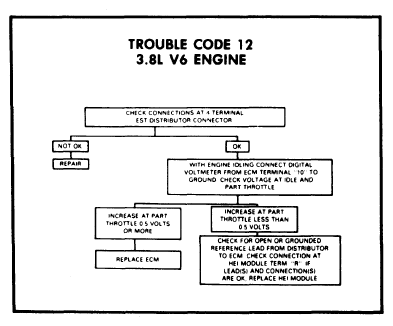

Fig 18: TROUBLE CODE 12 3.8L V6 ENGINE

G09339844

Courtesy of GENERAL MOTORS COMPANY

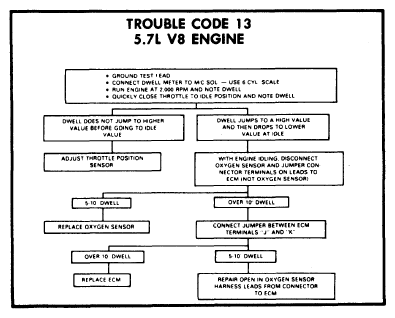

Fig 19: TROUBLE CODE 13 5.7L V8 ENGINE

G09339845

Courtesy of GENERAL MOTORS COMPANY

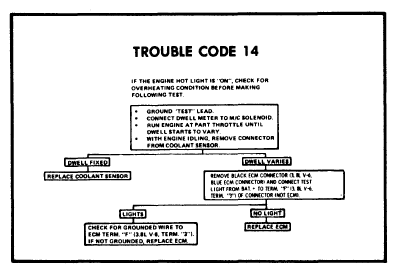

Fig 20: TROUBLE CODE 14

G09339846

Courtesy of GENERAL MOTORS COMPANY

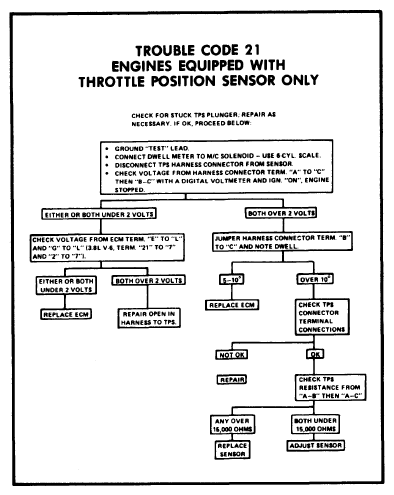

Fig 21: TROUBLE CODE 21 ENGINES EQUIPPED WITH THROTTLE POSITION SENSOR ONLY

G09339847

Courtesy of GENERAL MOTORS COMPANY

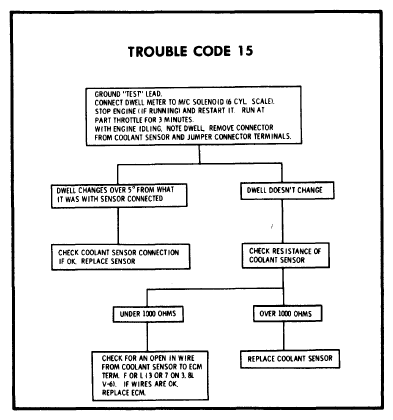

Fig 22: TROUBLE CODE 15

G09339848

Courtesy of GENERAL MOTORS COMPANY

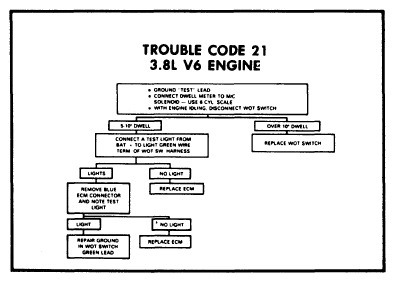

Fig 23: TROUBLE CODE 21 3.8L V6 ENGINE

G09339849

Courtesy of GENERAL MOTORS COMPANY

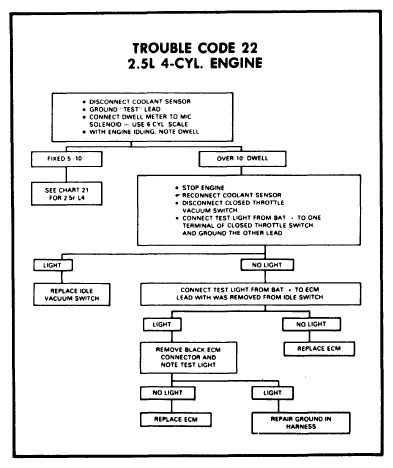

Fig 24: TROUBLE CODE 22 2.5L 4-CYL. ENGINE

G09339850

Courtesy of GENERAL MOTORS COMPANY

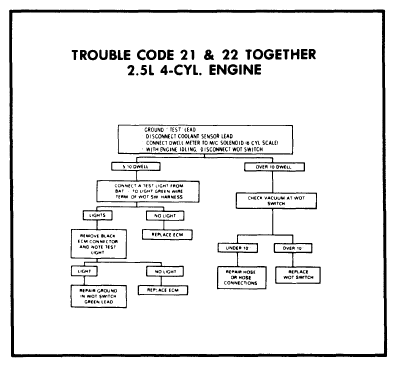

Fig 25: TROUBLE CODE 21 & 22 TOGETHER 2.5L 4-CYL. ENGINE

G09339851

Courtesy of GENERAL MOTORS COMPANY

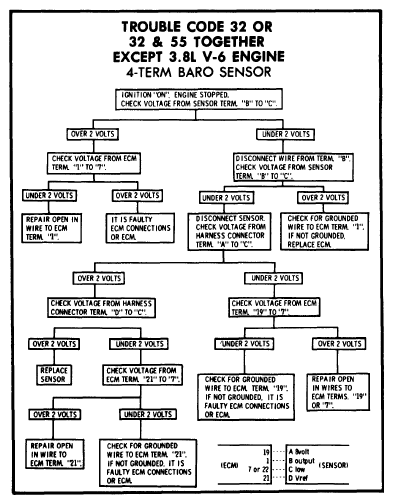

Fig 26: TROUBLE CODE 32 OR 32 & 55 TOGETHER EXCEPT 3.8L V-6 ENGINE 4-TERM BARO SENSOR

G09339852

Courtesy of GENERAL MOTORS COMPANY

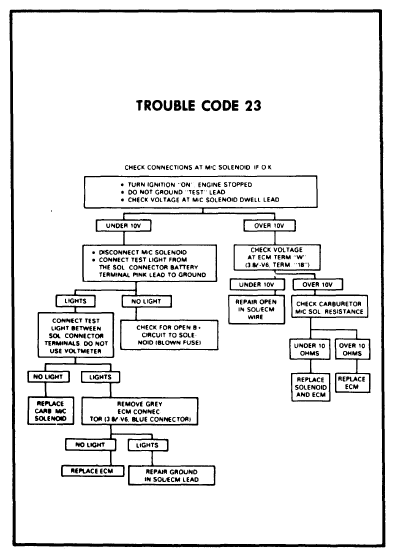

Fig 27: TROUBLE CODE 23

G09339853

Courtesy of GENERAL MOTORS COMPANY

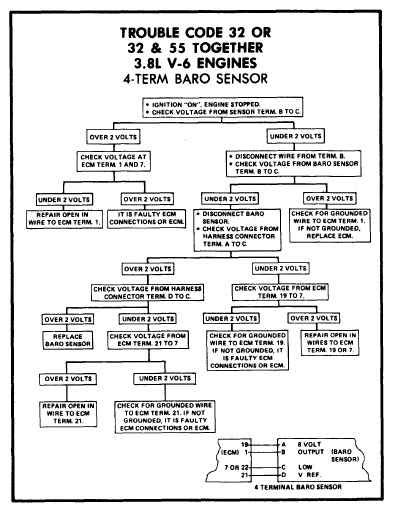

Fig 28: TROUBLE CODE 32 OR 32 & 55 TOGETHER 3.8L V-6 ENGINES 4-TERM BARO SENSOR

G09339854

Courtesy of GENERAL MOTORS COMPANY

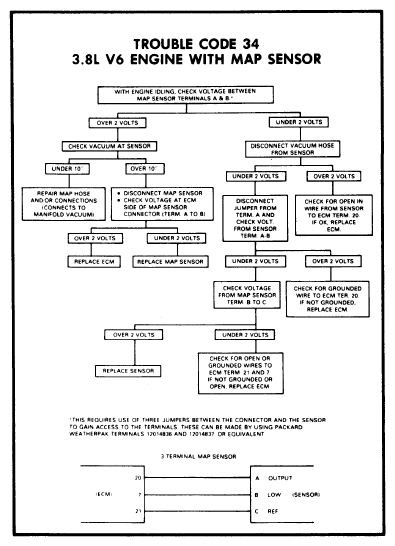

Fig 29: TROUBLE CODE 34 3.8L V6 ENGINE WITH MAP SENSOR

G09339855

Courtesy of GENERAL MOTORS COMPANY

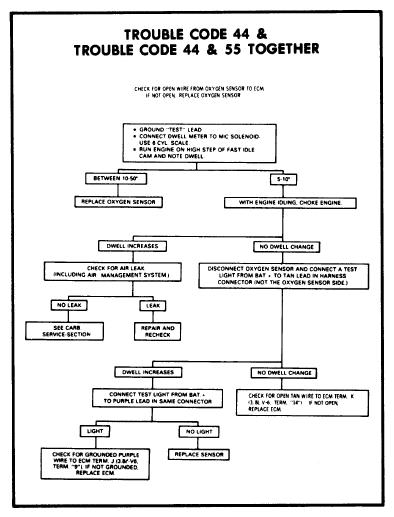

Fig 30: TROUBLE CODE 44 & TROUBLE CODE 44 & 55 TOGETHER

G09339856

Courtesy of GENERAL MOTORS COMPANY

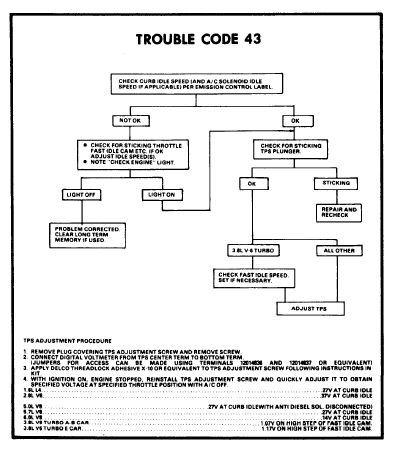

Fig 31: TROUBLE CODE 43

G09339857

Courtesy of GENERAL MOTORS COMPANY

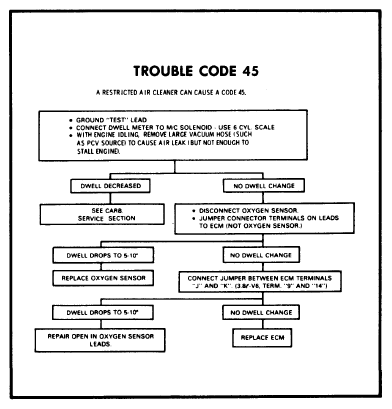

Fig 32: TROUBLE CODE 45

G09339858

Courtesy of GENERAL MOTORS COMPANY

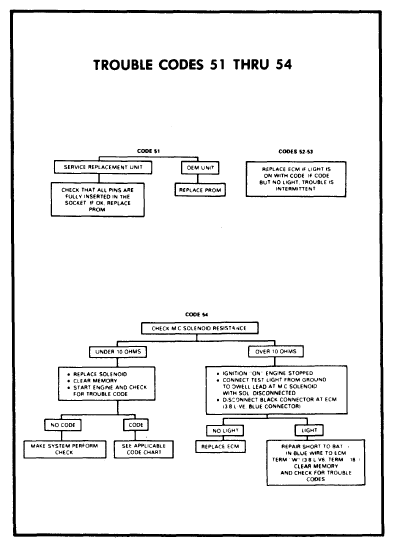

Fig 33: TROUBLE CODES 51 THRU 54

G09339859

Courtesy of GENERAL MOTORS COMPANY

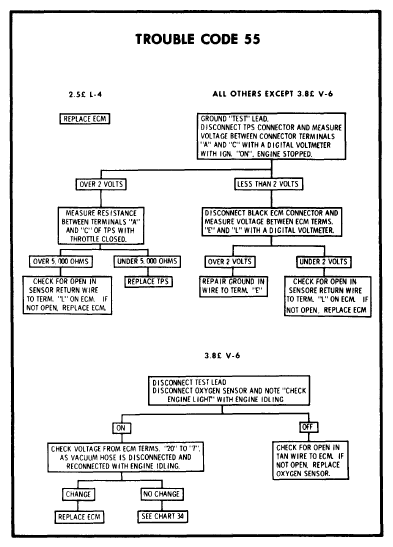

Fig 34: TROUBLE CODE 55

G09339860

Courtesy of GENERAL MOTORS COMPANY
