Transmission Controlled Spark System: Testing
A failure of the TCS system can cause either of the following problems:
- Continuous vacuum advance in 1st and 2nd gears, which would prevent proper emission control (will not meet standards).
- No vacuum advance in high gear, causing lower gas mileage.
- Connect vacuum gauge to distributor vacuum advance line at distributor. Position gauge so it can be read from driver's seat. Set parking brake, put transmission in neutral, start engine and set at 1000 RPM.
- Vacuum reading should be zero. Shift into high gear; vacuum reading should change to show vacuum present at gauge. If no vacuum, proceed to next step.

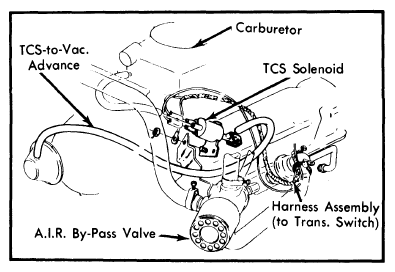

- Connect jumper wire with test light (1893 bulb or smaller) between 2 connector terminals of TCS solenoid. Transmission should still be in high gear, with engine running. Test light should be off.
- If test light is on, check for grounded wire between solenoid connector and transmission. If wire is not grounded, replace transmission switch.
- Shift transmission to neutral. Test light should come on. If not, check for open circuit. If no open exists, replace transmission switch.
- If steps 3) through 5) show system to be okay, replace TCS solenoid.
