Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Controller | Under left side of dash, near kick panel. |
| ABS Logic Module | On body wiring junction block bracket. |

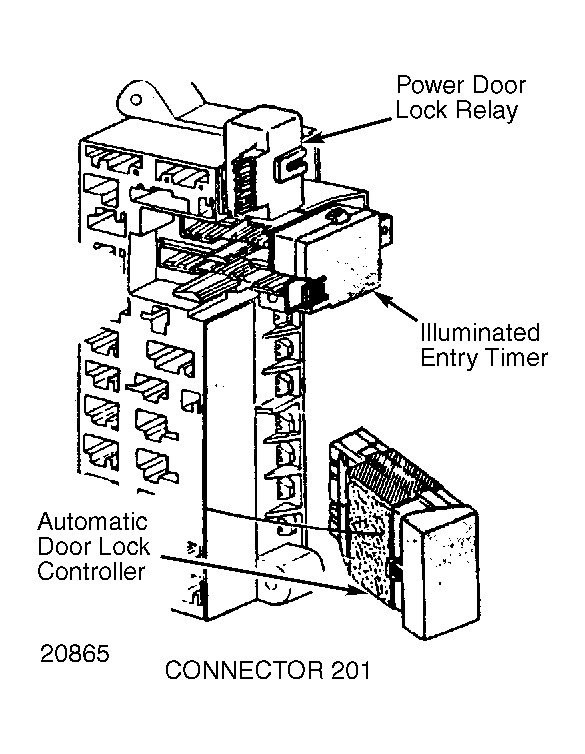

| Automatic Door Lock Controller | Behind right side of dash, on connector "C201". See Figure. |
| Body Computer Module (Cadillac) | Under right side of dash, above relay center. |
| Calibration Timer Module (Cadillac) | Behind right side of dash, near glove box. |
| Cooling Fan Control Module (Cadillac) | Behind left headlight assembly. |
| Cruise Control Module | Above accelerator pedal. |
| Digital Cluster Decoder Module | Under right side of dash, at top of connector "C201". |

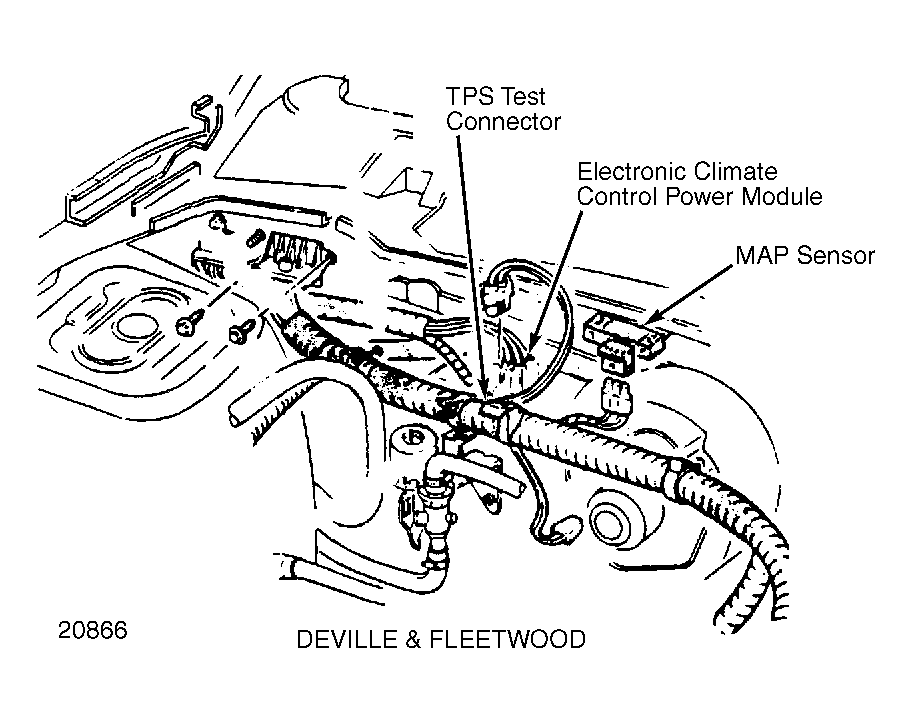

| Elect. Climate Control Power Module | On right side of firewall, above blower motor. See Figure & 7. |
| Electronic Control Module (ECM) | Behind right side of dash. |
| Elect. Climate Control Programmer | Under right side of dash, near left side of glove box. |

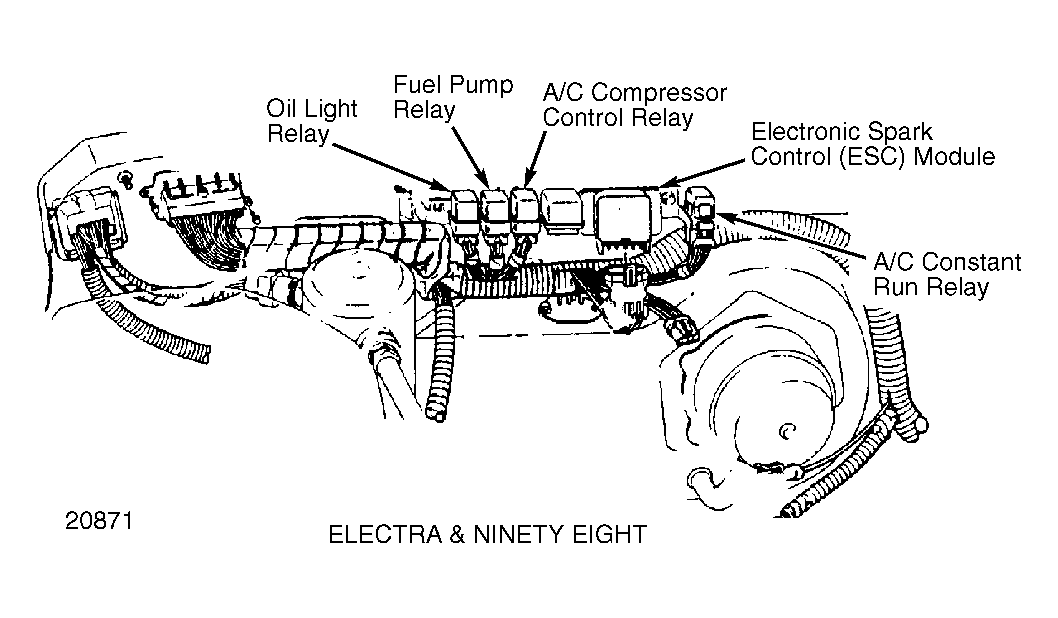

| Elect. Spark Control (ESC) Module (Electra & Ninety Eight) | On right side of firewall in engine compartment. See Figure. |
| Keyless Entry Module | In trunk, above right wheelwell. |
| Key Pad Module | In driver's door, near lock motor. |
| Multi-Function Chime Module | Behind right side of dash trim, above glove box. |
| Power Seat Memory Module | Below right side of driver's seat. |
| PRNDL Module (98 w/digital dash) | Behind glove box. |
| Sun Roof Timer Module | In windshield header above right visor. |
| Theft Deterrent Controller | Under left side of dash, to left of steering column. |
| Twilight Photocell | In right defroster grille, top of dash. |
| Twilight Sentinel | Behind right side of dash, above glove box. |

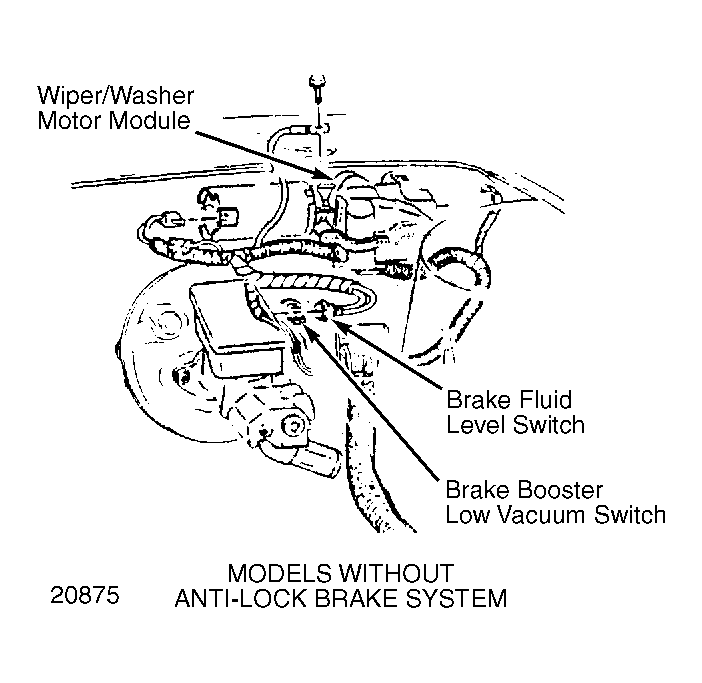

| Wiper/Washer Motor Module | On left side of firewall in engine compartment. See Figure. |
