Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| ABS Pump | On bottom of master cylinder assembly. See Figure. |

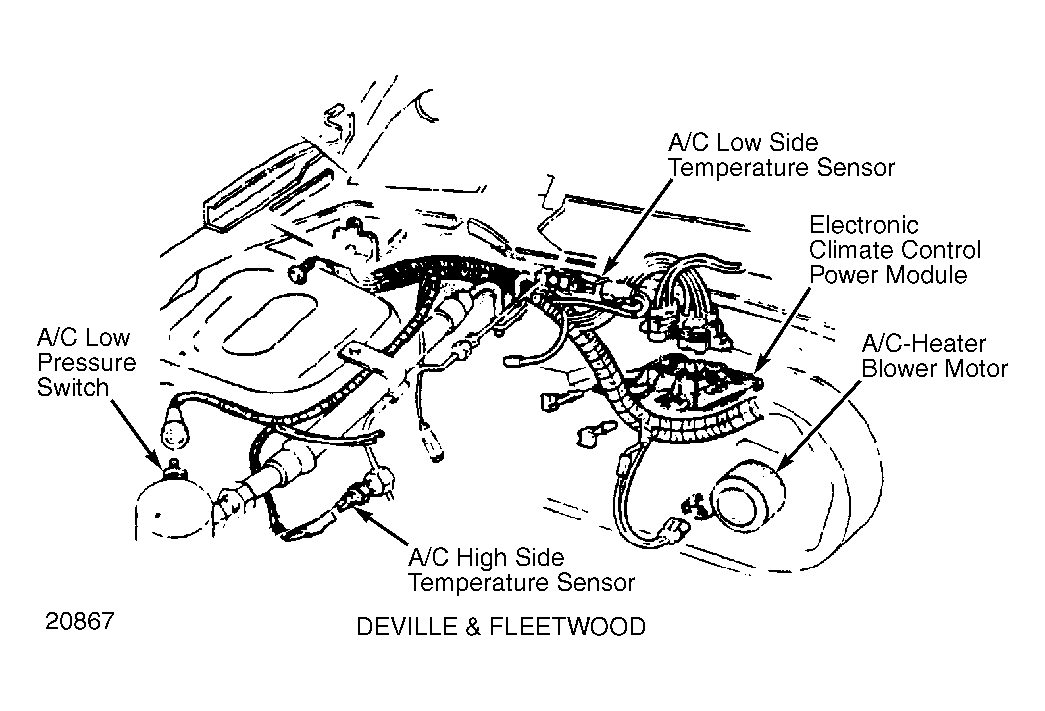

| A/C-Heater Blower Motor | On center of firewall in engine compartment. See Figure. |
| Electric Fuel Pump | In fuel tank. |
| Elect. Level Control Compressor | On left inner fender panel, in front of wheelwell. See Figure. |
| Elect. Vacuum Pump (Cadillac) | Inside left front fender, at front of vehicle. |
| Idle Speed Control Motor | On left side of throttle body. See Figure. |
| Power Antenna Motor (Except Cadillac) | On right side of trunk, behind wheelwell. |
| Power Antenna Motor (Cadillac) | On right front fender panel, behind wheelwell. |
| Power Door Lock Motor | One in rear of each door. |
| Power Mirror Motors | Two in each mirror assembly. |
| Power Seat Motor | Below front portion of front seats. |
| Power Seat Recliner Motor | In seat bottom frame. |
| Power Window Motors | One in lower center of each door. |
| Sun Roof Motor | In windshield header above right seat. |
| Trunk Pull-Down Motor | Near latch at center of trunk lid. |
