Injector Balance Test

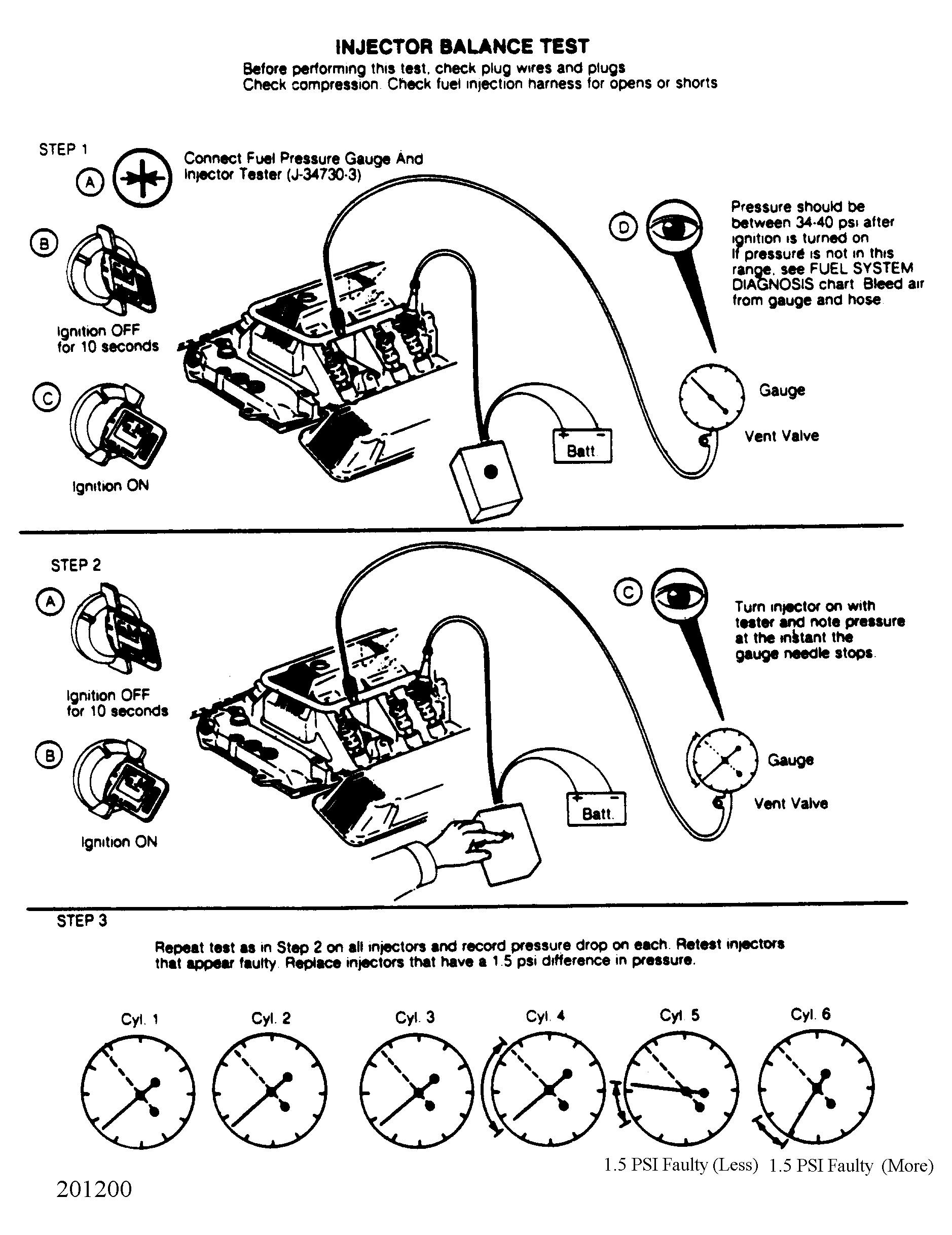

Fig 1: Injector Balance Test Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
