Camshaft Position Sensor

A Hall Effect camshaft position sensor provides the ECM with the exact position of the valves. The signal created by the camshaft position sensor is used by the ECM to properly time the fuel injection and start the spark plug firing sequence.

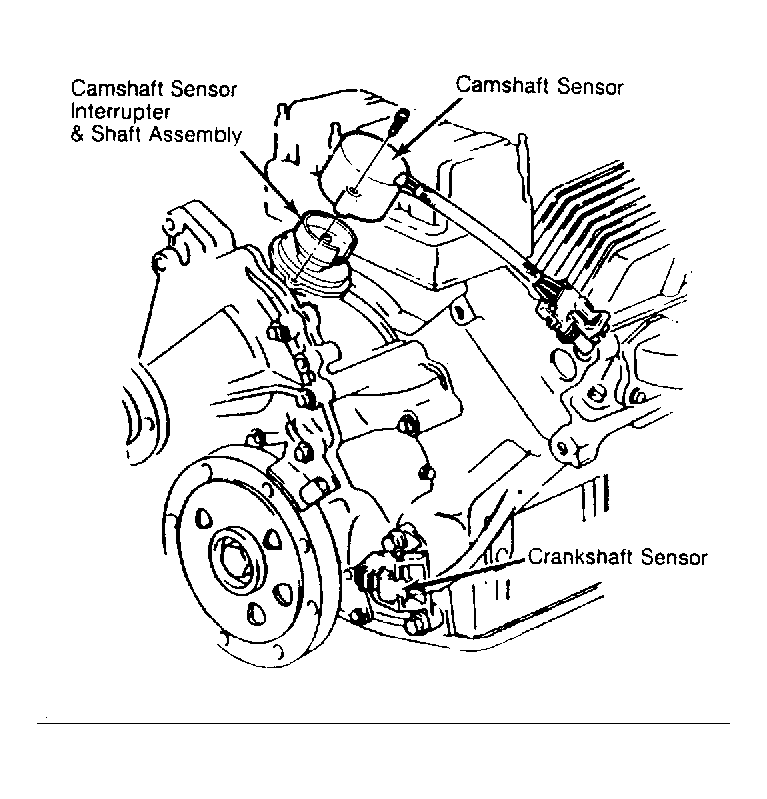

Camshaft position sensor is located on top of engine front

cover, above water pump. See Figure.
