3.3L/3.8L Component Tests: Description: Notes

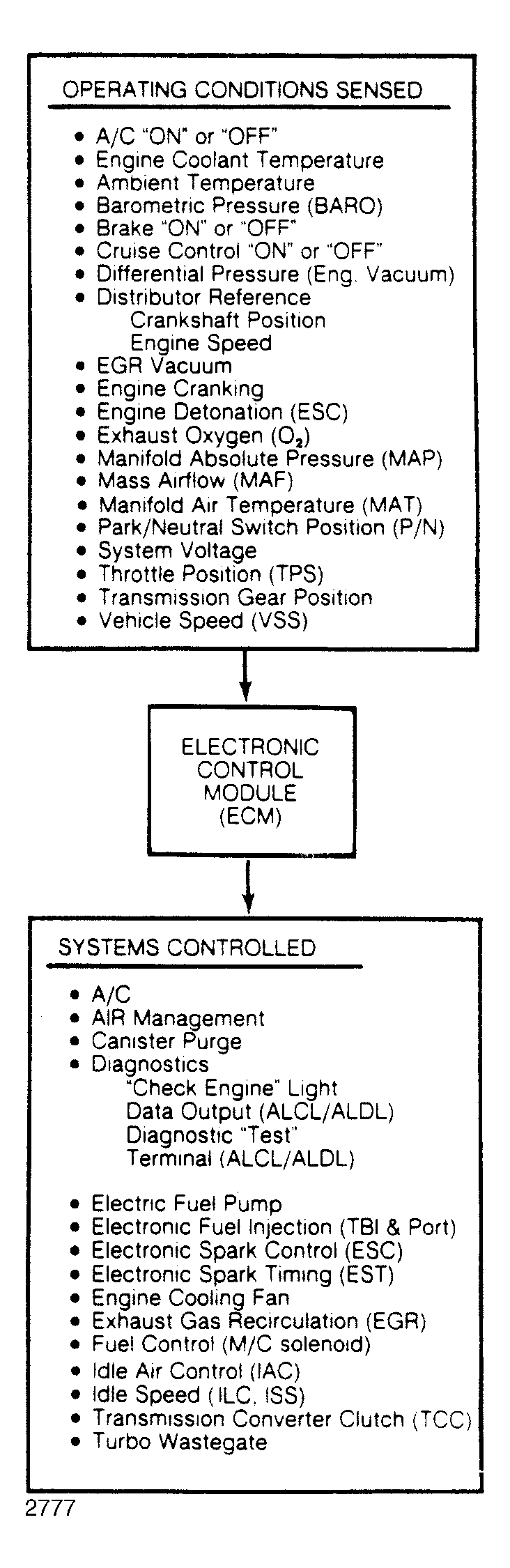

The computerized engine control system monitors as many as 19 engine/vehicle functions. See Fig 1 . This system controls engine operation and lowers exhaust emissions while maintaining fuel economy and driveability. The Electronic Control Module (ECM) is the "brain" of the CCC system.

The computerized engine control system is primarily an emission control system, designed to maintain a 14.7:1 air/fuel ratio under all operating conditions. When the ideal air/fuel ratio is maintained, the 3-way catalytic converter can control Oxides of Nitrogen (NOx), Hydrocarbon (HC) and Carbon Monoxide (CO) emissions.
