Code B122, Panel Dimming Switch Pot Circuit: Notes

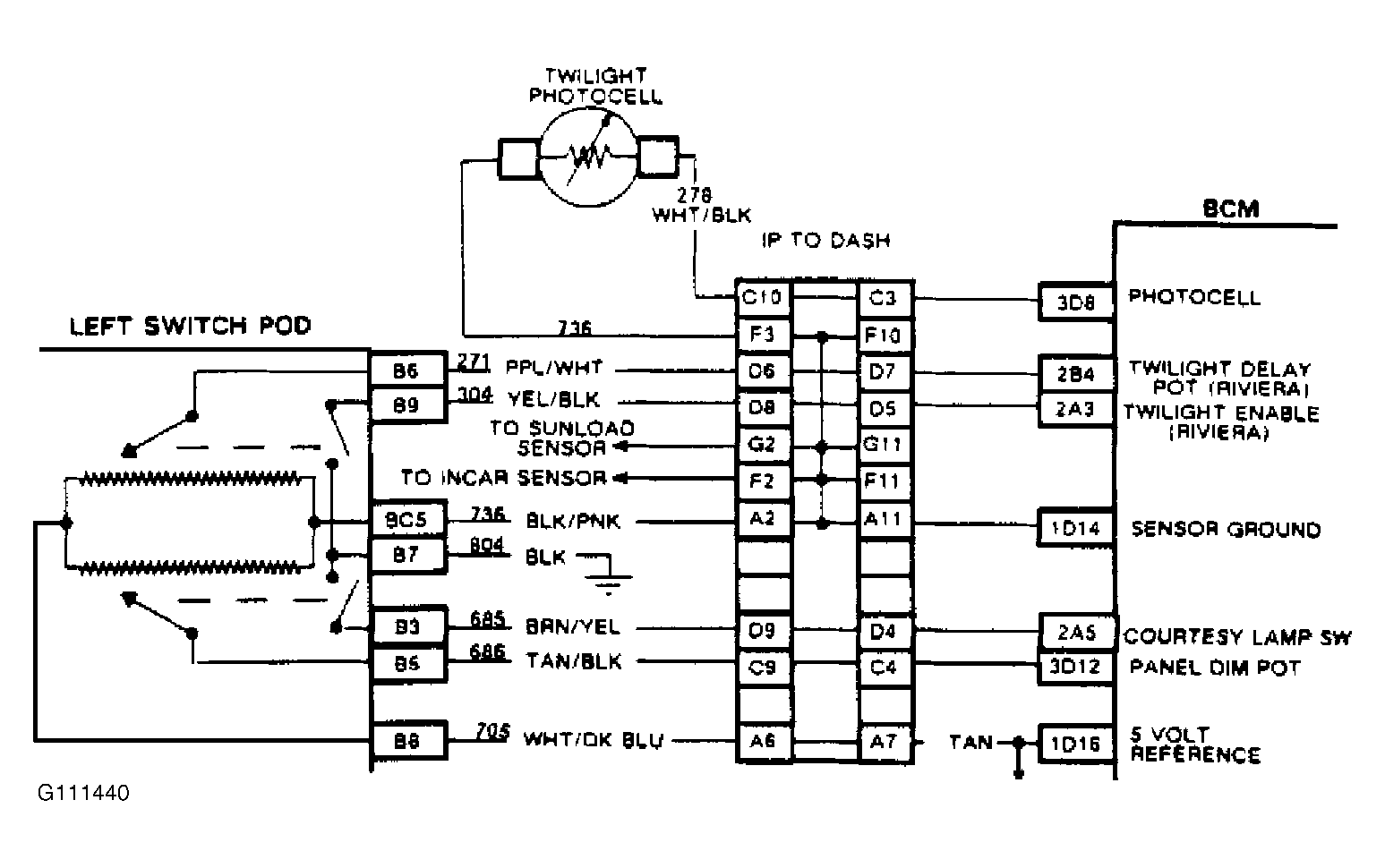

Fig 1: Code B122, Wiring Diagram (Reatta & Riviera) Panel Dimming Switch Pot Circuit

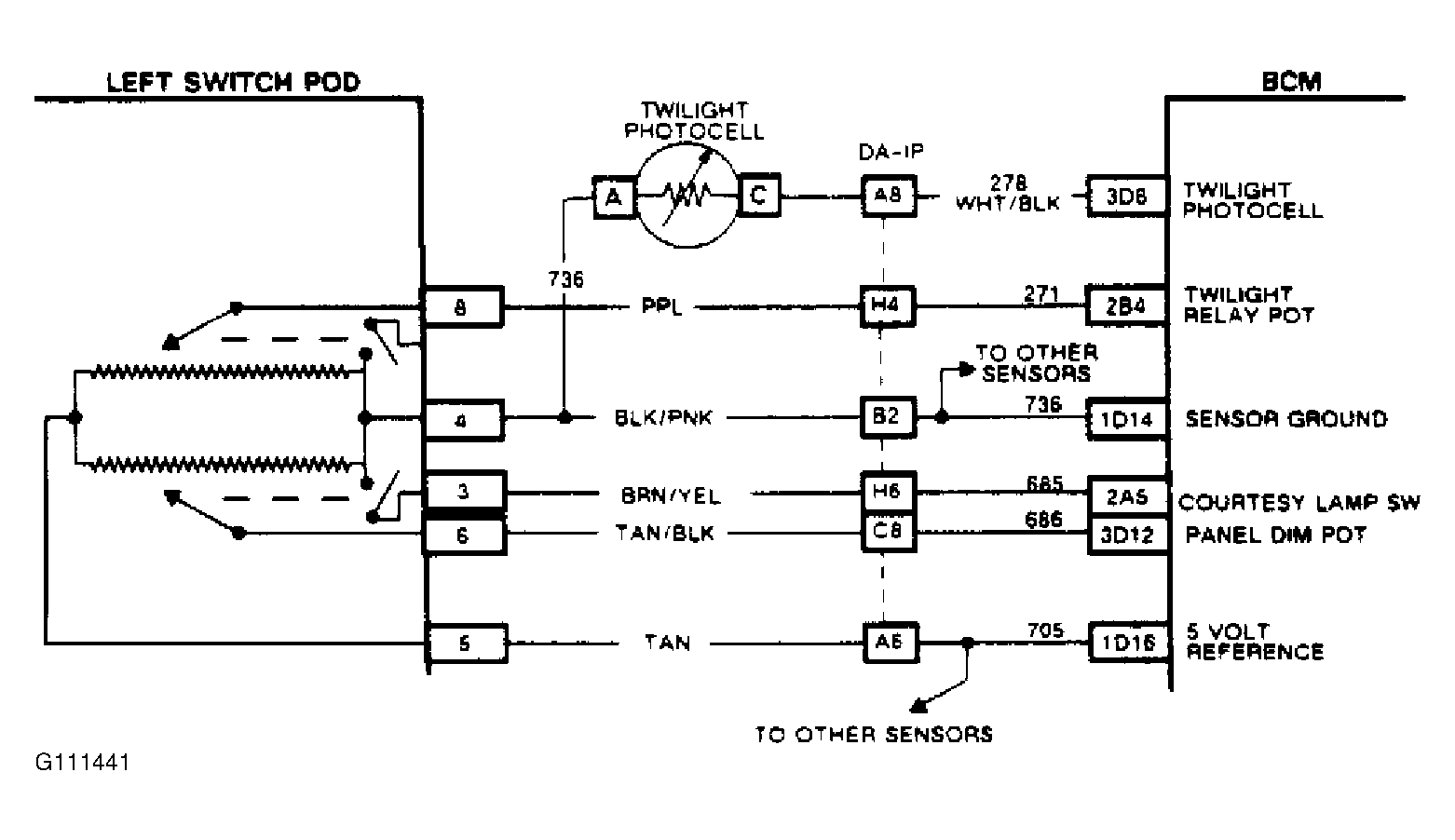

Fig 2: Code B122, Wiring Diagram (Toronado) Panel Dimming Switch Pot Circuit

The panel dimmer is a potentiometer that indicates desired display intensity to BCM. The BCM supplies voltage on circuit No. 705 and a ground on circuit No. 736 to potentiometer in left switch assembly. The wiper provides voltage signal to BCM on circuit No. 686, indicating position of slider and delay time. When slider is moved toward minimum position, its resistance increases and signal voltage decreases.

Code B122 will set, if signal voltage indicates less than 2 percent (open or grounded circuit), or greater than 98 percent (shorted to voltage). During time failure is present, a substitute delay time will be implemented to allow continued operation of interior lighting. The reading from potentiometer BD42 display will indicate actual reading.

1. Checks to see if open or grounded circuit reading is due to circuit or switch assembly. If open or grounded circuit reading changes from a short to voltage reading after jumping switch assembly terminals, BCM and wiring are okay.
2. Measuring voltage between circuit No. 705 (5 volts) and circuit No. 686 will determine if circuit No. 686 is open or shorted to ground.
3. Checks to see if short to voltage reading is due to circuit or switch assembly. If a short to voltage reading changes to an open circuit reading after disconnecting switch assembly, BCM and wiring are okay.
