Note On Intermittents

Check connections at CRT monitor and controller. If both connections are clean and tight, either CRT monitor or controller could be at fault.

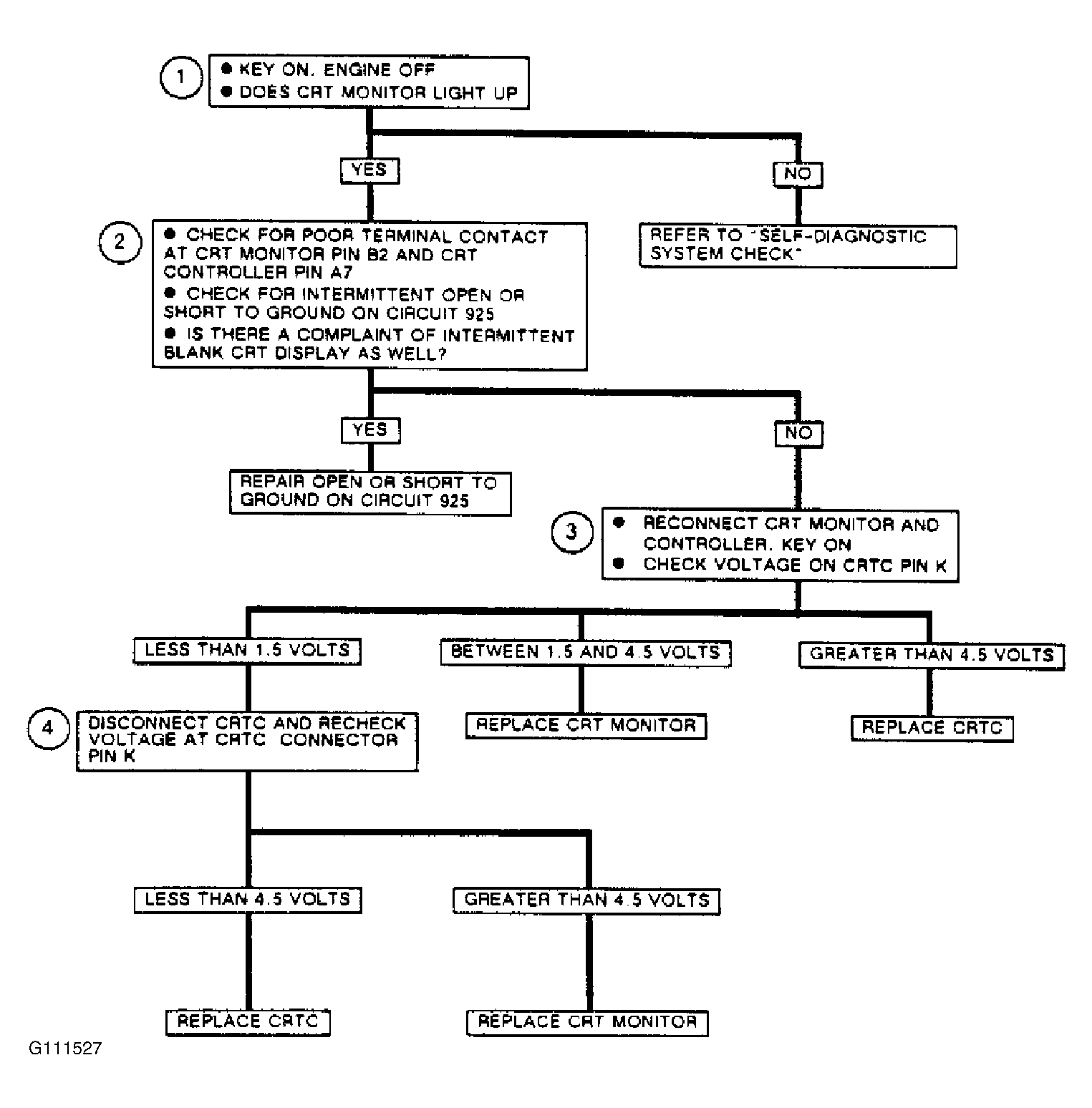

Fig 1: Code C710, Flow Chart CRTC Switching Circuit Problem
