Serial Data Circuit Multiple Intermittent Codes

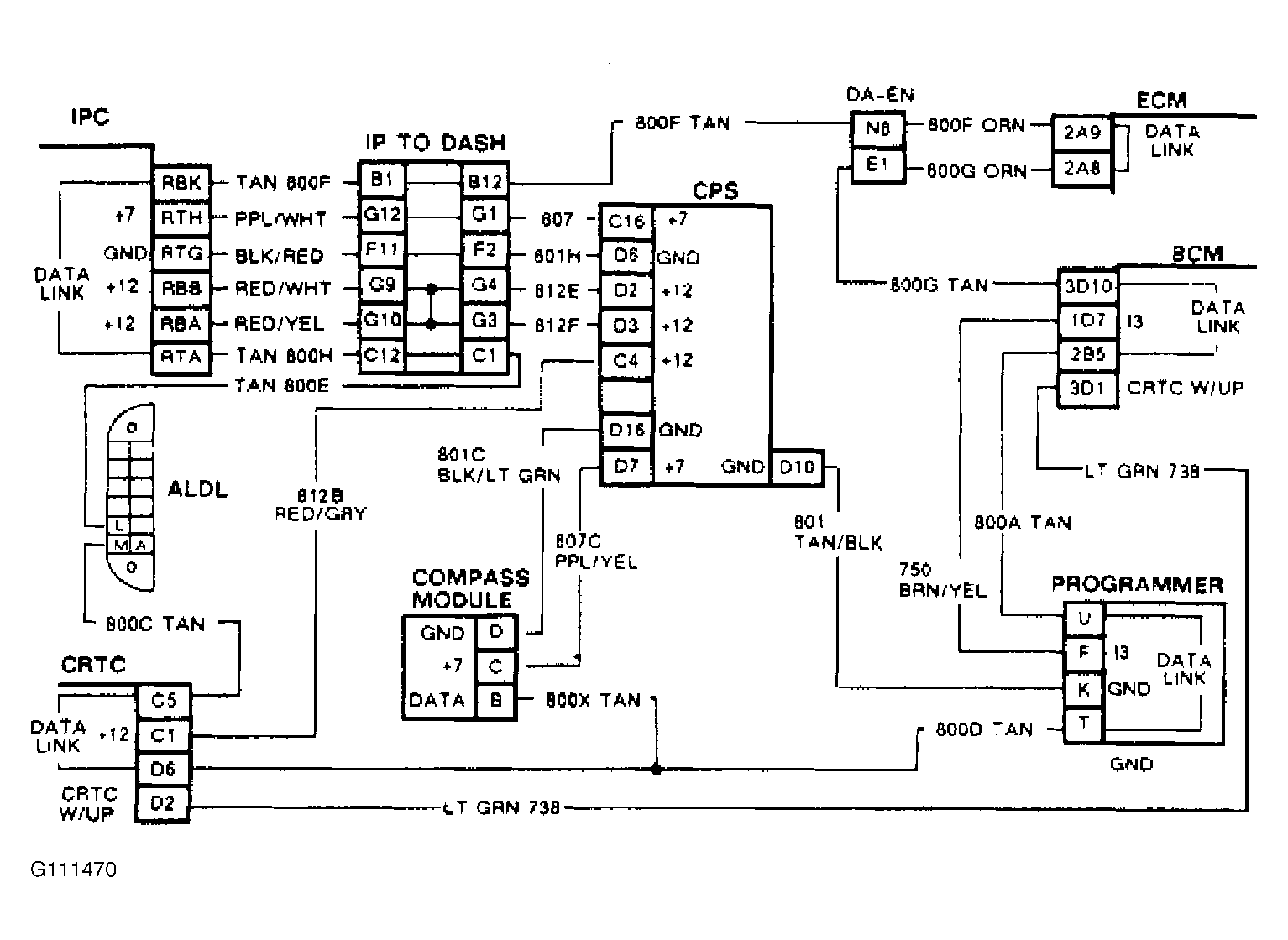

Fig 1: Serial Data, Wiring Diagram Circuit Multiple Intermittent Codes

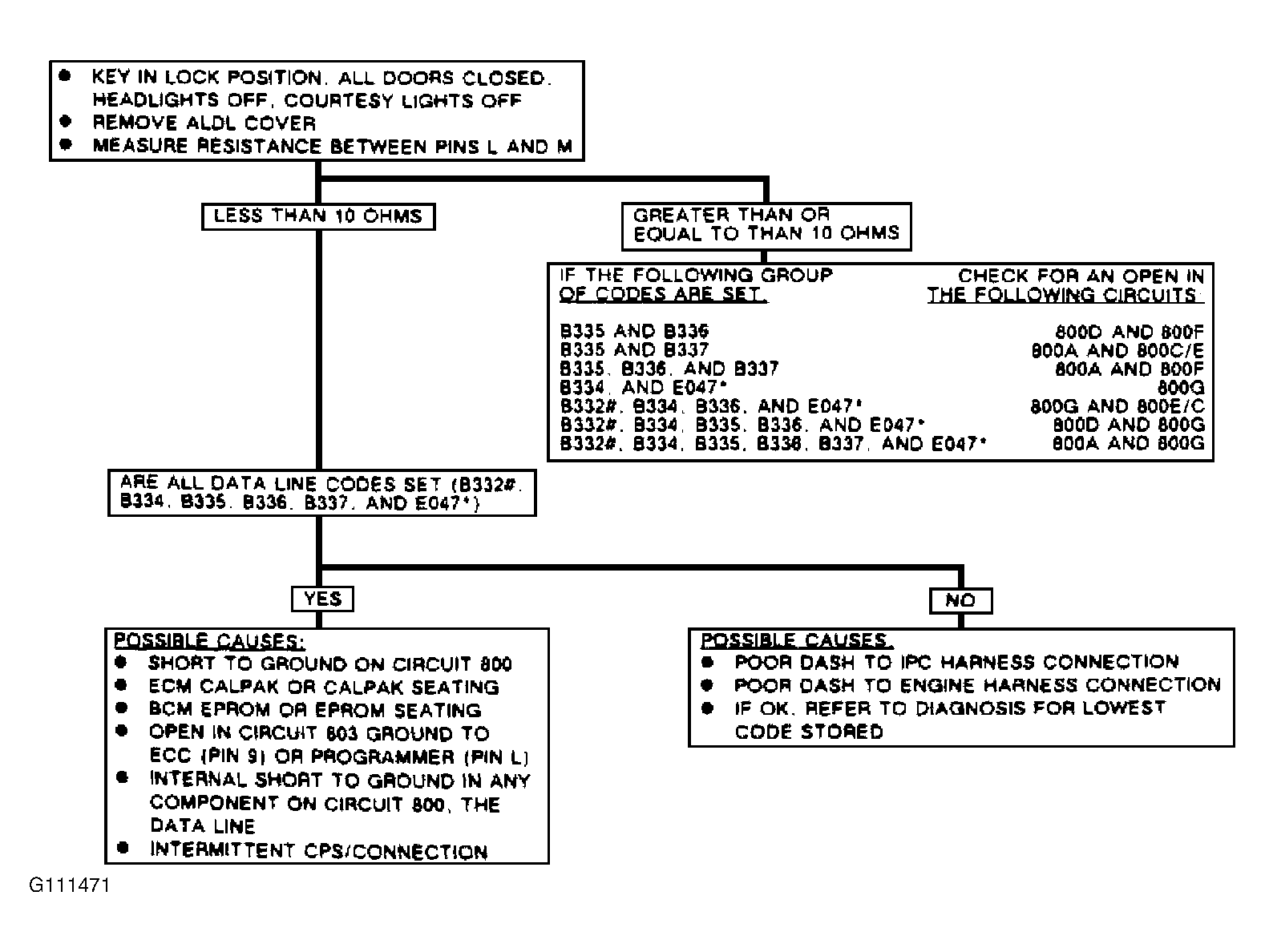

Fig 2: Serial Data, Flow Chart Circuit Multiple Intermittent Codes
