Component Locations

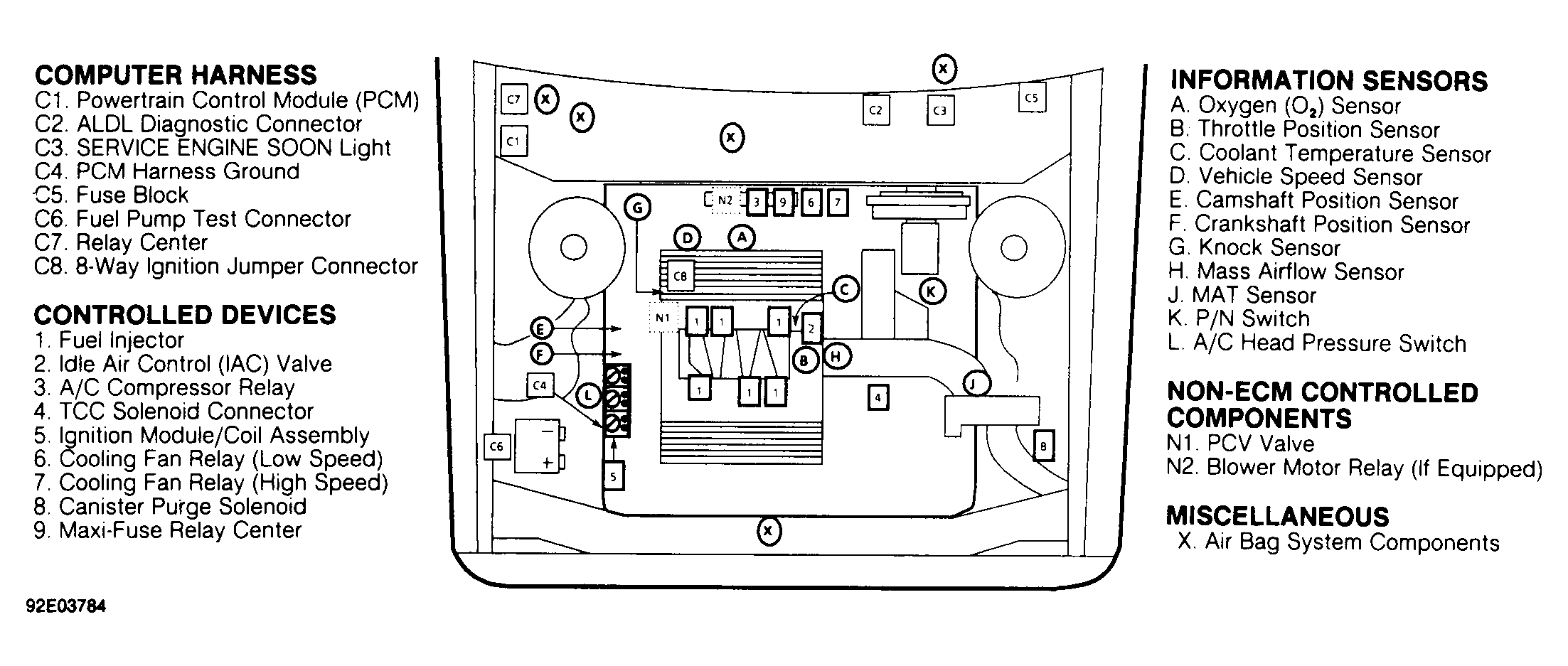

Fig 1: Component Locations (3.8L VIN L - "C" & "H" Bodies)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
