Component Locations

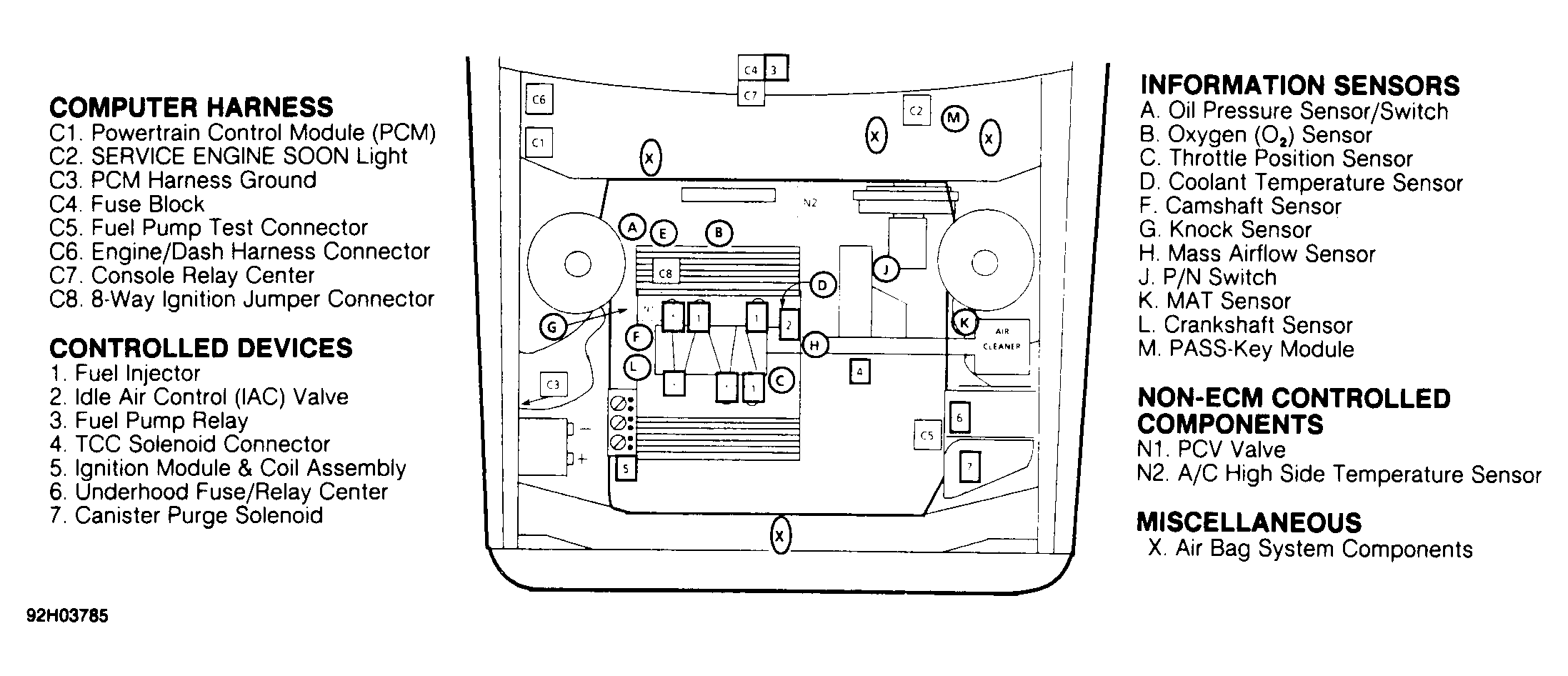

Fig 1: Component Locations, 3.8L VIN L - Riviera
Courtesy of GENERAL MOTORS CORP.

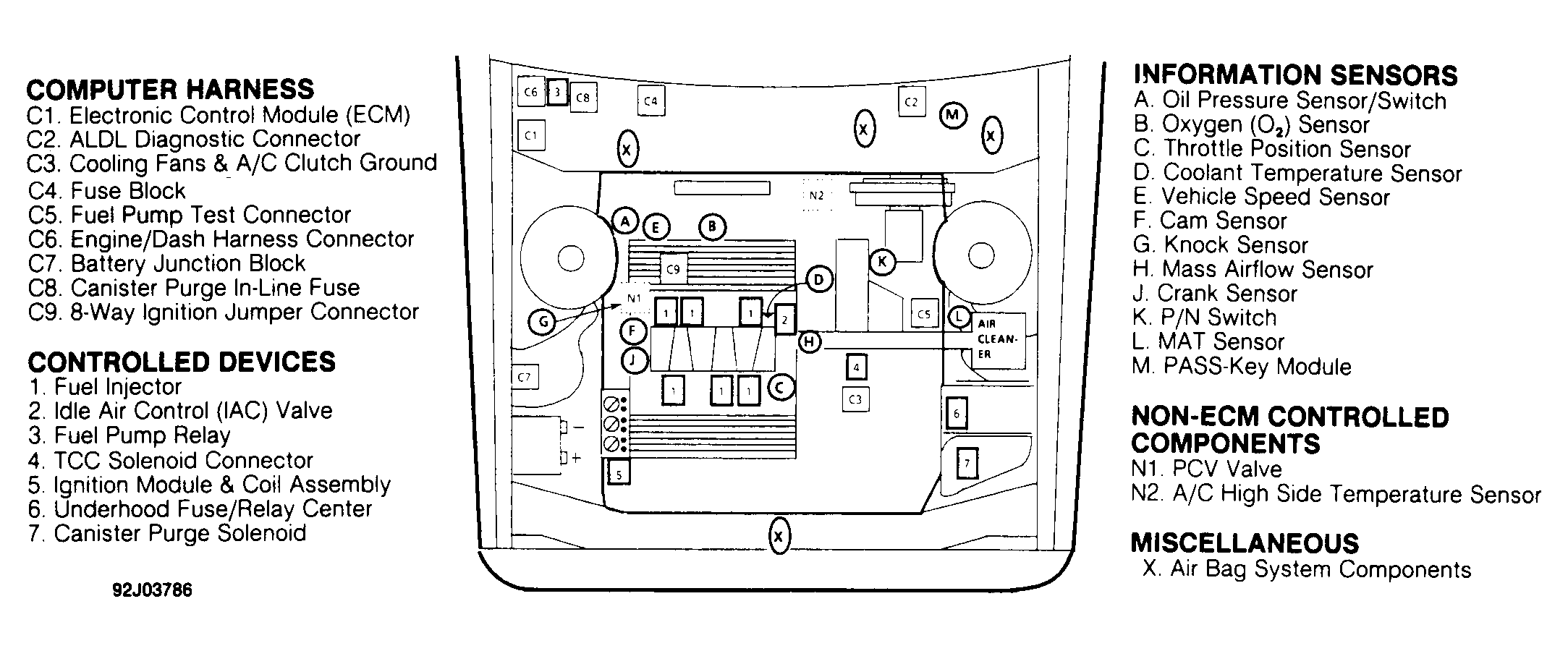

Fig 2: Component Locations, 3.8L VIN L - Toronado & Trofeo
Courtesy of GENERAL MOTORS CORP.
Fig 3: Component Locations, 4.9L VIN B - Eldorado
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
