Test Description

  1. Checks that keyless entry receiver applies voltage to circuit No. 1455.
  2. Checks ground (circuit No. 150) to keyless entry receiver.

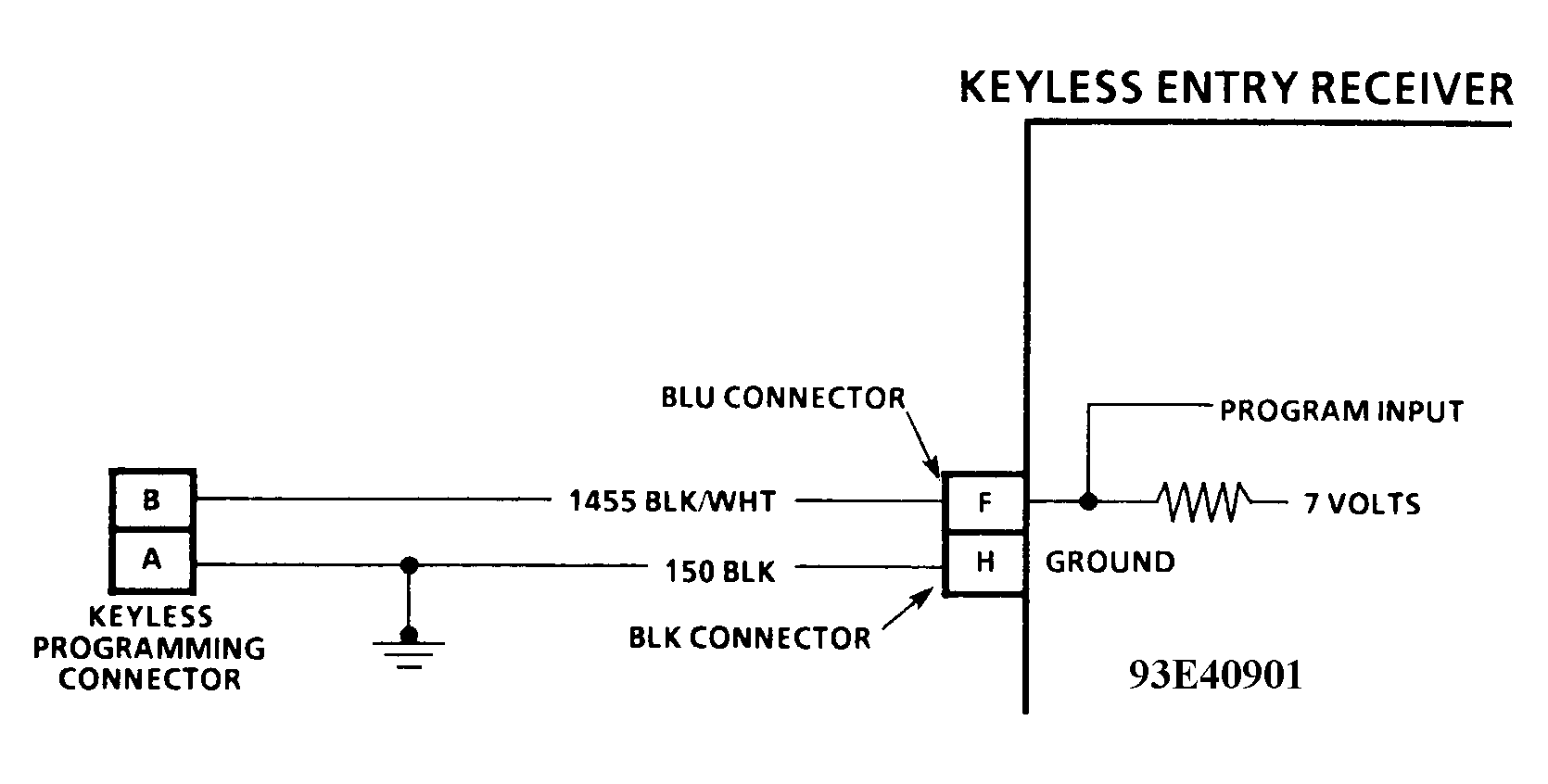

Fig 1: Keyless Entry Receiver/Transmitter Won't Program; Schematic
G93E40901Courtesy of GENERAL MOTORS CORP.

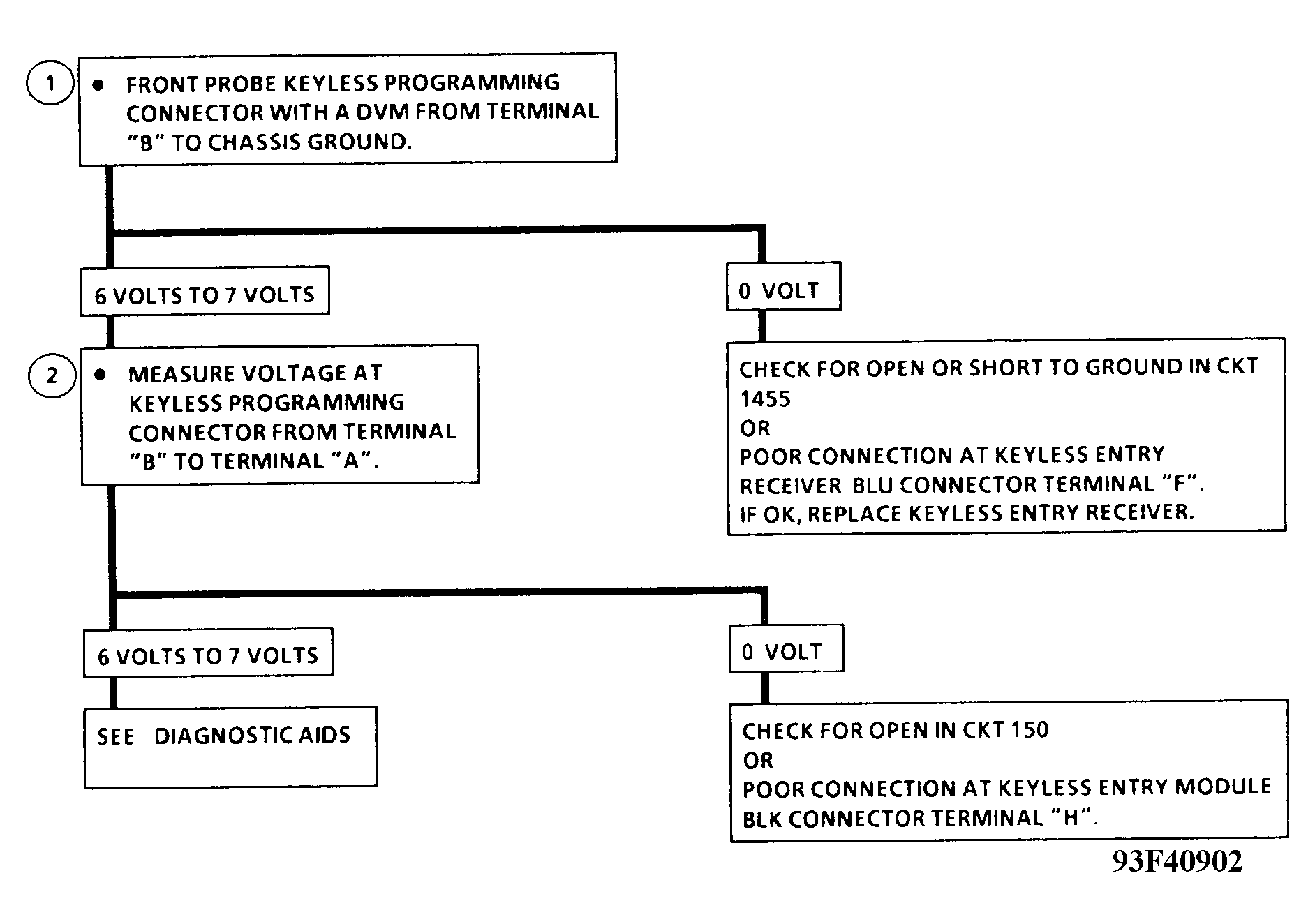

Fig 2: Keyless Entry Receiver/Transmitter Won't Program; Flow Chart
G93F40902Courtesy of GENERAL MOTORS CORP.
