Test Description

Determine a keyless entry system fault or trunk lid release system fault.
Tests transmission position switch. With transmission in Park, transmission position switch should be closed, applying voltage to circuit No. 275.

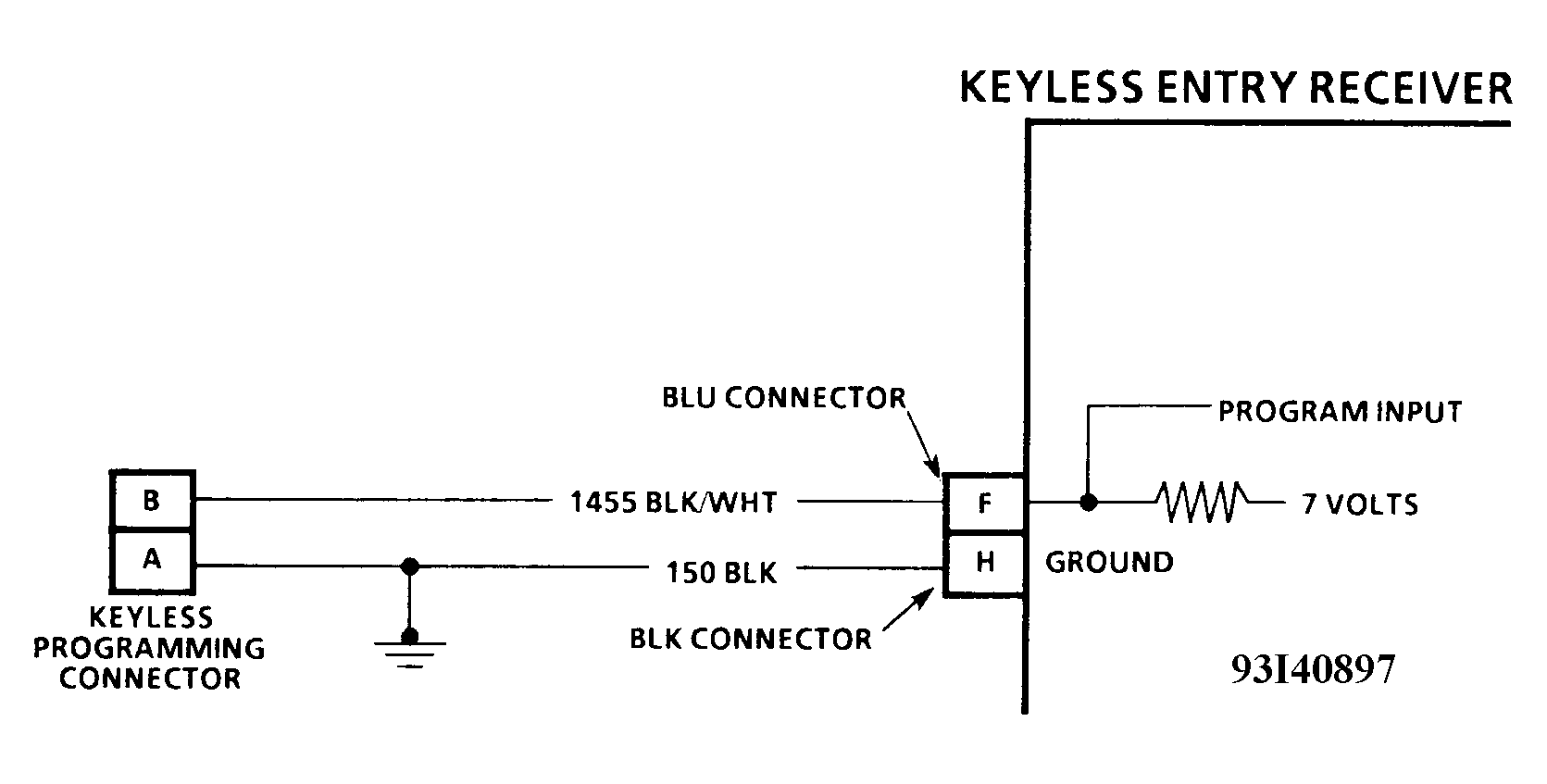

Fig 1: Trunk Lid Release Inoperative; Schematic

Courtesy of GENERAL MOTORS CORP.

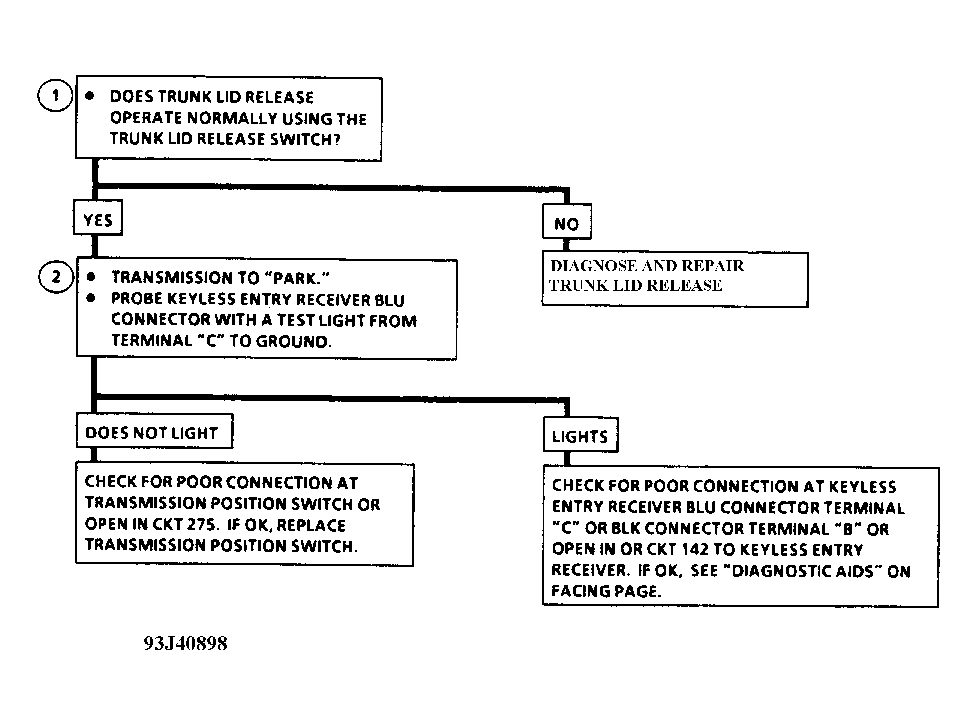

Fig 2: Trunk Lid Release Inoperative; Flow Chart

Courtesy of GENERAL MOTORS CORP.
