Removal & Installation: Armrest: Installation

  1. Install armrest (10) to armrest plate hanger (11). See Fig 1 .
  2. Install screws (9).

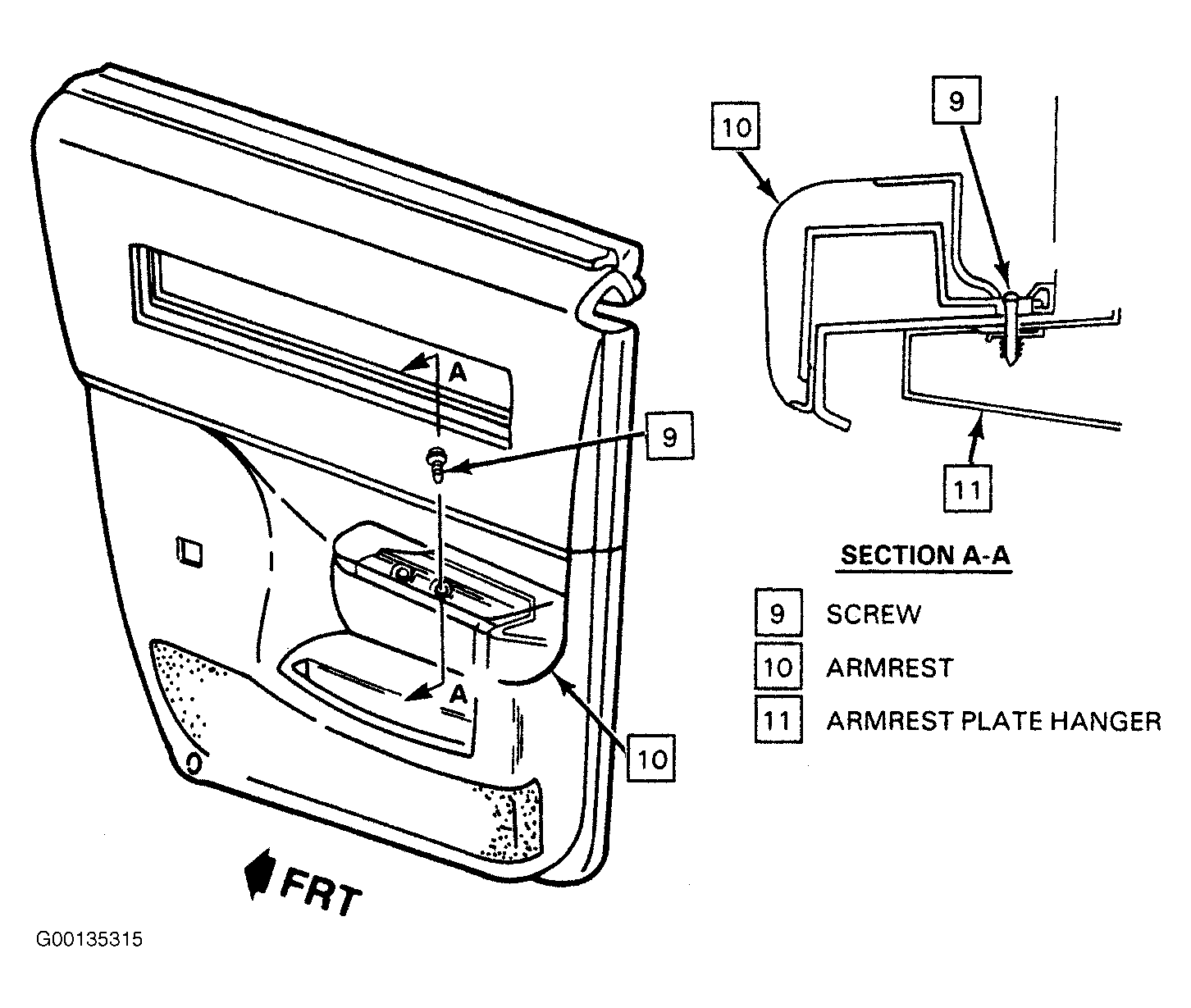

Fig 1: Removing & Installing Armrest
G00135315Courtesy of GENERAL MOTORS CORP.
