Door Trim Panel: Installation
- Install courtesy lamp assembly or courtesy lamp cover (if equipped) by connecting electrical connector and applying pressure to fully seat clips to door trim panel (2). See Fig 3
.
- Pull electrical connectors through respective cutouts in door trim panel.

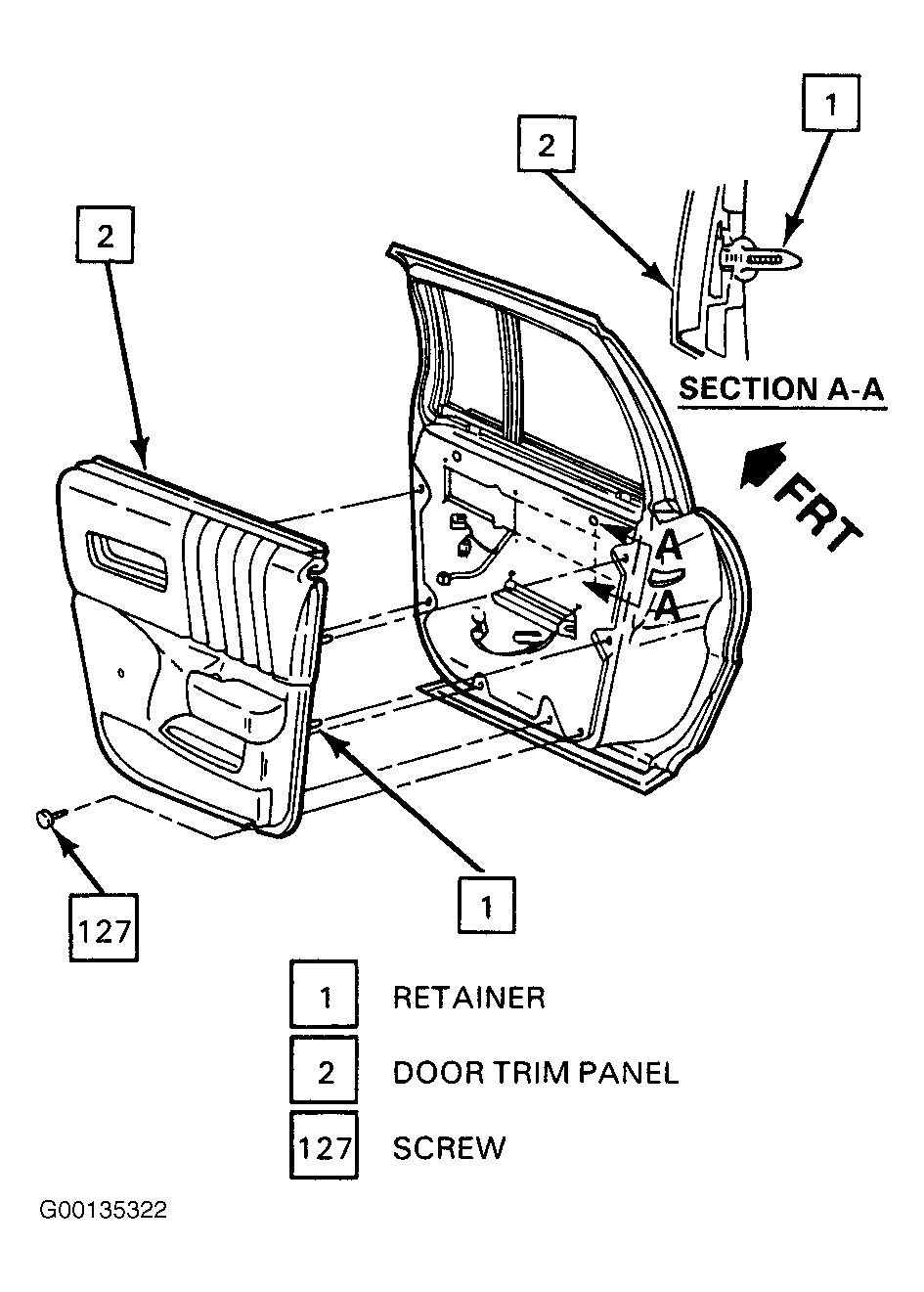

- Replace any damaged retainers on door trim panel and install door trim panel, using a clean rubber mallet to seat retainers (1).
- On front door panel, install screw between armrest and map pocket opening. On rear door, install screw below rear edge of carpeted section. Tighten screw to specification. See TORQUE SPECIFICATIONS
.
- Install armrest.
- Install inside pull handle.
- Install screws underneath pull handle.
- Connect power door lock connector to power door lock switch, if equipped.

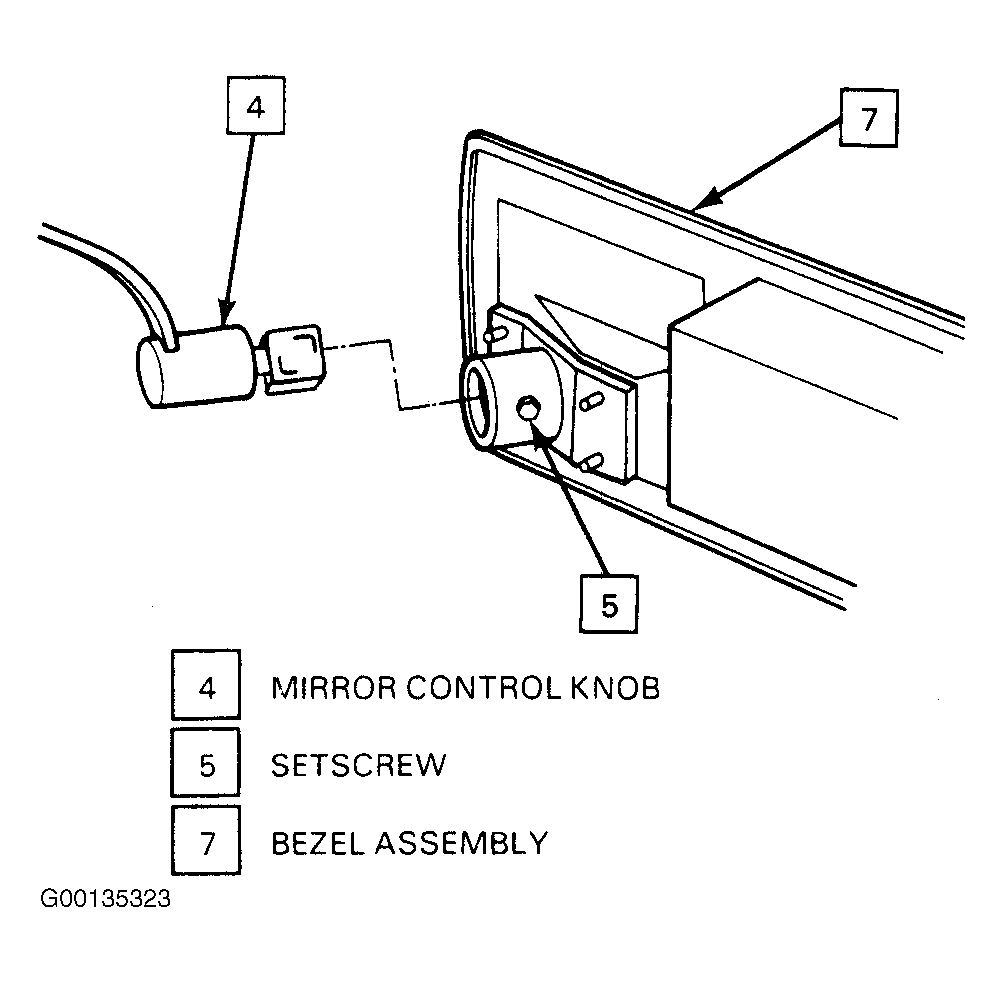

- Tighten setscrew (5) connecting mirror control knob to bezel assembly (7) and snap bezel assembly to door trim panel. See Fig 2
.

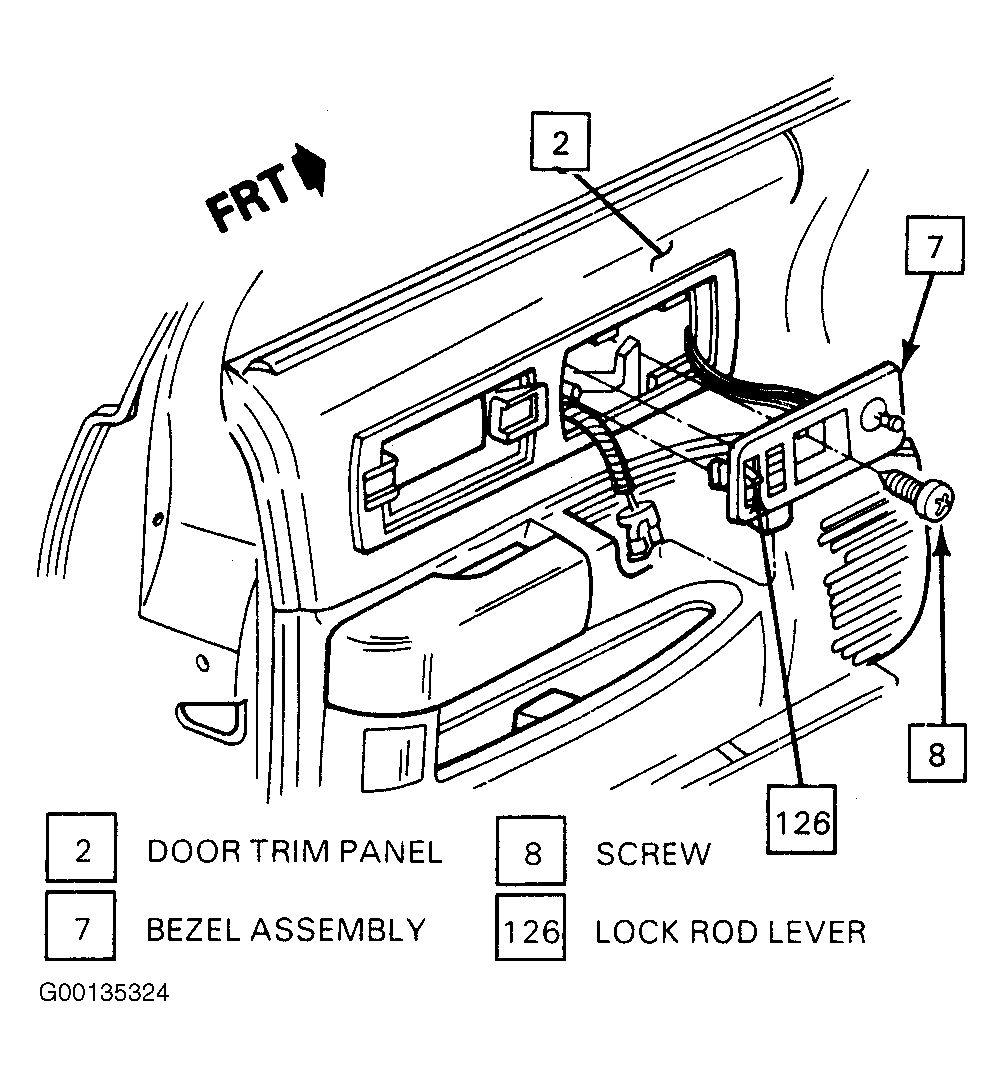

- Verify lock rod is connected to manual lock rod lever (126). See Fig 1
.
- Install side window switch floodlamp (if equipped) by twisting 90 degrees to secure.
- Install and tighten screw (8) connecting bezel assembly (7) to door trim panel (2). See TORQUE SPECIFICATIONS
.
- Connect power seat (if equipped) and power window connector to armrest switch plate (3). See Figure
.
- Snap armrest switch plate (3) in to door panel to secure.
- Connect negative battery cable.
