Pull Handle: Installation

  1. Install pull handle (61). See Fig 1 .
  2. Install pins (60) to back of door trim panel (2).Hook hinge spring (59) over tab to back of door trim panel (2). See Fig 1 .
  3. Install door trim panel.

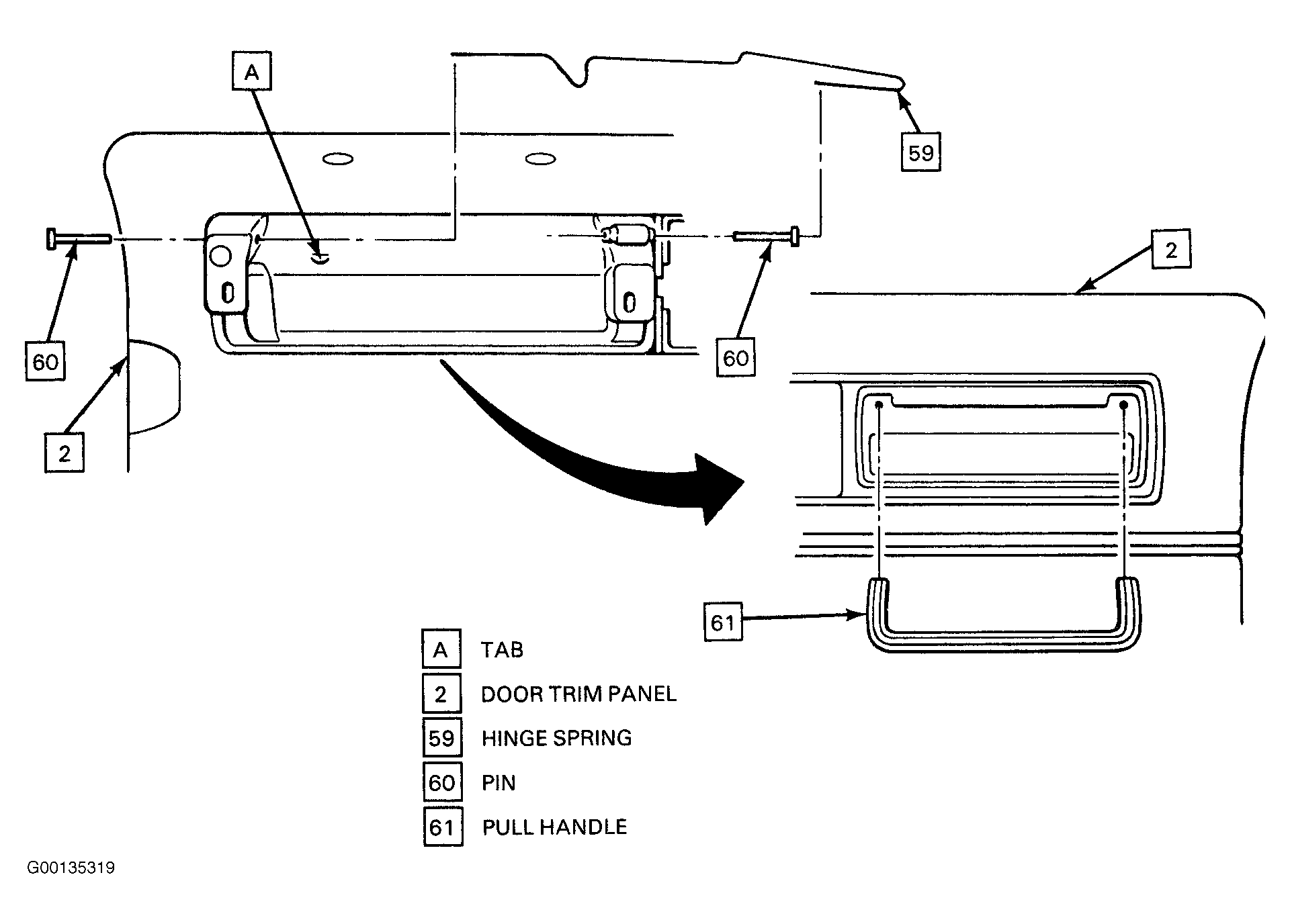

Fig 1: Removing & Installing Pull Handle
G00135319Courtesy of GENERAL MOTORS CORP.
