Radio Speaker: Installation

  1. Install bolts (49) connecting speaker housing (50) to door inner panel. See Fig 1 .
  2. Install bolts (54) connecting speaker assembly (51) to speaker housing (50). Connect speaker connector (52) to wiring harness connector (53). See Fig 1 .
  3. Install rosebud clip on speaker connector (52) through water deflector (38) to front door inner panel. See Fig 1 .
  4. Install door trim panel. See DOOR TRIM PANEL  .

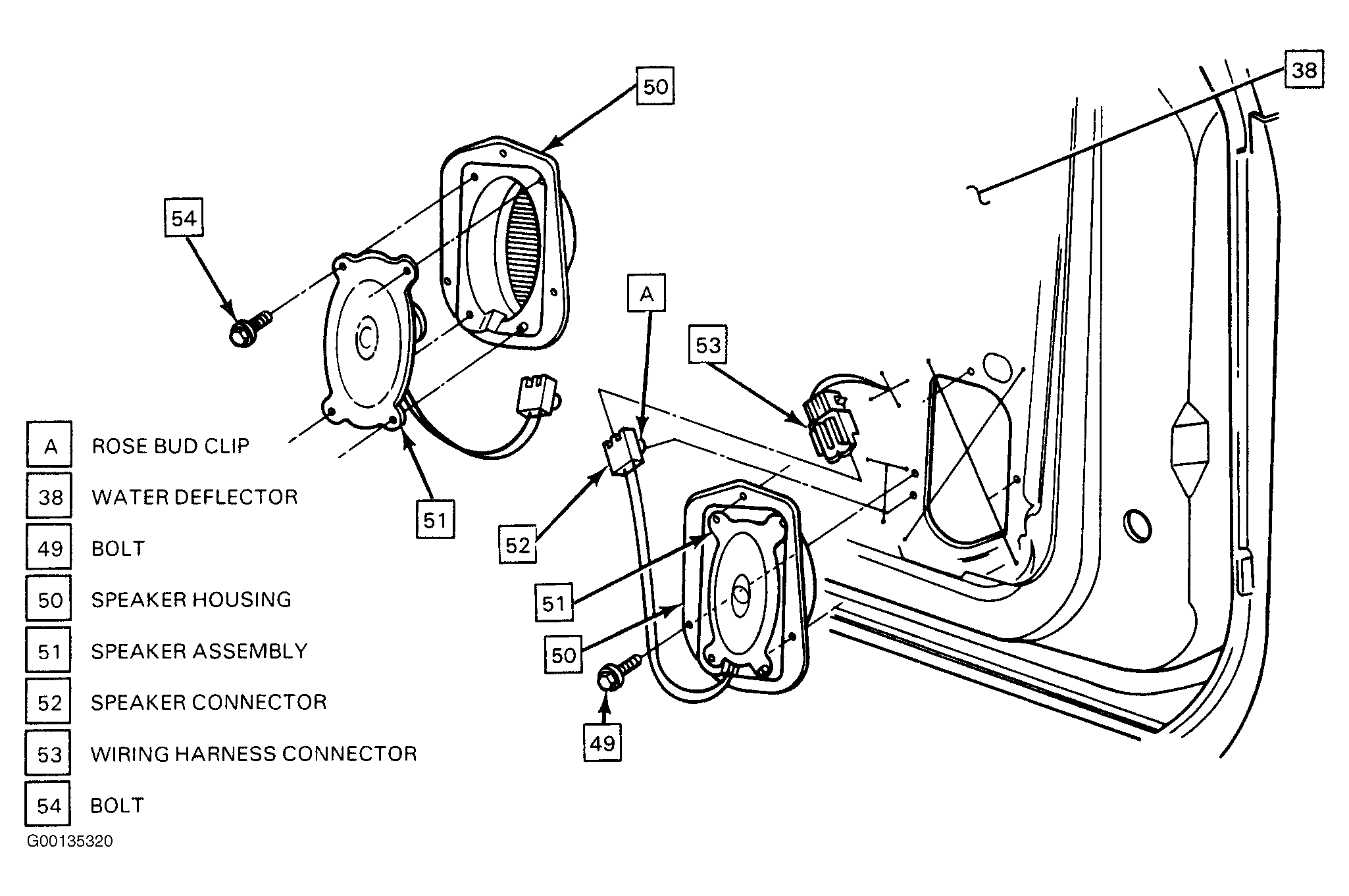

Fig 1: Removing & Installing Door Radio Speaker
G00135320Courtesy of GENERAL MOTORS CORP.
