Chart 1: All Power Windows Inoperative

For testing procedure, see Fig 1 .

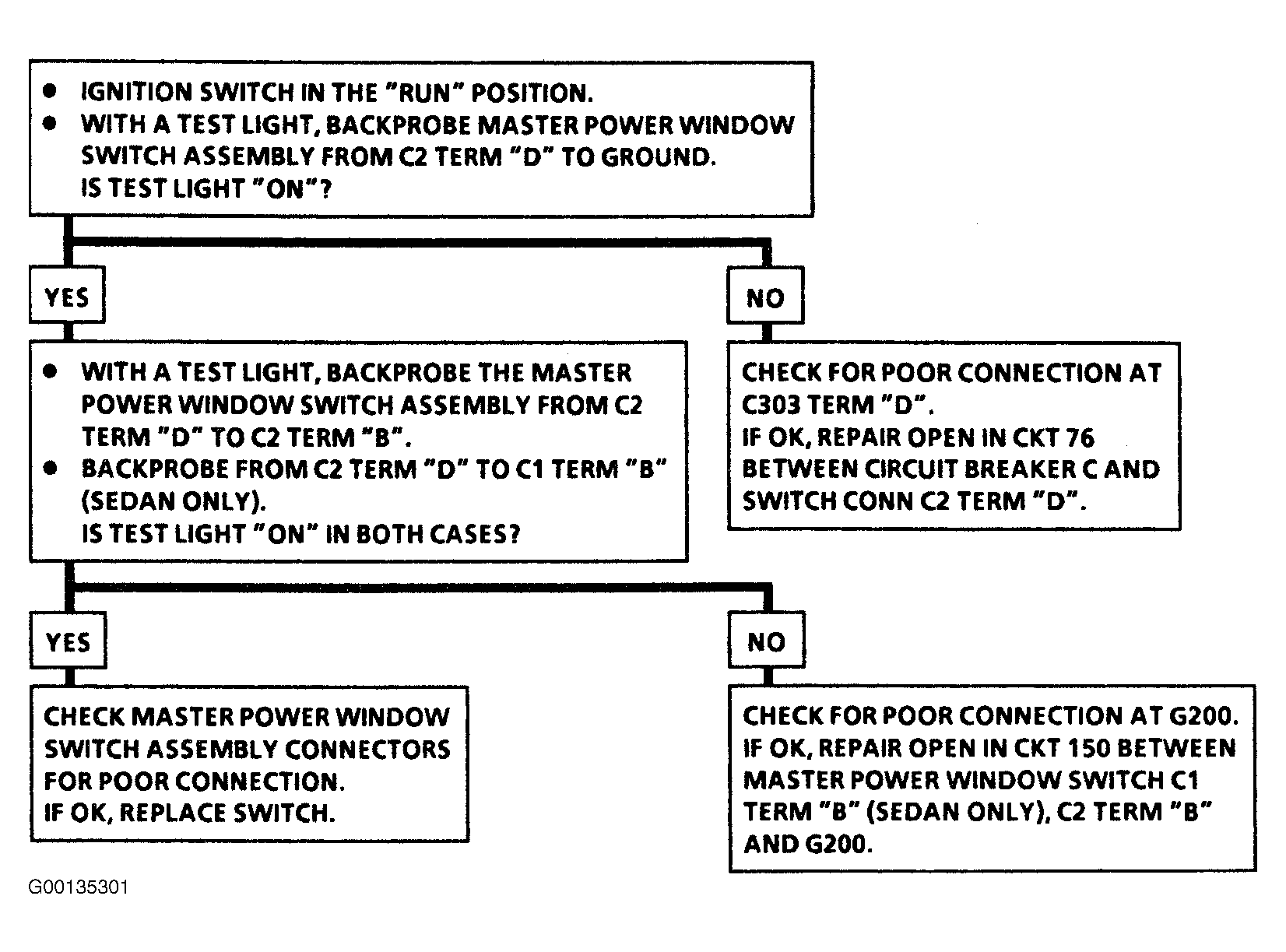

Fig 1: Chart 1: All Power Windows Inoperative
G00135301Courtesy of GENERAL MOTORS CORP.
